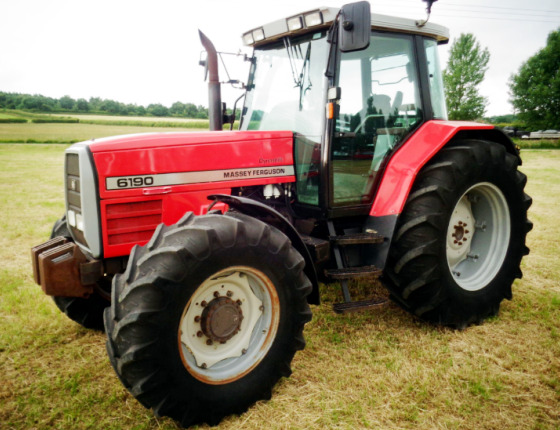

Massey Ferguson 6190 Tractor
The
Massey Ferguson 6190 is a 4WD (4x4) row-crop tractor. This model was
manufactured from 1997 to 1999. The Massey Ferguson 6190 tractor is powered by
Perkins 1006-6T 4-cycle 6-cylinder direct injection turbocharged diesel engine.
A 365 cubic inches (6 L) engine has a cylinder bore of 3.94" (100 mm), piston
stroke of 5.00" (127 mm), rated power of 129 hp (95.6 kW), and 530 Nm (393
lb-ft) of peak torque at 1400 rev/min.
The Massey Ferguson 6190 is fitted with two types of transmission. 1st
type: Speedshift two-speed powershift transmission with 16 forward and
16 reverse gears. 2nd type: Dynashift four-speed powershift transmission
with 32 forward and 32 reverse gears. The maximum forward and reverse
speed - 23.3 mph (37.4 km/h).
The hydraulics can be of two types. The open center hydraulic system
used a two-stage gear pump with fluid flow rate of 15 gallons per minute
(57 liters per minute). The closed center hydraulic system used a
variable displacement pump with fluid flow rate of 27 gallons per minute
(105 liters per minute). The hydraulic pressure is 200 bar (2900 psi).
The tractor was equipped with a hydrostatic steering system, telescopic
steering column, oil immersed single disc brakes, 16.9x28 front tires,
and 20.8x38 rear tires. The wheel base is 105.5" (2679 mm).
| Engine Model |
Perkins 1006-6T |
| Engine Type |
4 Cycle, six-cylinder turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
365 (6.00) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
129.1 (95.6) |
| Rated Engine Speed, rpm |
2200-2310 |
| Idling Speed, rpm |
1000 |
| Maximum Torque, Nm (ft-lbs) |
530 (393) |
| Torque Speed, rpm |
1400 |
| Compression |
16.0:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Lubrication System |
Gear type pump |
| Oil Filter |
External canister type |
| Cooling System |
Centrifugal pump pressurised radiator |
| Air Cleaner |
2-Stage, dry element |
| Valves |
Overhead, push-rod operated |
| Valve Clearance (Inlet), in (mm) |
0.008 (0.20) |
| Valve Clearance (Exhaust), in (mm) |
0.018 (0.45) |
| Fuel Tank Capacity, gal (L) |
42.3 (160.0) |
| Oil Capacity, qts (L) |
16.6 (15.6) |
| Coolant Capacity, qts (L) |
30.2 (28.5) |
| Electrical System Rating, Volts |
12 |
| PTO Horsepower, hp (kW) |
119.2 (88.3) |
| PTO Clutch |
Hydraulic |
| Rear PTO Operational Type |
Independent |
| Rear PTO Speed, rpm |
540/1000 |
| Rear PTO / Engine Speed, rpm |
540/1980, 1000/2000 |
| Rear PTO Control |
Lever in the Cabine |
| Front PTO Operational Type |
Independent |
| Front PTO Speed, rpm |
1000 |
| Front PTO / Engine Speed, rpm |
1000/2040 |
| Front PTO Control |
Knob in the Cabine |
| Transmission Type |
Speedshift |
| Gearbox Type |
16F/16R, 2-speed powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
16 |
| Clutch Type |
Wet disc |
| Creeper |
Optional |
| Oil Capacity, qts (L) |
74.2 (70.0) |
| Maximum Forward Speed, mph (kph) |
18.3 (29.5) |
| Maximum Reverse Speed, mph (kph) |
18.3 (29.5) |
| Transmission Type |
Dynashift |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Clutch Type |
Wet disc |
| Reverse Shuttle |
Sinchronized |
| Oil Capacity, qts (L) |
74.2 (70.0) |
| Maximum Forward Speed, mph (kph) |
23.3 (37.4) |
| Maximum Reverse Speed, mph (kph) |
23.3 (37.4) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Column |
Telescopic |
| Steering Cylinder |
One, double action |
| Service Brake |
Oil immersed single disc |
| Front Tire Size |
16.9x28 |
| Rear Tire Size |
20.8x38 |
| Hydraulic System Type (Std) |
Open center |
| Implement Pump Type |
Two-stage gear pump |
| Implement Pump Flow, gpm (Lpm) |
15.0 (57.0) |
| Hydraulic Pressure, Bar (psi) |
200 (2900) |
| Steering Pump Flow, gpm (Lpm) |
8.6 (32.7) |
| Steering Pressure, Bar (psi) |
17 (246.5) |
| Hydraulic System Type (Opt) |
Closed center |
| Implement Pump Type |
Variable displacement pump |
| Implement Pump Flow, gpm (Lpm) |
27.7 (105.0) |
| Hydraulic Pressure, Bar (psi) |
200 (2900) |
| 3-Point Hitch Category |
2/3 |
| Standard Lift Capacity 24" (610 mm) behind pin, lb (kg) |
12885 (5846) |
| Standard Lift Capacity at lift pin, lb (kg) |
16390 (7436) |
| Wheelbase, in (mm) |
105.5 (2679) |
| Overall Length, in (mm) |
195 (4952) |
| Height (Cab), in (mm) |
112.9 (2867) |
| Height (Steering Wheel), in (mm) |
84.6 (2148) |
| Width, in (mm) |
108.7 (2760) |
| Ground Clearance, in (mm) |
18.9 (480) |
| Turning Radius, in (mm) |
195.3 (4940) |
| Weight, lb (kg) |
11960 (5420) |
