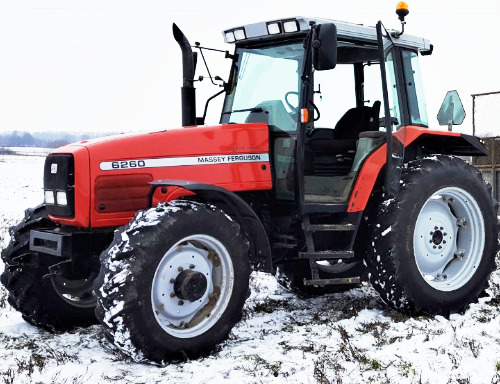

Massey Ferguson 6260 Tractor
The
Massey Ferguson 6260 is a 2WD or 4WD row-crop tractor. This model was
manufactured from 1999 to 2003. The Massey Ferguson 6260 powerline components: a
365 cu.in (6L) Perkins 1006-60 six-cylinder direct injection naturally aspirated
diesel engine with a rated power of 114 hp (85 kW), and 32x32 Dynashift 4-speed
powershift transmission or 32x32 Dyna Shuttle transmission.
The engine has a lubrication system with gear type pump, cooling system
with centrifugal pump pressurised radiator, and air cleaner with
two-stage dry element. Max. forward speed - 25 mph (40 km/h), max.
reverse speed - 25 mph (40 km/h). The open center hydraulic system has a
pump capacity of 15 gpm (57 lpm). The closed center pressure flow
compensated has a pump capacity of 29.2 gpm (110 lpm). The hydraulic
pressure is 200 bar (2900 psi).
The Massey Ferguson 6260 is equipped with a hydrostatic steering system,
telescopic steering column, independent hydraulic wet disc brakes,
14.9R28 front tires, and 18.4R38 rear tires. The wheelbase is 106.5"
(2700 mm). The tractor is compatible with a Massey Ferguson 1080
front-end loader with lift capacity to full height of 6400 lbs (2903 kg)
and bucket width of 96" (2430 mm).
| Engine Model |
Perkins 1006-60 |
| Engine Type |
4 Cycle, six-cylinder direct injection diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
365 (5.987) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
114.0 (85.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
396 (293) |
| Torque Speed, rpm |
1400 |
| Compression |
16.0:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Lubrication System |
Gear type pump |
| Oil Filter |
External canister type |
| Cooling System |
Centrifugal pump pressurised radiator |
| Air Cleaner |
2-Stage, dry element |
| Fuel Tank Capacity, gal (L) |
42.3 (160.0) |
| Oil Capacity, qts (L) |
15.7 (14.8) |
| Coolant Capacity, qts (L) |
26.5 (25.0) |
| Electrical System Rating, Volts |
12 |
| Rear PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
103.6 (76.7) |
| PTO Clutch |
Hydraulic |
| Rear PTO Speed, rpm |
540/1000 |
| Rear PTO / Engine Speed, rpm |
540/1980, 1000/2000 |
| Transmission Type |
Dynashift |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Clutch Type |
Wet type |
| Maximum Forward Speed, mph (kph) |
23.3 (37.4) |
| Maximum Reverse Speed, mph (kph) |
23.3 (37.4) |
| Transmission Type |
Dyna Shuttle |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Maximum Forward Speed, mph (kph) |
25.0 (40.0) |
| Maximum Reverse Speed, mph (kph) |
25.0 (40.0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Column |
Telescopic |
| Steering Cylinder |
One, double acting |
| Service Brake |
Independent hydraulic wet discs |
| Front Tire Size |
14.9R28 |
| Rear Tire Size |
18.4R38 |
| Hydraulic System Type (Std) |
Open center |
| Hydraulic System Type (Opt) |
Closed center pressure flow compensated |
| Implement Pump Flow (Open Center), gpm (Lpm) |
15.0 (57.0) |
| Implement Pump Flow (Closed Center), gpm (Lpm) |
29.2 (110.0) |
| Hydraulic Pressure, Bar (psi) |
200 (2900) |
| Steering Pump Flow, gpm (Lpm) |
8.6 (32.7) |
| Hydraulic Fluid Capacity, gal (L) |
18.0 (68.0) |
| 3-Point Hitch Category |
2 |
| Standard Rear Lift Capacity, lb (kg) |
12870 (5850) |
| Wheelbase, in (mm) |
106.5 (2700) |
| Overall Length, in (mm) |
173 (4390) |
| Height (Cab), in (mm) |
111 (2820) |
| Width, in (mm) |
106.3 (2200) |
| Ground Clearance, in (mm) |
17 (430) |
| Turning Radius, in (mm) |
190 (4800) |
| Weight, lb (kg) |
10300 (4680) |
