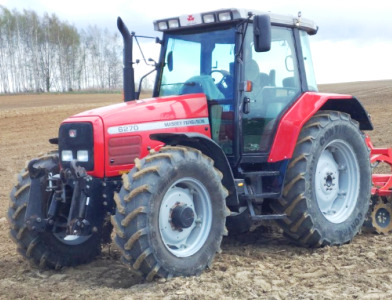

Massey Ferguson 6270 Tractor
The
Massey Ferguson 6270 row-crop tractor was manufactured from 1999 to 2003. The
Massey Ferguson 6270 tractor is powered by 365 cubic inches (6L) Perkins
1006-60T 4-cycle 6-cylinder direct injection turbocharged diesel engine with a
rated power of 120 hp (89.2 kW) and 463 Nm (343 lb-ft) of maximum torque at 1200
rpm.
The MF 6270 is fitted with two transmission options: Dyna Shift
transmission with 32 forward and 32 reverse gear, or Dyna Shuttle
transmission with 32 forward and 32 reverse gear. The maximum travel
speed (forward and reverse): 25 mph (40 km/h). The Massey Ferguson 6270
tractor has 2 types of hydraulic systems: open center with pump flow of
15 gpm (57 lpm), or closed center pressure flow compensated with pump
flow of 29.2 gpm (110 lpm). The hydraulic pressure is 200 bar (2900
psi).
The tractor is equipped with a hydrostatic steering system, Independent
hydraulic wet disc brakes, 10.0x16 (2WD) or 14.9x28 (4WD) front tires,
and 16.9x38 (2WD) or 18.4x38 (4WD) rear tires. The wheelbase is 106.5 in
(2700 mm). The MF 6270 is compatible with a Massey Ferguson 1080 loader
with lift capacity to maximum height of 6400 lbs (2905 kg).
| Engine Model |
Perkins 1006-60T |
| Engine Type |
4 Cycle, six-cylinder turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
365 (6.00) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
120.0 (89.5) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
463 (343) |
| Torque Speed, rpm |
1200 |
| Compression |
16.0:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Lubrication System |
Gear type pump |
| Oil Filter |
External canister type |
| Cooling System |
Centrifugal pump pressurised radiator |
| Air Cleaner |
2-Stage, dry element |
| Valves |
Overhead, push-rod operated |
| Valve Clearance (Inlet), in (mm) |
0.008 (0.20) |
| Valve Clearance (Exhaust), in (mm) |
0.018 (0.45) |
| Fuel Tank Capacity, gal (L) |
59.5 (225.0) |
| Oil Capacity, qts (L) |
16.6 (15.6) |
| Coolant Capacity, qts (L) |
30.2 (28.5) |
| Electrical System Rating, Volts |
12 |
| Rear PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
100.0 (74.6) |
| PTO Clutch Type |
Hydraulic |
| Rear PTO Speed, rpm |
540/1000 |
| Rear PTO / Engine Speed, rpm |
540/1980, 1000/2000 |
| Transmission Type |
Dynashift |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Clutch Type |
Wet type |
| Maximum Forward Speed, mph (kph) |
23.3 (37.4) |
| Maximum Reverse Speed, mph (kph) |
23.3 (37.4) |
| Transmission Type |
Dyna Shuttle |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Maximum Forward Speed, mph (kph) |
25.0 (40.0) |
| Maximum Reverse Speed, mph (kph) |
25.0 (40.0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Column |
Telescopic |
| Steering Cylinder |
One, double acting |
| Service Brake |
Independent hydraulic wet discs |
| Front Tire Size (2WD) |
10.0-16 |
| Rear Tire Size (2WD) |
16.9-38 |
| Front Tire Size (4WD) |
14.9-28 |
| Rear Tire Size (4WD) |
18.4-38 |
| Hydraulic System Type (Std) |
Open center |
| Hydraulic System Type (Opt) |
Closed center pressure flow compensated29.2 (110.0) |
| Implement Pump Flow (Open Center), gpm (Lpm) |
15.0 (57.0) |
| Implement Pump Flow (Closed Center), gpm (Lpm) |
29.2 (110.0) |
| Hydraulic Pressure, Bar (psi) |
200 (2900) |
| Steering Pump Flow, gpm (Lpm) |
8.6 (32.7) |
| Hydraulic Fluid Capacity, gal (L) |
18.0 (68.0) |
| Number of Standard Remote Valves |
Two |
| 3-Point Hitch Category |
2 |
| Standard Rear Lift Capacity, lb (kg) |
12870 (5850) |
| Wheelbase, in (mm) |
106.5 (2700) |
| Overall Length, in (mm) |
173 (4390) |
| Height (Cab), in (mm) |
111 (2820) |
| Width, in (mm) |
106.3 (2200) |
| Ground Clearance, in (mm) |
17 (430) |
| Turning Radius, in (mm) |
190 (4800) |
| Weight (2WD), lb (kg) |
9900 (4500) |
| Weight (4WD), lb (kg) |
10450 (4750) |
