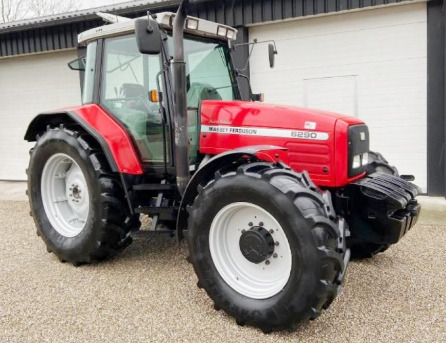

Massey Ferguson 6290 Tractor
The
Massey Ferguson 6290 is a 2WD or 4WD row crop tractor from 6200 series. This
model was manufactured between 1999 and 2003. The Massey Ferguson 6290 driveline
includes a 365 cu.in (6L) Perkins 1006-60T 6-cylinder direct injection turbo
diesel engine and Dynashift transmission with 32 forward and 32 reverse gear, or
Dyna shuttle transmission with 32 forward and 32 reverse gear.
The max travel speed (forward/reverse): 25 mph (40 kph). The engine has
a cylinder bore of 3.94" (100 mm), piston stroke of 5.00" (127 mm),
rated power of 142 hp (106 kW), and 547 Nm (405 lb-ft) of peak torque at
1400 rpm. The open center hydraulic system has a pump flow of 15 gpm (57
lpm). The closed center pressure flow compensated hydraulic system has a
pump flow of 29.2 gpm (110 lpm).
The main relief pressure is 200 bar (2900 psi). The 2-wheel drive models
are equipped with 10.0x16 front tyres and 16.9x38 rear tyres. The
16.9x28 front tyres and 20.8x38 rear tyres fit 4-wheel drive tractors.
The wheel base is 106.5" (2700 mm). The Massey Ferguson 6290 is
compatible with a MF 1080 loader with lift capacity to full height of
6400 lbs (2905 kg).
| Engine Model |
Perkins 1006-60T |
| Engine Type |
4 Stroke, 6-cylinder turbocharged diesel |
| Number of Cylinders |
Six |
| Displacement, cu in (L) |
365 (5.99) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
142.0 (106.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
547 (405) |
| Torque Speed, rpm |
1400 |
| Compression |
16.0:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Lubrication System |
Gear type pump |
| Oil Filter |
External canister type |
| Cooling System |
Centrifugal pump pressurised radiator |
| Air Cleaner |
2-Stage, dry element |
| Valves |
Overhead, push-rod operated |
| Fuel Tank Capacity, gal (L) |
59.0 (223.0) |
| Oil Capacity, qts (L) |
16.6 (15.6) |
| Coolant Capacity, qts (L) |
30.2 (28.5) |
| Electrical System Rating, Volts |
12 |
| Rear PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
119.4 (89.0) |
| PTO Clutch Type |
Hydraulic |
| Rear PTO Speed, rpm |
540/1000 |
| Rear PTO / Engine Speed, rpm |
540/1980, 1000/2000 |
| Transmission Type |
Dynashift |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Clutch Type |
Wet type |
| Maximum Forward Speed, mph (kph) |
23.3 (37.4) |
| Maximum Reverse Speed, mph (kph) |
23.3 (37.4) |
| Transmission Type |
Dyna Shuttle |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Maximum Forward Speed, mph (kph) |
25.0 (40.0) |
| Maximum Reverse Speed, mph (kph) |
25.0 (40.0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Column |
Telescopic |
| Steering Cylinder |
One, double acting |
| Service Brake |
Independent hydraulic wet discs |
| Front Tire Size (2WD) |
10.0x16 |
| Rear Tire Size (2WD) |
16.9x38 |
| Front Tire Size (4WD) |
16.9x28 |
| Rear Tire Size (4WD) |
20.8x38 |
| Hydraulic System Type (Std) |
Open center |
| Hydraulic System Type (Opt) |
Closed center pressure flow compensated |
| Implement Pump Flow (Open Center), gpm (Lpm) |
15.0 (57.0) |
| Implement Pump Flow (Closed Center), gpm (Lpm) |
29.2 (110.0) |
| Hydraulic Pressure, Bar (psi) |
200 (2900) |
| Steering Pump Flow, gpm (Lpm) |
8.6 (32.7) |
| Hydraulic Fluid Capacity, gal (L) |
18.0 (68.0) |
| Number of Standard Remote Valves |
2 |
| 3-Point Hitch Category |
2 |
| Standard Rear Lift Capacity, lb (kg) |
15620 (7100) |
| Wheelbase, in (mm) |
106.5 (2700) |
| Overall Length, in (mm) |
185 (4690) |
| Height (Cab), in (mm) |
122.2 (3100) |
| Width, in (mm) |
106.3 (2200) |
| Ground Clearance, in (mm) |
17 (430) |
| Turning Radius, in (mm) |
197 (5000) |
| Weight (2WD), lb (kg) |
10630 (4820) |
| Weight (4WD), lb (kg) |
11570 (5250) |
