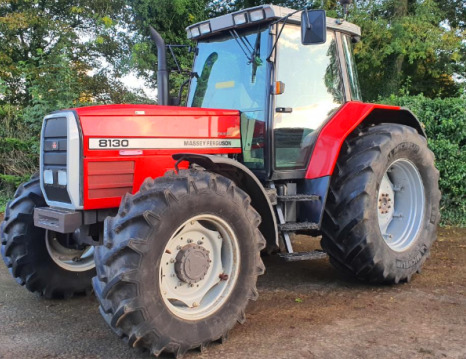

Massey Ferguson 8130 Tractor
The
Massey Ferguson 8130 is a row-crop tractor from 8100 series. This model was
manufactured between 1995 and 1999. The Massey Ferguson 8130 tractor is equipped
with a Perkins 1006-6 4-stroke 6-cylinder direct injection liquid-cooled
turbocharged diesel engine. A 365 cubic inches (6 L) engine has a cylinder bore
of 3.94" (100 mm), piston stroke of 5" (127 mm), rated power of 156 hp (115.6
kW), and 625 Nm (464 lb-ft) of max torque at 1400 rev/min.
The Dynashift transmission consists of a wet clutch with six discs and
4-speed powershift gearbox with 32 forward and 32 reverse gears. The
maximum travel speed (forward and reverse): 24.5 mph (39.4 km/h). The
closed center hydraulic system with flow and pressure control has a
variable displacement pump with rated capacity of 42.3 gpm (160 lpm).
The open center hydraulic system has a two-stage gear pump with flow
rate of 5.5 gpm (21 lpm) using 1st stage and 14.2 gpm (54 lpm) using 2nd
stage.
The hydraulic system pressure is 180 bar (2600 psi) for closed center
and 185 bar (2685 psi) for open center. The Massey Ferguson 8130 was
equipped with a hydrostatic power steering, wet disc brakes, 11.0x16
(2WD) or 14.9x28 (4WD) front tires, and 16.9x28 (2WD) or 20.8x38 (4WD)
rear tires. The wheel base is 110" (2775 mm) for 2-wheel drive models
and 109" (2760 mm) for 4-wheel drive models.
| Engine Model |
Perkins 1006-6 |
| Engine Type |
4-Stroke, six-cylinder liquid-cooled turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
365 (6.00) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
156.0 (115.6) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
625 (464) |
| Torque Speed, rpm |
1400 |
| Idling Speed, rpm |
1000 |
| Lubrication |
Gear type pump-strainer and interchangeable external cartridge filters |
| Oil Filter |
External cartridge |
| Valves |
Overhead, pushrod operated |
| Cooling system |
Centrifugal pump pressurised radiator |
| Air Filter |
Two-stage, dry filter element |
| Valve clearance (Inlet), in (mm) |
0.008 (0.20) |
| Valve clearance (Exhaust), in (mm) |
0.018 (0.45) |
| Fuel Tank Capacity, gal (L) |
58.8 (226.0) |
| Oil Capacity, qts (L) |
16.5 (15.6) |
| Coolant Capacity, qts (L) |
30.2 (28.5) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
120 |
| PTO Horsepower, hp (kW) |
139.1 (103.0) |
| PTO Clutch |
Hydraulic |
| Rear PTO Operational Type |
Independent |
| Rear PTO Speed, rpm |
540/750/1000 |
| Rear PTO / Engine Speed, rpm |
540/1990, 750/2000, 1000/2090 |
| Front PTO Operational Type |
Independent |
| Front PTO Speed, rpm |
1000 |
| Front PTO / Engine Speed, rpm |
1000/2040 |
| Transmission Type |
Dynashift |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Clutch Type |
Wet type |
| Number of Disc |
6 |
| Clutch Disc Diameter, in (mm) |
9.06 (230) |
| Reverse Shuttle |
Sinchronized |
| Oil Capacity, gal (L) |
23.2 (87.5) |
| Maximum Forward Speed, mph (kph) |
24.5 (39.4) |
| Maximum Reverse Speed, mph (kph) |
24.5 (39.4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Steering Column |
Telescopic or fixed tilting |
| Steering Cylinder |
One, double action |
| Service Brake Type |
Oil-immersed disc type |
| Service Brake Disc Diameter, in (mm) |
13.5 (343) |
| Service Brake Operation |
Hydraulic, using two master cylinders |
| Parking Brake |
Operates on the rear axle pinion |
| Front Wheels |
Adjustable steel rims |
| Rear Wheels |
Fixed or adjustable steel rims |
| Front Tire Size (2WD) |
11.0-16 |
| Rear Tire Size (2WD) |
16.9-28 |
| Front Tire Size (4WD) |
14.9-28 |
| Rear Tire Size (4WD) |
20.8-38 |
| Rear Track Width, in (mm) |
77.6 (1970) |
| Hydraulic System Type (Std) |
Closed center with flow and pressure control |
| Implement Pump Type |
Variable displacement pump |
| Implement Pump Flow, gpm (Lpm) |
42.3 (160.0) |
| High Pressure System Flow, gpm (Lpm) |
29.1 (110.0) |
| Hydraulic Pressure, Bar (psi) |
180 (2600) |
| Hydraulic System Type (Opt) |
Open center |
| Implement Pump Type |
Two-stage gear pump |
| Hydraulic Flow (1st Stage), gpm (Lpm) |
5.5 (21.0) |
| Hydraulic Flow (2st Stage), gpm (Lpm) |
14.2 (54.0) |
| Hydraulic Pressure, Bar (psi) |
185 (2685) |
| 3-Point Hitch Category |
2/3 |
| Standard Lift Capacity at lift pin, lb (kg) |
13875 (6290) |
| Wheelbase (2WD), in (mm) |
110 (2775) |
| Wheelbase (4WD), in (mm) |
109 (2760) |
| Length (2WD), in (mm) |
183.8 (4640) |
| Length (4WD), in (mm) |
184 (4645) |
| Height (Cab), in (mm) |
115.9 (2940) |
| Overall Width (2WD), in (mm) |
109.1 (2770) |
| Overall Width (4WD), in (mm) |
111.5 (2830) |
| Ground Clearance, in (mm) |
15.2 (385) |
| Turning Radius, in (mm) |
167.7 (4260) |
| Weight (2WD), lb (kg) |
12750 (5780) |
| Weight (4WD), lb (kg) |
13850 (6285) |
