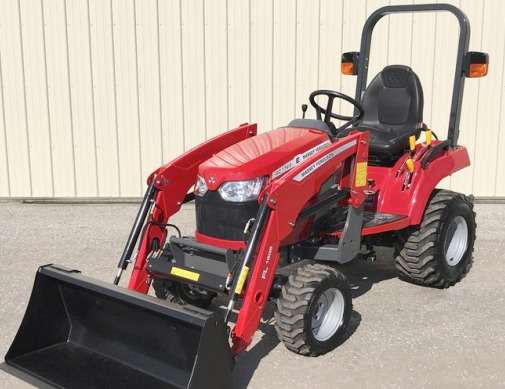

Massey Ferguson GC1723E Tractor
The
Massey Ferguson GC1723E sub-compact utility tractor is manufactured from 2019.
The components of Massey Ferguson GC1723E driveline system: a 68.5 cu.in (1.13
L) Iseki 3-cylinder indirect injection naturally aspirated water-cooled diesel
engine with a rated power of 22.8 hp (16.8 kW), and 2-range hydrostatic
transmission with infinite forward and reverse gears.
The maximum forward speed - 9.1 mph (14.7 km/h), max. reverse speed -
7.2 mph (11.5 km/h). The open center hydraulic system used a gear pump
with a rated capacity of 6.3 gpm (24 lpm). The rear lift capacity is
1190 lbs (540 kg) at lift pin.
The tractor is equipped with a hydrostatic steering system, wet disc
brakes, 18x8.50-10 front tires, and 26x12.00-12 rear tires. The wheel
base is 57.1" (1450 mm). Compatible attachments for MF GC1723E tractor:
54" or 60" mid-mount 3-blade mower deck with cutting height of 1.2-4.7"
(30-120 mm), 60" front-mount blade with height of 19" (480 mm), 50"
front-mount snowblower with hydraulic lift,
Massey Ferguson DL95 Loader
with lift capacity to max height of 870 lbs (394 kg), and Massey
Ferguson CB65 backhoe with digging depth of 78" (1980 mm).
| Engine Model |
Iseki |
| Engine Type |
Four stroke, 3-cylinder diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
68.5 (1.13) |
| Engine Bore, in (mm) |
3.08 (78.2) |
| Engine Stroke, in (mm) |
3.07 (78) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
22.8 (16.8) |
| Rated Engine Speed, rpm |
2600 |
| Maximum Torque, Nm |
65 |
| Torque Speed, rpm |
2000 |
| Fuel System |
In-Line Pump |
| Fuel Injection to combustion chamber |
Indirect |
| Fuel Tank Capacity, gal (L) |
6.6 (25.0) |
| Cooling System |
Liquid cooled |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Rear PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
18.3 (13.6) |
| Rear PTO Speeds, rpm |
540 |
| Rear PTO / Engine Speeds, rpm |
540/2532 |
| Rear PTO Shaft |
Fixed, 6 spline |
| Mid PTO Operational Type |
Independent |
| Mid PTO Speeds, rpm |
2000 |
| Mid PTO / Engine Speeds, rpm |
2000/2476 |
| Mid PTO Shaft |
15 spline |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Drive Control |
Dual foot pedal |
| Cruise Control |
Standard |
| Maximum Speed (Forward), mph (kph) |
9.1 (14.7) |
| Maximum Speed (Reverse), mph (kph) |
7.2 (11.5) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Service Brake |
Rear, Wet disc |
| Front Tire Size |
18x8.50-10 |
| Rear Tire Size |
26x12.00-12 |
| Hydraulic System Type |
Open centre |
| Implement Pump Flow, gpm (Lpm) |
6.3 (24.0) |
| Number of Standard Remote Valves |
1 |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Directional control |
| Stabilisers Type |
Turnbuckle |
| Link Ends Type |
Fixed |
| Standard Lift Capacity 24-in behind pin, lb (kg) |
660 (300) |
| Standard Lift Capacity at lift pin, lb (kg) |
1190 (540) |
| Wheelbase, in (mm) |
57.1 (1450) |
| Length, in (mm) |
97.6 (2480) |
| Height (ROPS), in (mm) |
72.8 (1850) |
| Overall Width, in (mm) |
46.6 (1185) |
| Ground Clearance, in (mm) |
6.7 (170) |
| Weight, lb (kg) |
1525 (690) |
| Loader Model |
MF 2400SL |
| Loader Type |
Quick Attach Standard |
| Maximum Digging Depth, in (mm) |
2.4 (60) |
| Maximum Reach, in (mm) |
47.4 (1200) |
| Maximum Lifting Height to Pin, in (mm) |
71.2 (1800) |
| Maximum Dumping Angle, deg |
45 |
| Maximum Dumping Clearance, in (mm) |
57.3 (1450) |
| Maximum Dumping Reach at Full Height, in (mm) |
18.2 (460) |
| Maximum Bucket Rollback Angle, deg |
40 |
| Breakout Force at 500 mm Forward, lb (kg) |
830 (376) |
| Weight, lb (kg) |
550 (250) |
| Mower Deck Model |
MF GC2300 |
| Mower Deck Type |
60-inch, Mid mount Drive-Over Rotary Deck |
| Discharge Type |
Side |
| Number of Blades |
3 (overlapping) |
| Gearbox Drive |
Shaft |
| Speed, rpm |
2000 |
| Blade Tip Speed, rpm |
18856 |
| Gauge Wheels |
4 |
| Anti-Scalp Rollers |
3 |
| Raise and Lower Actuation |
Via 3-Point Linkage |
| Height Control |
Manual Adjustment |
| Cutting Width, in (mm) |
60 (1524) |
| Overall Width, in (mm) |
75.1 (1900) |
| Overall Height, in (mm) |
20.7 (524) |
| Weight, lb (kg) |
440 (200) |
