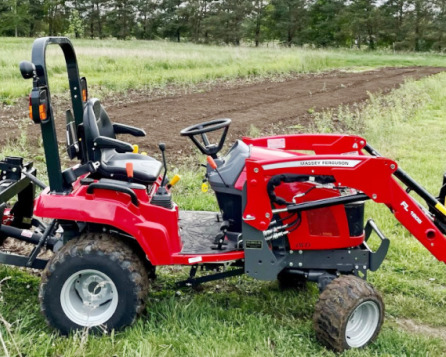

Massey Ferguson GC1725M Tractor
The
Massey Ferguson GC1725M sub-compact utility tractor from GC1700 series. This
model is manufactured from 2019. The Massey Ferguson GC1725M driveline includes
a 68.5 cu.in (1.1L) Iseki three-cylinder naturally aspirated diesel engine and
two-range hydrostatic transmission with infinite forward and reverse gears. The
engine has a cylinder bore of 3.08" (78.2 mm), piston stroke of 3.07" (78 mm),
rated power of 24 hp (17.9 kW), and 65 Nm (48 lb-ft) of peak torque at 2200 rpm.
Max travel speed (forward/reverse): 9.1 mph (14.7 km/h) and 7.2 mph
(11.5 km/h). The open center hydraulic system used a gear pump with a
rated capacity of 6.8 gal/min (26.3 l/min). The rear lift capacity is
660 lbs (300 kg) at 24" behind pin. The Massey Ferguson GC1725M is
equipped with a hydrostatic steering system, wet disc brakes, 18x8.50-10
front tires, and 26x12.00-12 rear tires. The wheelbase is 57.1" (1450
mm).
The tractor is compatible with the following attachments: 54" or 60"
mid-mount 3-blade mower deck with cutting height of 1.2-4.7" (30-120
mm), 60" front-mount blade with height of 19" (480 mm), 50" front-mount
snowblower with hydraulic lift, Massey Ferguson FL1805 loader with lift
capacity to max height of 922 lbs (418 kg), and Massey Ferguson CB65
backhoe with digging depth of 78" (1980 mm).
| Engine Model |
Iseki |
| Engine Type |
4 stroke, three-cylinder diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
68.5 (1.13) |
| Engine Bore, in (mm) |
3.08 (78.2) |
| Engine Stroke, in (mm) |
3.07 (78) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
24.0 (17.9) |
| Rated Engine Speed, rpm |
3000 |
| Maximum Torque, Nm |
65 |
| Torque Speed, rpm |
2200 |
| Fuel System |
In-Line Pump |
| Fuel Injection to combustion chamber |
Indirect |
| Fuel Tank Capacity, gal (L) |
6.6 (25.0) |
| Cooling System |
Liquid cooled |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Rear PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
18.5 (13.8) |
| Rear PTO Speeds, rpm |
540 |
| Rear PTO / Engine Speeds, rpm |
540/2532 |
| Rear PTO Shaft |
Fixed, 6 spline |
| Mid PTO Operational Type |
Independent |
| Mid PTO Speeds, rpm |
2000 |
| Mid PTO / Engine Speeds, rpm |
2000/2476 |
| Mid PTO Shaft |
15 spline |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Drive Control |
Dual foot pedal |
| Cruise Control |
Standard |
| Maximum Speed (Forward), mph (kph) |
9.1 (14.7) |
| Maximum Speed (Reverse), mph (kph) |
7.2 (11.5) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Service Brake |
Rear, Wet disc |
| Front Tire Size |
18x8.50-10 |
| Rear Tire Size |
26x12.00-12 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
6.8 (26.3) |
| Number of Standard Remote Valves |
1 |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Directional control |
| Stabilisers Type |
Turnbuckle |
| Link Ends Type |
Fixed |
| Standard Lift Capacity 24-in behind pin, lb (kg) |
660 (300) |
| Standard Lift Capacity at lift pin, lb (kg) |
1190 (540) |
| Wheelbase, in (mm) |
57.1 (1450) |
| Length, in (mm) |
97.6 (2480) |
| Height (ROPS), in (mm) |
85.5 (2180) |
| Overall Width, in (mm) |
46.6 (1185) |
| Ground Clearance, in (mm) |
6.7 (170) |
| Weight, lb (kg) |
1523 (690) |
| Loader Model |
2400SL |
| Loader Type |
Quick Attach Standard |
| Maximum Digging Depth, in (mm) |
2.4 (60) |
| Maximum Reach, in (mm) |
47.4 (1200) |
| Maximum Lifting Height to Pin, in (mm) |
71.2 (1800) |
| Maximum Dumping Angle, deg |
45 |
| Maximum Dumping Clearance, in (mm) |
57.3 (1450) |
| Maximum Dumping Reach at Full Height, in (mm) |
18.2 (460) |
| Maximum Bucket Rollback Angle, deg |
40 |
| Breakout Force at 500 mm Forward, lb (kg) |
830 (376) |
| Weight, lb (kg) |
550 (250) |
| Backhoe Model |
MF CB25 |
| Backhoe Type |
Quick Attach Standard |
| Maximum Digging Depth, in (mm) |
77.9 (1970) |
| Maximum Reach, in (mm) |
107.9 (2730) |
| Transport Height, in (mm) |
71.2 (1800) |
| Transport Stabiliser Spread, in (mm) |
47.4 (1200) |
| Operating Stabiliser Spread, in (mm) |
80.6 (2040) |
| Loading Height, in (mm) |
66.4 (1680) |
| Angle of Departure, deg |
20 |
| Swing Arc, deg |
150 |
| Bucket Rotation, deg |
177 |
| Digging Force (Bucket), lb (kg) |
2480 (1126) |
| Digging Force (Dipper), lb (kg) |
1745 (793) |
| Weight, lb (kg) |
630 (288) |
