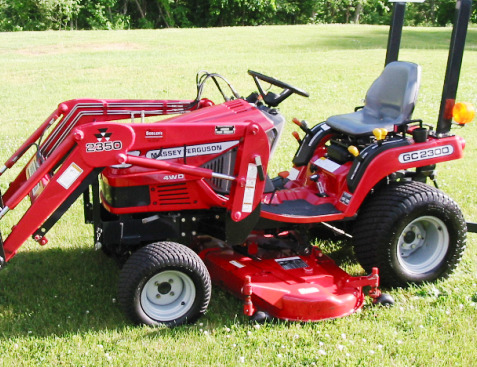

Massey Ferguson GC2300 Tractor
The
Massey Ferguson GC2300 is a 4WD sub-compact utility tractor. This model was
manufactured from 2005 to 2008. The Massey Ferguson GC2300 driveline components:
a 68.5 cu.in (1.13 L) Iseki 3-cylinder indirect injection naturally aspirated
water-cooled diesel engine with a rated power of 22.8 hp (16.8 kW), and 2-range
hydrostatic transmission with infinite forward and reverse gears.
The maximum forward speed - 9.2 mph (14.7 km/h), max reverse speed - 6.9
mph (11 km/h). The open center hydraulic system used a gear pump with
fluid flow rate of 4.1 gpm (15.5 lpm). The rear lift capacity is 1100
lbs (500 kg) at lift pin.
The Massey Ferguson GC2300 is equipped with a hydrostatic steering
system, wet disc brakes, 18x8.50-10 front tires, and 26x12.00-12 rear
tires. The wheelbase is 57.1" (1450 mm). Compatible attachments for the
tractor: 54" or 60" mid-mount 3-blade mower deck with hydraulic lift,
54" front-mount blade with height of 17.5" (440 mm), 50" front-mount
two-stage snowblower with hydraulic lift, and Massey Ferguson 2350
loader with max lift height of 73" (1850 mm).
| Engine Model |
Iseki |
| Engine Type |
Four stroke, Liquid cooled, diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
68.5 (1.123) |
| Engine Bore, in (mm) |
3.08 (78.2) |
| Engine Stroke, in (mm) |
3.07 (78) |
| Aspiration |
Natural |
| Maximum Engine Power, hp (kW) |
22.8 (16.8) |
| Maximum Engine Speed, rpm |
2600 |
| Maximum Torque, Nm |
65 |
| Torque Speed, rpm |
2000 |
| Fuel System |
In-Line Pump |
| Fuel Injection to combustion chamber |
Indirect |
| Fuel Tank Capacity, gal (L) |
5.53 (21.0) |
| Cooling System |
Liquid cooled |
| Neutral Safety Start |
Standard |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Rear PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
18.7 (13.9) |
| Rear PTO Speeds, rpm |
540 |
| Rear PTO / Engine Speeds, rpm |
540/2467 |
| Mid PTO Operational Type |
Independent |
| Mid PTO Speeds, rpm |
2000 |
| Mid PTO / Engine Speeds, rpm |
2000/2532 |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Drive Control |
Dual foot pedal |
| Cruise Control |
Standard |
| Maximum Forward Speed, mph (kph) |
9.2 (14.7) |
| Maximum Reverse Speed, mph (kph) |
6.9 (11.0) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Service Brake |
Wet disc |
| Tires Type |
Turf or Agricultural |
| Front Tire Size |
18x8.50-10 |
| Rear Tire Size |
26x12.00-10 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
4.1 (15.5) |
| Steering Flow, gpm (Lpm) |
2.0 (7.6) |
| Total Flow, gpm (Lpm) |
6.1 (23.1) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Directional control |
| Link Ends Type |
Fixed |
| Standard Lift Capacity at lift pin, lb (kg) |
1100 (500) |
| Wheelbase, in (mm) |
57.1 (1450) |
| Length, in (mm) |
97.6 (2480) |
| Height (ROPS), in (mm) |
73.3 (1855) |
| Overall Width, in (mm) |
46.1 (1165) |
| Ground Clearance, in (mm) |
6.7 (170) |
| Turning Radius, in (mm) |
73.1 (1850) |
| Front Wheel Track, in (mm) |
36.8 (930) |
| Rear Wheel Track, in (mm) |
33.2 (840) |
| Weight (ROPS), lb (kg) |
1370 (620) |
