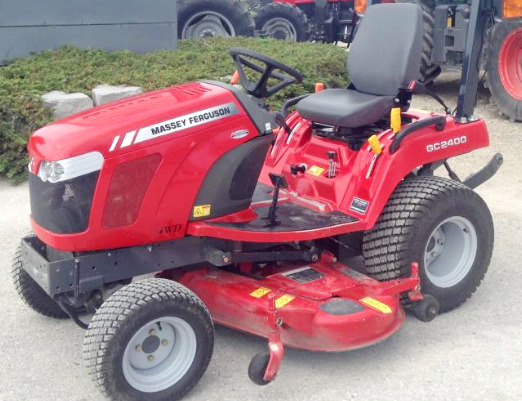

Massey Ferguson GC2400 Tractor
The
Massey Ferguson GC2400 is a sub-compact utility tractor from GC-series. This
model was manufactured between 2008 and 2012. The Massey Ferguson GC2400
driveline includes a 68.5 cu.in (1.13 L) Iseki 3-cylinder indirect injection
naturally aspirated water-cooled diesel engine and 2-range hydrostatic
transmission with infinite forward and reverse gears.
The engine has a cylinder bore of 3.08" (78.2 mm), piston stroke of
3.07" (78 mm), rated power of 22.5 hp (16.8 kW), and 65 Nm (48 lb-ft) of
max torque at 2000 rpm. Max travel speed (forward and reverse): 9.2 mph
(14.7 kph) / 6.9 mph (11 kph).
The open center hydraulic system used a gear pump with fluid flow rate
of 4.3 gpm (16.3 lpm). The rear lift capacity is 1190 lbs (539 kg) at
lift pin. The tractor is equipped with a hydrostatic steering system,
wet disc brakes, 18x8.50-10 front tires, and 26x12.00-12 rear tires. The
wheelbase is 57.1" (1450 mm). The Massey Ferguson GC2400 is compatible
with the following attachments: 54", 60" mid-mount 3-blade mower deck
with hydraulic lift, 54" front-mount blade with height of 17.5" (440
mm), 50" front-mount two-stage snowblower with hydraulic lift, and MF
DL100 loader with lift capacity to full height of 678 lbs (307 kg).
| Engine Model |
Iseki |
| Engine Type |
Four stroke, 3-cylinder diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
68.5 (1.12) |
| Engine Bore, in (mm) |
3.08 (78.2) |
| Engine Stroke, in (mm) |
3.07 (78) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
22.5 (16.8) |
| Rated Engine Speed, rpm |
2600 |
| Maximum Torque, Nm |
65 |
| Torque Speed, rpm |
2000 |
| Fuel System |
In-Line Pump |
| Fuel Injection to combustion chamber |
Indirect |
| Fuel Tank Capacity, gal (L) |
6.6 (24.5) |
| Cooling System |
Liquid cooled |
| Speed control |
Manual |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Rear PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
18.7 (13.9) |
| Rear PTO Speeds, rpm |
540 |
| Rear PTO / Engine Speeds, rpm |
540/2532 |
| Rear PTO Shaft |
Fixed, 6 spline |
| Mid PTO Operational Type |
Independent |
| Mid PTO Speeds, rpm |
2000 |
| Mid PTO / Engine Speeds, rpm |
2000/2476 |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Drive Control |
Dual foot pedal |
| Cruise Control |
Standard |
| Maximum Forward Speed, mph (kph) |
9.2 (14.7) |
| Maximum Reverse Speed, mph (kph) |
6.9 (11.0) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Service Brake |
Wet disc |
| Front Tire Size |
18x8.50-10 |
| Rear Tire Size |
26x12.00-12 |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
4.3 (16.3) |
| Steering Flow, gpm (Lpm) |
2.0 (7.6) |
| Total Flow, gpm (Lpm) |
6.3 (24.0) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Directional control |
| Link Ends Type |
Fixed |
| Standard Lift Capacity at lift pin, lb (kg) |
1190 (539) |
| Wheelbase, in (mm) |
57.1 (1450) |
| Length, in (mm) |
97.6 (2480) |
| Height (ROPS), in (mm) |
73.3 (1855) |
| Overall Width, in (mm) |
46.1 (1165) |
| Ground Clearance, in (mm) |
6.7 (170) |
| Turning Radius, in (mm) |
92.8 (2350) |
| Weight (ROPS), lb (kg) |
1430 (650) |
| Loader Model |
MF DL100 |
| Height (to pin), in (mm) |
73 (1850) |
| Dump Angle, deg |
43 |
| Rollback Angle, deg |
23 |
| Breakout Force (lift), lb (kg) |
950 (430) |
| Lift at Maximum Height (pin), lb (kg) |
678 (307) |
| Lift at Maximum Height (500 mm), lb (kg) |
470 (213) |
| Bucket Width, in (mm) |
48 (1210) |
| Mower Deck Model |
MF SSM60 |
| Mower Deck Type |
60 inch Mid-mount rotary deck |
| Discharge Type |
Side |
| Number of Brakes |
3 (overlapping) |
| Gearbox |
Drive shaft |
| Speed, rpm |
2000 |
| Blade Tip Speed, rpm |
18856 |
| Gauge Wheels |
4 |
| Scallop Rollers |
3 |
| Raise and Lower Actuation |
Via 3pt linkage |
| Height Control |
Manual adjustment |
| Transport height, in (mm) |
5.93 (150) |
| Cutting Width, in (mm) |
60 (1524) |
| Overall Width, in (mm) |
75 (1900) |
| Overall Height, in (mm) |
20.7 (524) |
| Weight, lb (kg) |
440 (200) |
