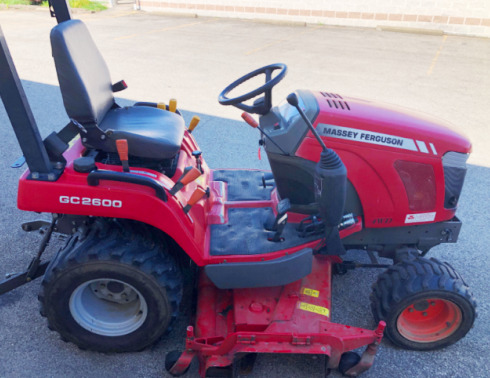

Massey Ferguson GC2600 Tractor
The
Massey Ferguson GC2600 is a 4-wheel drive sub-compact utility tractor. This
model was manufactured from 2008 to 2012. The Massey Ferguson GC2600 driveline
components: a 68.5 cu.in (1.13L) Iseki 3-cylinder indirect injection naturally
aspirated water-cooled diesel engine with a rated power of 25 hp (18 kW), and
2-range hydrostatic transmission with infinite forward and reverse gears.
Max forward speed - 9.1 mph (14.7 km/h), max reverse speed - 6.9 mph (11
km/h). The open center hydraulic system used a gear pump with a flow of
4.8 gal/min (18.2 l/min). The rear lift capacity is 1190 lbs (540 kg) at
lift pin.
The Massey Ferguson GC2600 is equipped with a hydrostatic steering
system, wet disc brakes, 18x8.50-10 front tires, and 26x12.00-12 rear
tires. The wheelbase is 57.1" (1450 mm). The tractor is compatible with
54" or 60" mid-mount 3-blade mower deck with hydraulic lift, 60"
front-mount blade with height of 19" (480 mm), 50" front-mount two-stage
snowblower with hydraulic lift, and Massey Ferguson DL100 loader with
lift capacity to full height of 678 lbs (307 kg).
| Engine Model |
Iseki |
| Engine Type |
4 stroke, three-cylinder diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
68.5 (1.13) |
| Engine Bore, in (mm) |
3.08 (78.2) |
| Engine Stroke, in (mm) |
3.07 (78) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
25.0 (18.0) |
| Rated Engine Speed, rpm |
3000 |
| Maximum Torque, Nm |
65 |
| Torque Speed, rpm |
2200 |
| Fuel System |
In-Line Pump |
| Fuel Injection to combustion chamber |
Indirect |
| Speed control |
Manual |
| Fuel Tank Capacity, gal (L) |
6.6 (25.0) |
| Cooling System |
Liquid cooled |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Rear PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
19.6 (14.5) |
| Rear PTO Speeds, rpm |
540 |
| Rear PTO / Engine Speeds, rpm |
540/2829 |
| Rear PTO Shaft |
Fixed, 6 spline |
| Mid PTO Operational Type |
Independent |
| Mid PTO Speeds, rpm |
2000 |
| Mid PTO / Engine Speeds, rpm |
2000/2947 |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Drive Control |
Dual foot pedal |
| Maximum Forward Speed, mph (kph) |
9.1 (14.7) |
| Maximum Reverse Speed, mph (kph) |
6.9 (11.0) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Service Brake |
Wet disc |
| Front Tire Size |
18x8.50-10 |
| Rear Tire Size |
26x12.00-12 |
| Hydraulic System Type |
Open centre |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
4.8 (18.2) |
| Steering Flow, gpm (Lpm) |
2.0 (7.6) |
| Total Flow, gpm (Lpm) |
6.8 (25.7) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Directional control |
| Link Ends Type |
Fixed |
| Standard Lift Capacity at lift pin, lb (kg) |
1190 (540) |
| Wheelbase, in (mm) |
57.1 (1450) |
| Length, in (mm) |
97.6 (2480) |
| Height (ROPS), in (mm) |
72.8 (1840) |
| Overall Width, in (mm) |
49.6 (1190) |
| Ground Clearance, in (mm) |
6.7 (170) |
| Turning Radius, in (mm) |
92.8 (2350) |
| Weight (ROPS), lb (kg) |
1432 (650) |
| Loader Model |
Massey Ferguson DL100 |
| Height (to pin), in (mm) |
73 (1850) |
| Dump Angle, deg |
43 |
| Rollback Angle, deg |
23 |
| Breakout Force (lift), lb (kg) |
950 (430) |
| Lift at Maximum Height (pin), lb (kg) |
678 (307) |
| Lift at Maximum Height (500 mm), lb (kg) |
470 (213) |
| Bucket Width, in (mm) |
48 (1210) |
| Mower Deck Model |
Massey Ferguson 2325 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Snow Blower Model |
Massey Ferguson 2360 |
| Snowblower Type |
Front-mount, 2-stage |
| Clearing Width, in (mm) |
50 (1270) |
| Overall Width, in (mm) |
50.2 (1270) |
| Lifting System |
Hydraulic |
| Blade Model |
Massey Ferguson 2340 |
| Type |
Front-mount |
| Width, in (mm) |
60 (1520) |
| Height, in (mm) |
19 (480) |
| Lifting |
Hydraulic |
| Working Angle |
Manual/Hydraulic |
