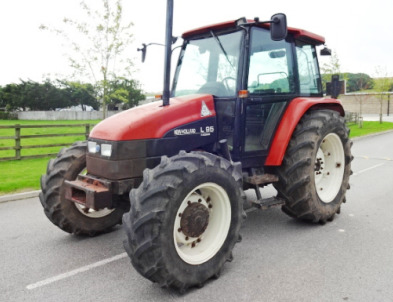

New Holland L95 Tractor
The
New Holland L95 is a 2-wheel drive or 4-wheel drive utility tractor. This model
was manufactured from 1996 to 1999. The New Holland L95 driveline includes a
Iveco 8045.25 4 cycle vertical in-line 4-cylinder direct injection diesel engine
and Dual Command partial power shift transmission with 24 forward and 12 reverse
gears.
A 238 cu.in (3.9 L) engine has a cylinder bore of 4.09" (104 mm), piston
stroke of 4.53" (115 mm), and rated power of 95 hp (70.8 kW) at 2500
rpm. The maximum forward speed - 18.6 mph (29.7 km/h), max reverse
speed - 18.3 mph (29.2 km/h).
The open center hydraulic system includes
a gear pump with a flow rate of 14.5 gal/min (54.9 l/min). The rear lift
capacity is 6430 lbs (2920 kg) at 24" (610 mm) behind pin. The New
Holland L95 is equipped with a power steering system, hydraulic wet disc
brakes, 7.50x16 front tires, and 13.6x38 rear tires. The wheelbase is
92.2 in (2340 mm) for 2WD models and 91.1 in (2310 mm) for 4WD models.
| Engine Model |
Iveco 8045.25 |
| Engine Type |
Diesel direct injection, 4 cycle |
| Number of Cylinders |
4, vertical, in line |
| Displacement, cu in (L) |
238 (3,9) |
| Engine Bore, in (mm) |
4,09 (104,0) |
| Engine Stroke, in (mm) |
4,53 (115,0) |
| Cylinder liners |
Wet |
| Rated Engine Power, hp (kW) |
95,0 (70,8) |
| Rated Engine Speed, rpm |
2500 |
| Compression |
16.5:1 |
| Fuel Feed System |
Rotary injection pump with centrifugal speed governor |
| Fuel Injection Pump |
L786 type, rotary |
| Governor Type |
Mechanical |
| Lubrication system |
Forced feed by means of gear pump |
| Fuel Tank Capacity, gal (L) |
29,0 (110,0) |
| Oil Capacity, qts (L) |
12,4 (11,7) |
| Coolant Capacity (ROPS/Cabin), qts (L) |
14,8 (14,0) / 16,9 (16,0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
45/65 |
| PTO Operational Type |
Independent |
| Clutch Type |
Electro-hydraulic wet disc |
| PTO Horsepower, hp (kW) |
86,0 (64,1) |
| PTO Speeds, rpm |
540/1000 |
| Transmission Model |
Dual Command |
| Transmission Type |
Partial power shift |
| Gearbox Type |
24F/12R |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
12 |
| Number of Ranges |
3F/3R (slow, medium and fast) |
| Number of Gears |
4/4 |
| Maximum Speed (Forward), mph (kph) |
18,6 (29,7) |
| Maximum Speed (Reverse), mph (kph) |
18,3 (29,2) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Service Brake |
Hydraulic wet disc |
| Front Tire Size |
7.50-16 |
| Rear Tire Size |
13.6-38 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
14,5 (54,9) |
| Number of Standard Remote Valves |
2 to 3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Mechanical lower link draft sensing |
| Standard Lift Capacity 24-in behind pin, lb (kg) |
6430 (2920) |
| Wheelbase (2WD), in (mm) |
92,2 (2340) |
| Wheelbase (4WD), in (mm) |
91,1 (2310) |
| Height (ROPS), in (mm) |
84,0 (2130) |
| Height (Cab), in (mm) |
97,5 (2470) |
| Overall Width, in (mm) |
72,6 (1840) |
| Front Tread, in (mm) |
56 to 84 (1420 to 2130) |
| Rear Tread, in (mm) |
60 to 84 (1520 to 2130) |
| Weight (2WD ROPS), lb (kg) |
6835 (3100) |
| Weight (2WD Cab), lb (kg) |
7480 (3395) |
| Weight (4WD ROPS), lb (kg) |
7497 (3400) |
| Weight (4WD Cab), lb (kg) |
7936 (3600) |
