New Holland M135 Tractor
The

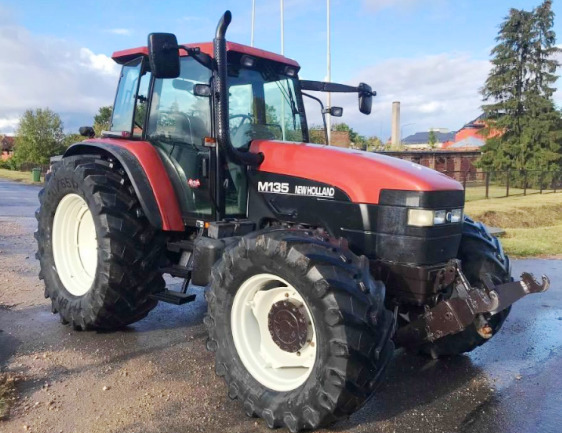

New Holland M135 is a 4-wheel drive farm tractor. This model was manufactured
between 1996 and 1999. The New Holland M135 tractor is powered by NH 675T/WL 4
stroke 6-cylinder vertical in-line direct injection turbocharged diesel engine
with operating power of 135 Hp (100.7 kW) and 612 Nm (453 lb-ft) of max torque
at 1350 rev/min.
The New Holland M135 is fitted with 2 types of transmission. Type 1:
Dual Command two-speed powershift transmission with 23 forward and 12
reverse gears. Type 2: Range Command two-speed powershift transmission
with 31 forward and 12 reverse gears. The maximum forward speed - 27.7
mph (39.5 km/h), maximum reverse speed - 17.8 mph (28.5 km/h).
The closed center hydraulic system used a piston pump with fluid flow
rate of 24.7 gal/min (93.5 l/min). The hydraulic pressure is 190 bar
(2755 psi). The New Holland M135 was equipped with a hydrostatic
steering system, differential hydraulic wet disc brakes, 16.9R28 front
tires, and 20.8R38 rear tires. The wheelbase is 107 in (2720 mm).
| Engine Model |
New Holland 675T/WL |
| Engine Type |
4 stroke direct injection turbocharged diesel |
| Number of Cylinders |
6, vertical in-line |
| Displacement, cu in (L) |
457 (7,48) |
| Engine Bore, in (mm) |
4,40 (111,8) |
| Engine Stroke, in (mm) |
5,00 (127,0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
135 (100.7) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
612 (453) |
| Torque Speed, rpm |
1350 |
| Compression |
17.5:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Fuel Pump Type |
Rotary |
| Governor Type |
Mechanical |
| Fuel Tank Capacity, gal (L) |
85,5 (325) |
| Oil Capacity, qts (L) |
20,0 (18,9) |
| Coolant Capacity, qts (L) |
27,0 (25,5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
70/100 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
115,0 (85,8) |
| PTO Clutch |
Electro-hydraulic |
| PTO Speeds, rpm |
540/750/1000 |
| PTO / Engine Speed, rpm |
540/1971 |
| PTO / Engine Speed, rpm |
750/2145 |
| PTO / Engine Speed, rpm |
1000/2121 |
| Transmission Type |
Dual Command |
| Gearbox Type |
23F/12R (46F/24R with creeper), two-speed powershift |
| Number of Forward Gears |
23 (46) |
| Number of Reverse Gears |
12 (24) |
| Clutch Type |
Wet multiplates |
| Number of Plates |
7 |
| Diameter of Plates, in (mm) |
6,3 (160) |
| Oil Capacity, qts (L) |
77,4 (73,0) |
| Maximum Forward Speed, mph (kph) |
17,9 (28,6) |
| Maximum Reverse Speed, mph (kph) |
17,4 (27,9) |
| Transmission Type |
Range Command |
| Gearbox Type |
31F/12R, two-speed powershift |
| Number of Forward Gears |
31 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
27,7 (39,5) |
| Maximum Reverse Speed, mph (kph) |
17,8 (28,5) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Brakes Type |
Differential hydraulic wet disc |
| Front Tire Size |
16.9R28 |
| Rear Tire Size |
20.8R38 |
| Front Track Width, in (mm) |
64,6-92,9 (1640-2360) |
| Rear Track Width, in (mm) |
64,2-87,8 (1630-2230) |
| Hydraulic System Type |
Closed Center |
| Implement Pump Flow, gpm (Lpm) |
24,7 (93,5) |
| Steering Pressure, Bar (psi) |
170 (2465) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| Hydraulic Capacity, gal (L) |
19,2 (73,0) |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity at Pin, lb (kg) |
14806 (6730) |
| Wheelbase, in (mm) |
107 (2720) |
| Length, in (mm) |
183 (4640) |
| Height, in (mm) |
113 (2860) |
| Overall Width, in (mm) |
84 (2130) |
| Ground Clearance, in (mm) |
20 (500) |
| Turning Radius, in (mm) |
183 (4655) |
| Shipping Weight, lb (kg) |
11550 (5250) |
| Operating Weight, lb (kg) |
12980 (5900) |
| Maximum Weight, lb (kg) |
19800 (9000) |
