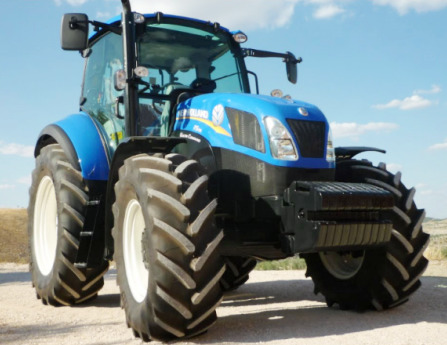

New Holland T5.115 Tractor
The
New Holland T5.115 is a 2WD or 4WD utility tractor. This model was manufactured
from 2013 to 2021. The New Holland T5.115 driveline includes a 207 cu.in (3.4L)
FPT F5C 4-cylinder 2-valve direct injection turbocharged diesel engine and 12x12
Power Shuttle transmission, or 24x24 Dual Command transmission.
The engine has a cylinder bore of 3.90" (99 mm), piston stroke of 4.33"
(110 mm), rated power of 114 hp (84 kW), and 457 Nm (339 lb-ft) of max
torque at 1500 rpm. Max travel speed - 25 mph (40 km/h), maximum creeper
speed - 0.19 mph (0.30 km/h). The open center hydraulic system used a
dual gear pump with a flow of 12.6 gal/min (48 l/min) or 16.8 gal/min
(64 l/min) using MegaFlow.
The hydraulic system pressure is 190 bar (2755 psi). The 2-wheel drive
models are equipped with 10.00x16 front tyres and 18.4x34 rear tyres.
The 340/85R24 front tyres and 540/65R34 rear tyres fit 4-wheel drive
tractors. The wheel base is 92.1" (2340 mm) for 4x2 (2WD) models and 90"
(2285 mm) for 4x4 (4WD) models. Compatible attachments for the tractor:
a New Holland 825TL front-end loader with a maximum lift height of 138"
(3500 mm), or New Holland 835TL front-end loader with a maximum lift
height of 146" (3700 mm).
| Engine Model |
FPT F5C |
| Engine Type |
Four-cylinder 2-valve turbocharged diesel |
| Number of Cylinders |
4, inline |
| Displacement, cu.in (L) |
207 (3.40) |
| Engine Bore, in (mm) |
3.90 (99.0) |
| Engine Stroke, in (mm) |
4.33 (110.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
114.0 (84.0) |
| Rated Engine Speed, rpm |
2300 |
| Maximum Torque, Nm (lb-ft) |
457 (339) |
| Torque Speed, rpm |
1500 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Common rail direct injection |
| Emission Level |
Tier 4A |
| Fuel Tank Capacity, gal (L) |
42.1 (160.0) |
| Oil Capacity, qts (L) |
9.5 (9.0) |
| Coolant Capacity, qts (L) |
15.9 (15.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
120 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
95.0 (70.4) |
| PTO Speed, rpm |
540 |
| PTO Speed, rpm |
540/1000 |
| PTO Speed, rpm |
540/540E/1000 |
| PTO / Engine Speed, rpm |
540/1938 |
| PTO / Engine Speed, rpm |
540E/1535 |
| PTO / Engine Speed, rpm |
1000/1926 |
| Transmission Type |
Power Shuttle |
| Gearbox Type |
12F/12R (20F/20R w/creeper), hydraulic shuttle shift |
| Number of Forward Gears |
12 (20) |
| Number of Reverse Gears |
12 (20) |
| Synchronized Gears |
4 |
| Non-synchronized Ranges |
3 |
| Maximum Speed, mph (kph) |
25.0 (40.0) |
| Minimum Speed, mph (kph) |
1.34 (2.15) |
| Minimum Speed (Creeper), mph (kph) |
0.19 (0.30) |
| Transmission Type |
Dual Command |
| Gearbox Type |
24F/24R (40F/40R), Hi-Lo splitter full load powershift |
| Number of Forward Gears |
24 (40) |
| Number of Reverse Gears |
24 (40) |
| Clutch Type |
Power clutch |
| Synchronized Gears (Hi/Lo) |
4/4 |
| Non-synchronized Ranges |
3 |
| Maximum Speed, mph (kph) |
25.0 (40.0) |
| Minimum Speed, mph (kph) |
0.82 (1.31) |
| Minimum Speed (Creeper), mph (kph) |
0.11 (0.17) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (2WD) |
10.0x16 |
| Rear Tire Size (2WD) |
18.4x34 |
| Front Tire Size (4WD) |
340/85R24 |
| Rear Tire Size (4WD) |
540/65R34 |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Dual gear |
| Implement Pump Flow (Standard), gpm (Lpm) |
12.6 (48.0) |
| Implement Pump Flow (MegaFlow), gpm (Lpm) |
16.8 (64.0) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| Steering Pump Flow (Standard), gpm (Lpm) |
7.4 (28.0) |
| Steering Pump Flow (MegaFlow), gpm (Lpm) |
9.6 (37.0) |
| Steering Pressure, Bar (psi) |
170 (2465) |
| Number of Standard Remote Valves |
3/1 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Mechanical draft control |
| Standard Lift Capacity at 24" (610mm) behind pin, lb (kg) |
8580 (3900) |
| Standard Lift Capacity at pin, lb (kg) |
9680 (4400) |
| Wheelbase (2WD), in (mm) |
92.1 (2340) |
| Wheelbase (4WD), in (mm) |
90 (2285) |
| Length, in (mm) |
158.8 (4035) |
| Height (Cab), in (mm) |
101.2 (2570) |
| Overall Width, in (mm) |
85.2 (2165) |
| Ground Clearance, in (mm) |
17.7 (450) |
| Turning Radius (2WD), in (mm) |
131.9 (3350) |
| Turning Radius (4WD), in (mm) |
166.7 (4235) |
| Turning Radius (SuperSteer), in (mm) |
153.7 (3905) |
| Weight (4WD, ROPS), lb (kg) |
7435 (3380) |
| Weight (2WD, Cab), lb (kg) |
7240 (3290) |
| Weight (4WD, Cab), lb (kg) |
8140 (3700) |
