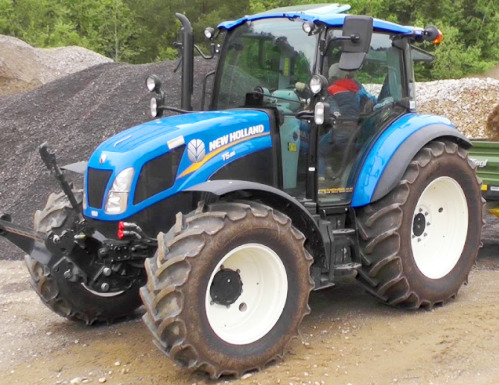

New Holland T5.85 Tractor
The
New Holland T5.85 is a 2WD or 4WD utility tractor from T5 series. This model was
manufactured between 2013 and 2017. The New Holland T5.85 tractor is powered by
207 cu.in (3.4 L) FPT F5C 4-cylinder inline 2-valve direct injection
turbocharged diesel engine with a rated output power of 86 hp (63 kW) and 351 Nm
(260 lb-ft) of max torque at 1500 rev/min.
The New Holland T5.85 is fitted with 2 transmission options: 12x12
Synchro Shuttle transmission with mechanical shuttle shift, or 12x12
Power Shuttle transmission with hydraulic shuttle shift. The maximum
speed - 25.0 mph (40 km/h), minimum speed - 1.34 mph (2.15 km/h). The
open center hydraulic system used a dual gear pump with a flow rate of
12.6 gpm (48 lpm) and 16.8 gpm (64 lpm) with MegaFlow. The hydraulic
system pressure is 190 bar (2755 psi).
The New Holland T5.85 is equipped with a hydrostatic power steering, wet
disc brakes, 7.50x16 (2WD) or 340/85R24 (4WD) front tires, and 16.9x30
(2WD) or 420/85R30 (4WD) rear tires. The wheelbase is 92.1" (2340 mm)
for 2-wheel drive models and 90" (2285 mm) for 4-wheel drive models. The
tractor is compatible with the following attachments: a New Holland
825TL NSL/MSL front end loader with lift capacity to full height of 2843
lbs (1289 kg) or 2954 lbs (1339 kg), and New Holland 835TL NSL/MSL front
end loader with lift capacity to full height of 3486 lbs (1580 kg) or
3680 lbs (1670 kg).
| Engine Model |
FPT F5C |
| Engine Type |
Four-cylinder 2-valve turbocharged diesel |
| Number of Cylinders |
4, inline |
| Displacement, cu.in (L) |
207 (3.40) |
| Engine Bore, in (mm) |
3.90 (99.0) |
| Engine Stroke, in (mm) |
4.33 (110.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
86.0 (63.0) |
| Rated Engine Speed, rpm |
2300 |
| Maximum Torque, Nm (lb-ft) |
351 (260) |
| Torque Speed, rpm |
1500 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Common rail direct injection |
| Emission Level |
Tier 4A |
| Fuel Tank Capacity, gal (L) |
42.1 (160.0) |
| Oil Capacity, qts (L) |
9.5 (9.0) |
| Coolant Capacity, qts (L) |
15.9 (15.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
120 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
71.7 (53.1) |
| PTO Speed, rpm |
540 |
| PTO Speed, rpm |
540/1000 |
| PTO Speed, rpm |
540/540E/1000 |
| PTO / Engine Speed, rpm |
540/1938 |
| PTO / Engine Speed, rpm |
540E/1535 |
| PTO / Engine Speed, rpm |
1000/1926 |
| Transmission Type |
Synchro Shuttle |
| Gearbox Type |
12F/12R (20F/20R w/creeper), mechanical shuttle shift |
| Number of Forward Gears |
12 (20) |
| Number of Reverse Gears |
12 (20) |
| Synchronized Gears |
4 |
| Non-synchronized Ranges |
3 |
| Maximum Speed, mph (kph) |
18.8 (30.0) |
| Minimum Speed, mph (kph) |
0.41 (0.65) |
| Minimum Speed (Creeper), mph (kph) |
0.06 (0.09) |
| Transmission Type |
Power Shuttle |
| Gearbox Type |
12F/12R (20F/20R w/creeper), hydraulic shuttle shift |
| Number of Forward Gears |
12 (20) |
| Number of Reverse Gears |
12 (20) |
| Synchronized Gears |
4 |
| Non-synchronized Ranges |
3 |
| Maximum Speed, mph (kph) |
25.0 (40.0) |
| Minimum Speed, mph (kph) |
1.34 (2.15) |
| Minimum Speed (Creeper), mph (kph) |
0.19 (0.30) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (2WD) |
7.50x16 |
| Rear Tire Size (2WD) |
16.9x30 |
| Front Tire Size (4WD) |
340/85R24 |
| Rear Tire Size (4WD) |
420/85R30 |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Dual gear |
| Implement Pump Flow (Standard), gpm (Lpm) |
12.6 (48.0) |
| Implement Pump Flow (MegaFlow), gpm (Lpm) |
16.8 (64.0) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| Steering Pump Flow (Standard), gpm (Lpm) |
7.4 (28.0) |
| Steering Pump Flow (MegaFlow), gpm (Lpm) |
9.6 (37.0) |
| Steering Pressure, Bar (psi) |
170 (2465) |
| Number of Standard Remote Valves |
3/1 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Mechanical draft control |
| Standard Lift Capacity at 24" (610mm) behind pin, lb (kg) |
8580 (3900) |
| Standard Lift Capacity at pin, lb (kg) |
9680 (4400) |
| Wheelbase (2WD), in (mm) |
92.1 (2340) |
| Wheelbase (4WD), in (mm) |
90 (2285) |
| Length, in (mm) |
158.8 (4035) |
| Height (Cab), in (mm) |
99.2 (2520) |
| Overall Width, in (mm) |
76.8 (1950) |
| Ground Clearance, in (mm) |
15.7 (400) |
| Turning Radius (2WD), in (mm) |
131.9 (3350) |
| Turning Radius (4WD), in (mm) |
166.7 (4235) |
| Turning Radius (SuperSteer), in (mm) |
153.7 (3905) |
| Weight (2WD, ROPS), lb (kg) |
6755 (3070) |
| Weight (4WD, ROPS), lb (kg) |
7435 (3380) |
| Weight (2WD, Cab), lb (kg) |
7240 (3290) |
| Weight (4WD, Cab), lb (kg) |
8140 (3700) |
