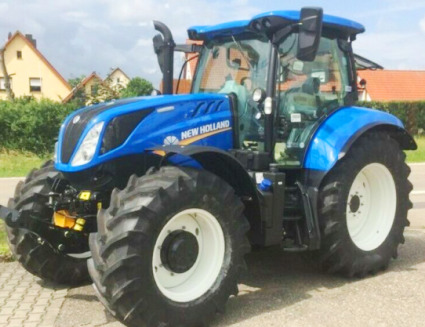

New Holland T6.125 Tractor
The
New Holland T6.125 is a 4WD (4x4) row-crop tractor. This model was manufactured
from 2016 to 2021. The New Holland T6.125 tractor is powered by FPT NEF
4-cylinder 4 valve direct injection turbocharged diesel engine. A 274 cubic
inches (4.5 L) engine has a cylinder bore of 4.09" (104 mm), piston stroke of
5.20" (132 mm), maximum power of 125 hp (92 kW), and 528 Nm (391 lb-ft) of peak
torque at 1500 rpm.
The New Holland T6.125 is fitted with two transmission options: Electro
Command semi-powershift transmission with 16 forward and 16 reverse
gears, and Electro Command semi-powershift transmission with 17 forward
and 16 reverse gears. Max travel speed - 31.3 mph (50 km/h), minimum
travel speed - 1.42 mph (2.27 km/h). The open center hydraulic system
includes a fixed-displacement pump with a rated capacity of 21.1 gpm (80
lpm).
The main relief pressure is 190 bar (2755 psi). The New Holland T6.125
is equipped with a hydrostatic power steering, hydraulic wet disc
brakes, 14.9R24 or 380/85R24 front tires, and 16.9R38 or 460/85R38 rear
tires. The wheel base is 103.9" (2640 mm) for 4WD models, 105.7" (2685
mm) for Terraglide models, and 109.8" (2790 mm) for Supersteer models.
| Engine Model |
FPT NEF |
| Engine Type |
4-cylinder 4 valve direct injection turbocharged diesel |
| Number of Cylinders |
Four, in-line |
| Displacement, cu.in (L) |
274 (4.49) |
| Cylinder Bore, in (mm) |
4.09 (104.0) |
| Piston Stroke, in (mm) |
5.20 (132.0) |
| Aspiration |
Turbocharged |
| Maximum Power, hp (kW) |
125.0 (92.0) |
| Rated Power, hp (kW) |
116.0 (85.0) |
| Rated Speed, rpm |
2200 |
| Maximum Torque, Nm (lb-ft) |
528 (391) |
| Torque Speed, rpm |
1500 |
| Firing Order |
1-3-4-2 |
| Fuel System |
High pressure common rail |
| Fuel System Control |
Electronic |
| Emission Level |
Tier 4B |
| Emission Control |
Selective catalytic reduction (SCR) |
| Fuel Tank Capacity, gal (L) |
60.5 (230.0) |
| Oil Capacity, qts (L) |
16.0 (15.0) |
| Coolant Capacity, qts (L) |
22.3 (21.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
120 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
97.0 (71.6) |
| PTO Clutch |
Electro-hydraulic |
| PTO Speed, rpm |
540/1000 |
| PTO Speed, rpm |
540/540E/1000 |
| PTO / Engine Speed, rpm |
540/1969 |
| PTO / Engine Speed, rpm |
540E/1546 |
| PTO / Engine Speed, rpm |
1000/1893 |
| Transmission Type |
Electro Command (40 kph) |
| Gearbox Type |
16F/16R (32F/32R w/creeper), semi-powershift |
| Number of Forward Gears |
16 (32) |
| Number of Reverse Gears |
16 (32) |
| Shuttle Shift |
Electro-hydraulic |
| Clutch Type |
Wet multi-disc |
| Maximum Speed, mph (kph) |
25.0 (40.0) |
| Minimum Speed, mph (kph) |
1.42 (2.27) |
| Minimum Speed (Creeper), mph (kph) |
0.12 (0.19) |
| Transmission Type |
Electro Command (50 kph) |
| Gearbox Type |
17F/16R, semi-powershift |
| Number of Forward Gears |
17 |
| Number of Reverse Gears |
16 |
| Shuttle Shift |
Electro-hydraulic |
| Clutch Type |
Wet multi-disc |
| Maximum Speed, mph (kph) |
31.3 (50.0) |
| Minimum Speed, mph (kph) |
1.42 (2.27) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Column |
Tilting and telescopic |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (Std) |
14.9R24 |
| Rear Tire Size (Std) |
16.9R38 |
| Front Tire Size (Opt) |
380/85R24 |
| Rear Tire Size (Opt) |
460/85R38 |
| Hydraulic System Type |
Fixed displacement |
| Implement Pump Flow, gpm (Lpm) |
21.1 (80.0) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| Steering Pump Flow, gpm (Lpm) |
12.4 (47.0) |
| Steering Pressure, Bar (psi) |
170 (2465) |
| Number of Standard Remote Valves |
3/5 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Electronic draft control |
| Lift Capacity at pin, lb (kg) |
17300 (7865) |
| Lift Capacity at 24" (610mm) behind pin, lb (kg) |
11630 (5285) |
| Wheelbase (4WD), in (mm) |
103.9 (2640) |
| Wheelbase (Terraglide), in (mm) |
105.7 (2685) |
| Wheelbase (Supersteer), in (mm) |
109.8 (2790) |
| Length, in (mm) |
204.3 (5190) |
| Height (Low Profile Cab), in (mm) |
109.4 (2780) |
| Height (Standard Cab), in (mm) |
114.2 (2900) |
| Overall Width, in (mm) |
89.8 (2280) |
| Ground Clearance, in (mm) |
16.8 (427) |
| Turning Radius (4WD), in (mm) |
181.1 (4600) |
| Turning Radius (Supersteer), in (mm) |
169.3 (4300) |
| Weight (Shipping), lb (kg) |
11945 (5430) |
| Weight (Operating), lb (kg) |
13440 (6110) |
