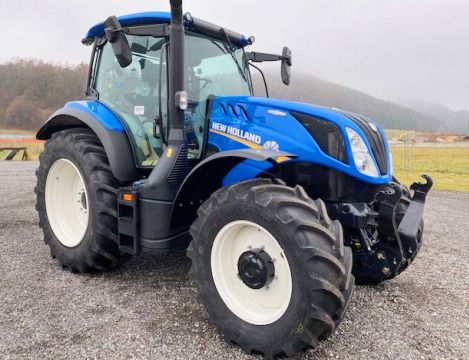

New Holland T6.145 Tractor
The
New Holland T6.145 row-crop tractor was manufactured from 2015 to 2021. The
tractor was designed in four versions: Value (economy), Plus (Mid-spec), Elite
(Premium), and CVT (AutoCommand). The New Holland T6.145 is powered by 274 cu.in
(4.5 L) FPT NEF 4-cylinder 4 valve direct injection turbocharged diesel engine
with a rated power of 116 hp (85 kW) and 528 Nm (391 lb-ft) of maximum torque at
1500 rpm.
The New Holland T6.145 is fitted with 4 transmission options: 16x16
Electro Command semi-powershift transmission, 17x16 Electro Command
semi-powershift transmission, 24x24 Dynamic Command transmission, or
Auto Command continuously variable transmission (CVT). The maximum
travel speed (forward and reverse): 31.3 mph (50 km/h) / 0.12 mph (0.20
km/h). The tractor has two types of hydraulic systems: open center
hydraulic system with a pump flow rate of 21.1 gpm (80 lpm), or closed
center load sensing hydraulic system with a pump flow rate of 33.4 gpm
(127 lpm).
The hydraulic pressure is 190 bar (2755 psi) for open center or 210 bar
(3050 psi) for CCLS. The NH T6.145 is equipped with a hydrostatic power
steering, hydraulic wet disc brakes, 14.9R28 or 380/85R28 front tires,
and 18.4R38 or 460/85R38 rear tires. The wheelbase is 103.9" (2640 mm)
for 4WD models, 105.7" (2685 mm) for Terraglide models, and 109.8" (2790
mm) for Supersteer models.
| Engine Model |
FPT NEF |
| Engine Type |
4-cylinder 4 valve direct injection turbocharged diesel |
| Number of Cylinders |
Four, in-line |
| Displacement, cu.in (L) |
274 (4.49) |
| Cylinder Bore, in (mm) |
4.09 (104.0) |
| Piston Stroke, in (mm) |
5.20 (132.0) |
| Aspiration |
Turbocharged |
| Maximum Power, hp (kW) |
145.0 (107.0) |
| Rated Power, hp (kW) |
116.0 (85.0) |
| Rated Speed, rpm |
2200 |
| Maximum Torque, Nm (lb-ft) |
528 (391) |
| Torque Speed, rpm |
1500 |
| Firing Order |
1-3-4-2 |
| Fuel System |
High pressure common rail |
| Fuel System Control |
Electronic |
| Emission Level |
Tier 4B |
| Emission Control |
Selective catalytic reduction (SCR) |
| Fuel Tank Capacity, gal (L) |
60.5 (230.0) |
| Oil Capacity, qts (L) |
16.0 (15.0) |
| Coolant Capacity, qts (L) |
22.3 (21.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
120 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
97.0 (71.6) |
| PTO Clutch |
Electro-hydraulic |
| PTO Speed, rpm |
540/1000 |
| PTO Speed, rpm |
540/540E/1000 |
| PTO / Engine Speed, rpm |
540/1969 |
| PTO / Engine Speed, rpm |
540E/1546 |
| PTO / Engine Speed, rpm |
1000/1893 |
| Transmission Type |
Electro Command (40 kph) |
| Gearbox Type |
16F/16R (32F/32R w/creeper), semi-powershift |
| Number of Forward Gears |
16 (32) |
| Number of Reverse Gears |
16 (32) |
| Shuttle Shift |
Electro-hydraulic |
| Clutch Type |
Wet multi-disc |
| Maximum Speed, mph (kph) |
25.0 (40.0) |
| Minimum Speed, mph (kph) |
1.42 (2.27) |
| Minimum Speed (Creeper), mph (kph) |
0.12 (0.19) |
| Transmission Type |
Electro Command (50 kph) |
| Gearbox Type |
17F/16R, semi-powershift |
| Number of Forward Gears |
17 |
| Number of Reverse Gears |
16 |
| Shuttle Shift |
Electro-hydraulic |
| Clutch Type |
Wet multi-disc |
| Maximum Speed, mph (kph) |
31.3 (50.0) |
| Minimum Speed, mph (kph) |
1.42 (2.27) |
| Transmission Type |
Dynamic Command |
| Gearbox Type |
24F/24R, 8-step semi-powershift |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
24 |
| Synchronized Gears |
8 |
| Non-synchronized Ranges |
3 |
| Maximum Speed, mph (kph) |
31.3 (50.0) |
| Minimum Speed, mph (kph) |
1.39 (2.22) |
| Transmission Model |
Auto Command |
| Transmission Type |
Continuously variable transmission (CVT) |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Driving Modes |
Auto, Cruise, Manual, PTO |
| Maximum Speed, mph (kph) |
31.3 (50.0) |
| Minimum Speed, mph (kph) |
0.12 (0.20) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Column |
Tilting and telescopic |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (Std) |
14.9R28 |
| Rear Tire Size (Std) |
18.4R38 |
| Front Tire Size (Opt) |
380/85R28 |
| Rear Tire Size (Opt) |
460/85R38 |
| Hydraulic System Type (Std) |
Fixed displacement |
| Hydraulic System Type (Opt) |
CCLS |
| Implement Pump Flow (Std), gpm (Lpm) |
21.1 (80.0) |
| Implement Pump Flow (Opt), gpm (Lpm) |
33.4 (127.0) |
| Hydraulic Pressure (Std), Bar (psi) |
190 (2755) |
| Hydraulic Pressure (Opt), Bar (psi) |
210 (3050) |
| Steering Pump Flow, gpm (Lpm) |
12.4 (47.0) |
| Steering Pressure, Bar (psi) |
170 (2465) |
| Number of Standard Remote Valves |
3/5 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Electronic draft control |
| Lift Capacity at pin, lb (kg) |
17300 (7865) |
| Lift Capacity at 24" (610mm) behind pin, lb (kg) |
11630 (5285) |
| Wheelbase (4WD), in (mm) |
103.9 (2640) |
| Wheelbase (Terraglide), in (mm) |
105.7 (2685) |
| Wheelbase (Supersteer), in (mm) |
109.8 (2790) |
| Length, in (mm) |
204.3 (5190) |
| Height (Low Profile Cab), in (mm) |
110.4 (2805) |
| Height (Standard Cab), in (mm) |
115.2 (2925) |
| Overall Width, in (mm) |
89.8 (2280) |
| Ground Clearance, in (mm) |
18.8 (478) |
| Turning Radius (4WD), in (mm) |
181.1 (4600) |
| Turning Radius (Supersteer), in (mm) |
169.3 (4300) |
| Shipping Weight (Deluxe), lb (kg) |
11945 (5430) |
| Shipping Weight (SideWinder), lb (kg) |
12495 (5680) |
| Operating Weight (Deluxe), lb (kg) |
13440 (6110) |
| Operating Weight (SideWinder), lb (kg) |
13990 (6360) |
