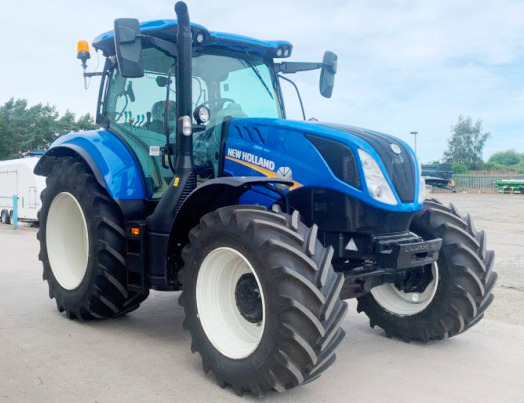

New Holland T6.160 Tractor
The
New Holland T6.160 is a four-wheel drive row-crop tractor. This model was
manufactured from 2012 to 2014. The New Holland T6.160 tractor is powered by FPT
NEF 4-cycle 4-cylinder 4 valve direct injection turbocharged diesel engine with
a maximum output power of 163 Hp (120 kW) at 2200 rpm.
The New Holland T6.160 is fitted with 3 transmission options: 24x24 Dual
Command full powershift transmission, 16x16 Electro Command
semi-powershift transmission, and 17x16 Electro Command semi-powershift
transmission. Max travel speed - 31.3 mph (50 kph), minimum travel speed
- 1.03 mph (1.64 kph). The closed center load sensing hydraulic system
includes a pump with a rated capacity of 29.7 gal/min (113 l/min). The
hydraulic pressure is 210 bar (3050 psi). The New Holland T6.160 is
equipped with a hydrostatic power steering, hydraulic wet disc brakes,
14.9x28 or 380/85R28 front tires, and 18.4x38 or 520/70R38 rear tires.
The wheelbase is 93.9" (2385 mm) for models with 4WD, 96.1" (2440 mm)
for models with Terraglide axle, and 99.8" (2535 mm) for models with
Supersteer axle. The tractor is equipped with the following attachments:
a New Holland 835TL front-end loader with a max lifting height of 146.4"
(3710 mm), and New Holland 845TL front-end loader with a max lifting
height of 156" (3960 mm).
| Engine Model |
FPT NEF |
| Engine Type |
4-cylinder 4 valve direct injection turbocharged diesel |
| Number of Cylinders |
Four, in-line |
| Displacement, cu.in (L) |
274 (4.49) |
| Cylinder Bore, in (mm) |
4.09 (104.0) |
| Piston Stroke, in (mm) |
5.20 (132.0) |
| Aspiration |
Turbocharged |
| Maximum Power, hp (kW) |
163.0 (120.0) |
| Rated Power, hp (kW) |
131.0 (96.0) |
| Rated Speed, rpm |
2200 |
| Maximum Torque, Nm (lb-ft) |
590 (437) |
| Torque Speed, rpm |
1500 |
| Firing Order |
1-3-4-2 |
| Fuel System |
High pressure common rail |
| Fuel System Control |
Electronic |
| Emission Level |
Tier 4 |
| Emission Control |
Selective catalytic reduction (SCR) |
| Fuel Tank Capacity, gal (L) |
46.1 (175.0) |
| Oil Capacity, qts (L) |
16.0 (15.0) |
| Coolant Capacity, qts (L) |
22.3 (21.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
120 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
110.0 (82.0) |
| PTO Clutch |
Wet disc |
| PTO Speed, rpm |
540/1000 |
| PTO Speed, rpm |
540/540E/1000 |
| PTO Speed, rpm |
540E/1000/1000E |
| PTO / Engine Speed, rpm |
540/1969 |
| PTO / Engine Speed, rpm |
540E/1592 |
| PTO / Engine Speed, rpm |
1000/1893 |
| PTO / Engine Speed, rpm |
1000E/1621 |
| Transmission Type |
Dual Command |
| Gearbox Type |
24F/24R (48F/48R w/creeper), Hi-Lo splitter full powershift |
| Number of Forward Gears |
24 (48) |
| Number of Reverse Gears |
24 (48) |
| Synchronized Gears |
8 |
| Non-synchronized Ranges |
3 |
| Maximum Speed, mph (kph) |
25.0 (40.0) |
| Minimum Speed, mph (kph) |
1.03 (1.64) |
| Minimum Speed (Creeper), mph (kph) |
0.10 (0.16) |
| Transmission Type |
Electro Command (40 kph) |
| Gearbox Type |
16F/16R (32F/32R w/creeper), semi-powershift |
| Number of Forward Gears |
16 (32) |
| Number of Reverse Gears |
16 (32) |
| Shuttle Shift |
Electro-hydraulic |
| Clutch Type |
Cerametallic multi-disc |
| Maximum Speed, mph (kph) |
25.0 (40.0) |
| Minimum Speed, mph (kph) |
1.42 (2.27) |
| Minimum Speed (Creeper), mph (kph) |
0.12 (0.19) |
| Transmission Type |
Electro Command (50 kph) |
| Gearbox Type |
17F/16R, semi-powershift |
| Number of Forward Gears |
17 |
| Number of Reverse Gears |
16 |
| Shuttle Shift |
Electro-hydraulic |
| Clutch Type |
Cerametallic multi-disc |
| Maximum Speed, mph (kph) |
31.3 (50.0) |
| Minimum Speed, mph (kph) |
1.42 (2.27) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Column |
Tilting and telescopic |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (Std) |
14.9x28 |
| Rear Tire Size (Std) |
18.4x38 |
| Front Tire Size (Opt) |
380/85R28 |
| Rear Tire Size (Opt) |
520/70R38 |
| Hydraulic System Type |
Closed center load sensing (CCLS) |
| Implement Pump Flow, gpm (Lpm) |
29.7 (113.0) |
| Hydraulic Pressure, Bar (psi) |
210 (3050) |
| Steering Pump Flow, gpm (Lpm) |
12.4 (47.0) |
| Steering Pressure, Bar (psi) |
170 (2465) |
| Number of Standard Remote Valves |
3/4 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Electronic draft control |
| Lift Capacity at pin, lb (kg) |
17300 (7865) |
| Lift Capacity at 24" (610mm) behind pin, lb (kg) |
11630 (5285) |
| Wheelbase (4WD), in (mm) |
93.9 (2385) |
| Wheelbase (Terraglide), in (mm) |
96.1 (2440) |
| Wheelbase (Supersteer), in (mm) |
99.8 (2535) |
| Length, in (mm) |
192.1 (4880) |
| Height (Low Profile Cab), in (mm) |
112.4 (2855) |
| Height (Standard Cab), in (mm) |
117.2 (2975) |
| Overall Width, in (mm) |
91.1 (2315) |
| Ground Clearance, in (mm) |
20.8 (528) |
| Turning Radius (4WD), in (mm) |
159.1 (4040) |
| Turning Radius (Supersteer), in (mm) |
147.8 (3755) |
| Weight (4WD), lb (kg) |
10760 (4890) |
| Weight (Terraglide), lb (kg) |
11420 (5190) |
| Weight (Supersteer), lb (kg) |
11375 (5170) |
