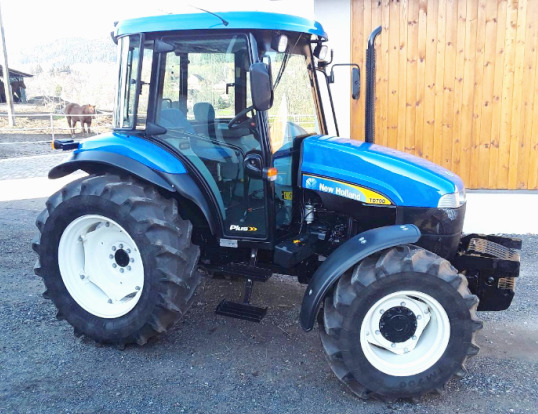

New Holland TD70D Tractor
The
New Holland TD70D is a 2-wheel drive or 4-wheel drive utility tractor from TDD
series. This model was manufactured between 2004 and 2008. The New Holland TD70D
tractor is powered by Iveco 8035.25 4-stroke 3-cylinder direct injection
turbocharged diesel engine. A 179 cubic inches (2.93L) engine has a cylinder
bore of 4.09" (104 mm), piston stroke of 4.53" (115 mm), rated power of 68 hp
(50.7 kW), and 272 Nm (201.3 lb-ft) of peak torque at 1500 rpm.
The New Holland TD70D is fitted with 2 transmission options: Synchro
Command transmission with 12 forward and 4 reverse gears, and Synchro
Shuttle transmission with 20 forward and 12 reverse gears. The maximum
forward/reverse speed - 18,7 mph (30 kph). The open center hydraulic
system includes a gear pump with rated fluid flow of 10.6 gpm (40 lpm)
or 13.8 gpm (52 lpm). The hydraulic pressure is 190 bar (2755 psi).
The New Holland TD70D was equipped with a hydrostatic steering system,
mechanical disc brakes, 13.6R24 front tires, and 16.9R34 rear tires. The
wheel base is 86" (2175 mm) for models with 2WD and 83.5" (2120 mm) for
models with 4WD.
| Engine Model |
Iveco 8035.25 |
| Engine Type |
4 stroke direct injection diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
179 (2,93) |
| Engine Bore, in (mm) |
4,09 (104,0) |
| Engine Stroke, in (mm) |
4,53 (115,0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
68,0 (50,7) |
| Rated Engine Speed, rpm |
2500 |
| Maximum Torque, Nm (ft-lbs) |
272 (201,3) |
| Torque Speed, rpm |
1500 |
| Torque Rise |
41% |
| Emission Level |
Tier 2 |
| Fuel System |
Bosch fuel injection |
| Fuel Tank Capacity, gal (L) |
23,8 (90,0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
45 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
56,7 (42,3) |
| PTO Speeds, rpm |
540/540E/1000 |
| PTO / Engine Speeds, rpm |
540/2200 |
| PTO / Engine Speeds, rpm |
540E/1715 |
| PTO / Engine Speeds, rpm |
1000/2381 |
| Transmission Type |
Synchro Command |
| Gearbox Type |
12F/4R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Maximum Speed (Forward), mph (kph) |
18,7 (30,0) |
| Transmission Type |
Synchro shuttle (with Creeper) |
| Gearbox Type |
20F/12R |
| Number of Forward Gears |
20 |
| Number of Reverse Gears |
12 |
| Maximum Speed (Forward), mph (kph) |
18,7 (30,0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic Steering |
| Service Brake |
Mechanical disc brake |
| Front Tire Size |
13.6 R24 |
| Rear Tire Size |
16.9 R34 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
10,6 (40,0) |
| Steering Pump Flow, gpm (Lpm) |
7,0 (26,5) |
| Optional Hydraulic Pump Flow, gpm (Lpm) |
13,8 (52,0) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| Number of Standard Remote Valves |
3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Link draft sensing |
| Standard Lift Capacity 24-in behind pin, lb (kg) |
4970 (2260) |
| Standard Lift Capacity at lift pin, lb (kg) |
6600 (3000) |
| Wheelbase (2WD), in (mm) |
86,0 (2175) |
| Wheelbase (4WD), in (mm) |
83,5 (2120) |
| Length (2WD), in (mm) |
157,3 (3979) |
| Length (4WD), in (mm) |
157,7 (3990) |
| Height, in (mm) |
99 (2530) |
| Overall Width, in (mm) |
71 (1810) |
| Ground Clearance, in (mm) |
15 (371) |
| Front Track Width (2WD), in (mm) |
56,1-75,8 (1418-1918) |
| Front Track Width (4WD), in (mm) |
57,1-74,1 (1445-1875) |
| Rear Track Width, in (mm) |
56,3-76,1 (1425-1925) |
| Turning Radius, in (mm) |
193 (4900) |
| Weight (2WD Cab), lb (kg) |
6250 (2840) |
| Weight (4WD Cab), lb (kg) |
6780 (3080) |
| Weight (2WD ROPS), lb (kg) |
5830 (2650) |
| Weight (4WD ROPS), lb (kg) |
6425 (2920) |
