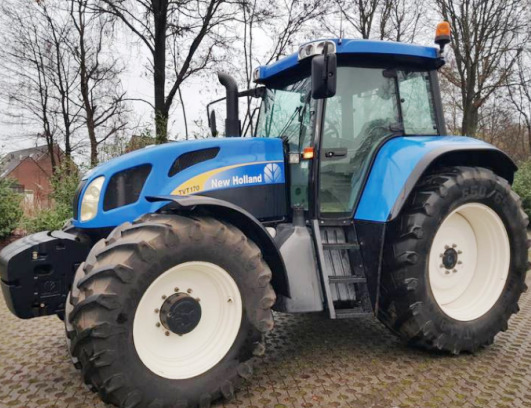

New Holland TVT170 Tractor
The
New Holland TVT 170 is a 4WD (4x4) farm tractor. This model was manufactured
between 2004 and 2007. The New Holland TVT170 powerline components: Sisu Diesel
620 4-stroke 6-cylinder direct injection turbocharged air-cooled diesel engine
and Auto Command 3-range continuously variable transmission with infinite
forward and reverse gears.
A 403 cubic inches (6.6L) engine has a cylinder bore of 4.25" (108 mm),
piston stroke of 4.72" (120 mm), max power of 171.7 hp (128 kW), and 725
Nm (536,5 lb-ft) peak torque at 1400 rev/min.
The maximum speed - 31.1 mph (50 km/h), minimum speed - 6.8 mph (10.8
km/h). The closed center load sensing hydraulic system includes a piston
pump with rated fluid flow of 34.2 gpm (130 lpm). The hydraulic pressure
is 205 bar (2970 psi). The New Holland TVT 170 was equipped with a
hydrostatic steering system, hydraulic disc brakes, 540/65R28 front
tires, and 650/65R38 rear tires. The wheelbase is 112.4 in (2832 mm).
| Engine Model |
Sisu Diesel 620 |
| Engine Type |
4-stroke, 6-cyl. liquid-cooled diesel |
| Cylinder Bore, mm (in) |
108,0 (4,25) |
| Piston Stroke, mm (in) |
120,0 (4,72) |
| Displacement, L (cu in) |
6,6 (403,0) |
| Cylinders |
6 |
| Gross power, kw (Hp) |
128,0 (171,7) |
| Gross power boost, kw (Hp) |
142,0 (190,4) |
| Aspiration |
Turbocharged |
| Intercooled |
Air cooled |
| Engine cooled |
Water cooled |
| Emission level |
Tier 2 |
| Engine speed, rpm |
1900 |
| Maximum Torque, Nm (lb-ft) |
725 (536,5) |
| Maximum Torque Boost, Nm (lb-ft) |
800 (592) |
| Maximum torque speed, rpm |
1400 |
| Firing order |
1-5-3-6-2-4 |
| Compression ratio |
18,5:1 |
| Combustion |
Direct injection |
| Compression pressure, Bar |
24 |
| Direction of rotation from the engine front |
Clockwise |
| Fuel Type |
Diesel |
| Rear PTO type |
Electro-hydraulic |
| Rear PTO speeds, rpm |
540/540E/1000/1000E |
| Engine at rear PTO speeds, rpm |
1878/1608/1869/1600 |
| Front PTO |
Optional |
| Front PTO speed, rpm |
1000 |
| Engine at front PTO speed, rpm |
1869 |
| Transmission Model |
Auto Command |
| Transmission Type |
Continuously variable transmission |
| Number of Forward Gears |
Infinite (3-range) |
| Number of Reverse Gears |
Infinite (3-range) |
| Maximum travel speed, km/h (mph) |
50,0 (31,1) |
| Minimum travel speed, km/h (mph) |
10,8 (6,8) |
| Drive Wheels |
4WD 4x4 |
| Steering Type |
Hydrostatic |
| Brakes Type |
Hydraulic disc |
| Front Tires |
540/65 R28 |
| Rear Tires |
650/65 R38 |
| Front track width (minimum), mm (in) |
1908 (75,7) |
| Rear track width (minimum), mm (in) |
1870 (74,2) |
| Hydraulic system type |
Closed centre load sensing |
| Total oil flow, lpm (gpm) |
130 (34,2) |
| Maximum hydraulic pressure, bar (psi) |
205 (2970) |
| Control |
Electronic Draft Control |
| Remote valves type |
Deluxe |
| Remote valves maximum number |
5 |
| Rear hitch category |
2 |
| Maximum lift capacity at ball ends with arms horizontal, kg (lbs) |
9900 (21780) |
| Continuous lift capacity through the range (610 mm behind bar ends), kg (lbs) |
7100 (15620) |
| Front hitch max. lift capacity, kg (lbs) |
4000 (8800) |
| Wheelbase, mm (in) |
2832 (112,4) |
| Overall length inc. weight pack and rear linkage, mm (in) |
4766 (189,2) |
| Minimum width, mm (in) |
2492 (98,9) |
| Overall height, mm (in) |
3000 (119,1) |
| Ground clearance, mm (in) |
500 (19,85) |
| Standard turning radius, mm (in) |
5400 (214,3) |
| Turning angle, degrees |
50 degrees |
| Weight (minimum), kg (lbs) |
6770 (14895) |
| Weight (maximum permissible), kg (lbs) |
11500 (25300) |
