Case IH 1294 Troubleshooting
The

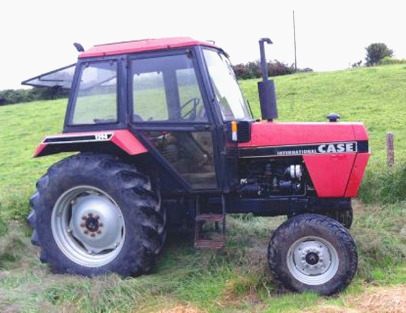

Case IH 1294 farm tractor was manufactured between 1984 and 1985. The components
of Case IH 1294 powerline system: AD4.55 4 cylinders direct injection
water-cooled naturally aspirated diesel engine and mechanical synchromesh
transmission with 12 forward and 4 reverse gears.
A 219.1 cubic inches (3.6 L) engine has a cylinder bore of 3.94" (100 mm), piston stroke of 4.49" (114 mm), rated power of 62 hp (46.2 kW), and 223 Nm (165.1 lb-ft) maximum torque at 1250 rpm. Max. travel speed (forward and reverse): 19.7 mph (31.7 km/h) / 11.6 mph (18.7 km/h).
The open center hydraulic system used a gear pump with rated fluid flow of 7.8 gal/min (29 l/min). The hydraulic system pressure is 176 bar (2550 psi). The Case IH 1294 was equipped with a hydrostatic power steering, mechanical drum brakes, 7.50R16 front tires, and 13.6R38 rear tires. The wheelbase is 82.7 in (2100 mm).
| Diesel Engine Troubleshooting |
| Diesel hard to start or doesn't start |
There is air in the fuel system - Bleed the system.
Fuel filter plugging - Change filter element.
Dirty or damaged injection nozzles - Clean or change injection nozzles.
Water in the fuel system - Change fuel and repair fuel system.
Incorrect valve clearance - Check and adjust.
Fuel injection pump is not operating properly - Change or repair the pump.
| Engine starts but then stops |
Clogged air filter element - Clean or change the filter.
Fuel filter element is dirty - Filter maintenance required.
Fuel injection pump leakage - Check the fuel injection pump for leaks and fix it.
Fuel injector fault - Clean or replace fuel injectors.
Defective fuel injection pump - Change or repair the pump.
| Engine stops unexpectedly during operation |
Coolant temperature is low - Warm up the engine.
Fuel filter element is dirty - Change filter element.
There is air in the fuel system - Bleed the system.
Clogged injection nozzle - Change fuel injection nozzles.
Wrong setting of fuel injection pump timing - Adjust according to specifications.
| Engine stalls at low idle speed |
Low idle speed setting is incorrect - Normalize low idle speed.
Fuel injection pump malfunctioning - Rebuild or change fuel pump.
Fuel injectors are faulty or clogged - Inspect fuel injectors and change as required.
Valve clearance is wrong - Adjustment procedure required.
| Engine power is reduced |
Clogged air filter - Clean or replace element.
Fuel injection nozzles are damaged or dirty - Change fuel injection nozzles.
Improper fuel injection pressure - Correct the pressure settings.
Excessive valve clearance - Adjust to proper valve clearance.
Wrong adjustment of low idle speed - Adjustment required.
Fuel lines or hoses are dirty - Clean fuel hoses and lines.
Cylinder head gasket is defective - Replace the gasket as required.
Piston rings are damaged or leaking - Replace piston rings.
| Engine overheats |
Insufficient coolant fluid - Add coolant fluid and inspect the cooling system for leaks.
Low engine oil level - Fill the crankcase with engine oil.
Dirty radiator fins or faulty radiator cap - Clean radiator or replace cap.
Broken or loose fan belt - Change as required.
Engine overload - Reduce the load or operate the tractor in lower gears.
| Insufficient oil pressure |
Not enough oil in the engine - Fill up the engine oil.
Clogged oil filter element - Clean or change engine oil filter.
Incorrect oil viscosity - Use the specified type of engine oil.
Incorrect oil clearance in main bearing - Bearing needs to be changed.
Oil pump malfunction - Repair or change.
| Engine noises or knocks |
Engine oil insufficient - Fill the crankcase with engine oil.
Coolant temperature is low - Warm up to required temperature.
Fuel injection pump timing is not adjusted - Check the fuel injection pump timing adjustment.
Too low idle RPM - Adjustment required.
Fuel injectors are faulty or clogged - Clean or replace fuel injectors.
Connecting rod is misaligned or defective - Connecting rod needs to be replaced or aligned.
Piston wear or scoring - Replace the pistons as required.
| Transmission Troubleshooting |
| Insufficient transmission oil pressure |
Lack of transmission oil supply - Fill the transmission housing to proper oil level.
Transmission oil filter element clogging (if equipped) - Service or replace the transmission oil filter.
Defective relief valve - Install a new relief valve.
| Transmission noises |
Lack of transmission oil supply - Fill the transmission housing with oil.
Transmission oil is dirty - Change the oil.
Incorrect backlash or gears are worn - Install new gears and adjust backlash properly.
Bearings are cracked or worn - Change faulty bearings.
Worn or bent gear shift forks - Change the shift forks.
Shaft splines are damaged or worn - Install a new shaft.
| Hard shifting |
Worn or rusty gear shift linkage - Shift linkage need to be replaced.
Damaged or worn gear shift forks - Change defective shift forks.
Gearshift mechanism is damaged - Replace or repair the mechanism.
Clutch is faulty or misadjusted - Change or adjust clutch.
| Transmission oil leaks |
High transmission fluid level - Drain the excess fluid.
Broken seals or gaskets - Gaskets or seal replacement required.
| Hydraulic System Troubleshooting |
| Hydraulic oil pressure too low |
Low hydraulic fluid level - Fill the system to proper hydraulic fluid level.
Dirty hydraulic oil filter element - Clean the hydraulic filter or install new filter element.
Defective hydraulic pump - Change or repair hydraulic oil pump.
Not adjusted hydraulic spool valve - Need to adjust spool valve.
Hydraulic cylinder malfunction - Change or repair hydraulic cylinder.
Leaks in hydraulic lines - Inspect hydraulic system for leaks and repair it.
| Hydraulics overheating |
Main relief valve is defective - Change relief valve.
Wrong hydraulic oil type - Fill up with the correct type of oil.
Hydraulic fluid contamination - Change hydraulic fluid.
Air in hydraulic system - Bleed air from hydraulic system.
| 3-point hitch won't lift or lifts slowly |
Heavy load on the hitch - Reduce hitch load.
Hydraulic oil is insufficient - Fill the system to proper hydraulic oil level.
Hydraulic oil filter element is clogged - Clean the hydraulic filter or install new filter element.
Hydraulic pump is defective - Replace or repair hydraulic fluid pump.
Damaged main relief valve - Relief valve replacement required.
Hydraulic spool valve is defective - Change or repair hydraulic valve.
Hydraulic cylinder failure - Repair or change hydraulic cylinder.
Loose or broken suction line - Tighten the pipe or replace it.
| 3-point hitch can't drop or drops too slowly |
Incorrect adjusted hydraulic control valve - Adjust correctly.
Faulty hydraulic cylinder - Repair or change hydraulic cylinder.
The hitch is not adjusted - The hitch must be adjusted.
Damaged lift arm shaft - Install a new shaft.
| Hitch lift or drop is jerky |
Air in hydraulic system - Bleed air from hydraulic system.
Dirty hydraulic fluid - The fluid must be changed.
Hydraulic pump failure - Install a new hydraulic fluid pump.
Faulty hydraulic spool valve - Replace or repair the valve.
Hydraulic cylinder malfunction - Repair or replace hydraulic cylinder.
| Steering Troubleshooting |
| Steering wheel is difficult to turn |
Improperly assembled or defective steering column - Reassemble or change the steering column.
Air in the hydraulic steering system - Bleed the steering system.
Not adjusted toe-in - Adjust toe-in wheels.
Uneven wear on front tyres - Replace the tyres.
Steering pump stopped working - Install a new hydraulic steering pump.
Stuck or worn pump flow control valve - Service or change control valve.
Low steering oil level - Fill up the steering oil.
| Steering wheel free play is excessive |
Steering column coupling or shaft is extremely worn out - Replace defective component.
Steering pump failure - Install a new hydraulic steering pump.
Worn or loose steering linkage joints - Inspect and replace as required.
| Tractor pulls to left or right |
Front tyres wear unevenly - Change the tyres.
Improper toe-in - Adjust toe-in wheels.
Steering linkage joints are worn or loose - Change or repair steering linkage.
Worn or incorrectly adjusted or worn front wheel bearings - Change or adjust the bearings properly.
| Electrical System Troubleshooting |
| Battery won’t charge |
Loose or corroded cable connections - Tighten or clean electrical wiring connections.
Electrical terminal connectors are defective - Change terminal connectors.
Faulty cell in battery - Battery replacement required.
Loose or defective belt - Replace belt or adjust belt tension.
| Starter cranks slow |
Low battery voltage - Recharge the battery.
Battery is draining quickly - Service or change the battery.
Wires are disconnected or battery terminals are corroded - Check cable connections and change or clean terminals.
| Starter will not crank |
Battery is discharged or worn - Need to charge or replace the battery.
Wiring is improperly connected or disconnected - Check wiring and connect properly.
Battery power is low - Low battery charging, charge as required.
Faulty starter motor - Starter needs to be changed.
