Case IH 2394 Specifications
The

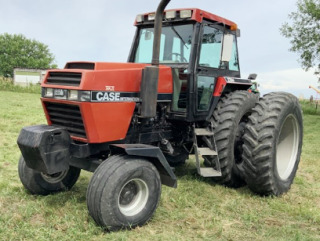

Case IH 2394 is a two-wheel drive row-crop tractor. This model was manufactured
from 1984 to 1988. The tractor is powered by 504 cu.in (8.3 L) Case 504BD
4-stroke 6-cylinder turbocharged diesel engine with a rated power of 197 hp (147
kW).
The Case IH 2394 is fitted with a two transmission options: power shift
transmission with 12 forward and 3 reverse gears, or power shift
transmission with 24 forward and 3 reverse gears. The maximum travel
speed (forward/reverse): 19.3 mph (31.1 km/h) and 6.5 mph (10.5 km/h).
The closed center hydraulic system has a piston pump with a rated
capacity of 27 gpm (102.3 lpm). The hydraulic system pressure is 155 bar
(2250 psi). The Case IH 2394 is equipped with a hydrostatic power
steering, hydraulic wet disc brakes, 11.00x16 or 14Lx16 front tyres, and
24.5x32 or 30.5x32 rear tyres The wheelbase is 118" (2990 mm).
| Engine Model |
Case 504BD |
| Engine Type |
4 Stroke, six cylinders turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
504 (8,3) |
| Engine Bore, in (mm) |
4,61 (117,0) |
| Engine Stroke, in (mm) |
5,00 (127,0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
197,0 (146,9) |
| Rated Engine Speed, rpm |
2100 |
| Compression |
16.0:1 |
| Fuel Tank Capacity, gal (L) |
85,0 (321,6) |
| Oil Capacity, qts (L) |
30,0 (28,4) |
| Coolant Capacity, qts (L) |
44,0 (41,6) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
72 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
160,0 (119,3) |
| PTO Speeds, rpm |
1000 |
| Transmission Type |
Power Shift |
| Gearbox Type |
12F/3R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
3 |
| Power Shift Steps |
3 |
| Oil Capacity, qts (L) |
128,0 (121,2) |
| Maximum Speed (Forward), mph (kph) |
19,3 (31,1) |
| Maximum Speed (Reverse), mph (kph) |
6,5 (10,5) |
| Transmission Type |
Power Shift |
| Gearbox Type |
24F/3R |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
3 |
| Clutch Type |
Hydraulic wet disc |
| Oil Capacity, qts (L) |
128,0 (121,2) |
| Maximum Speed (Forward), mph (kph) |
19,3 (31,1) |
| Maximum Speed (Reverse), mph (kph) |
6,5 (10,5) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Hydraulic wet disc |
| Front Tire Size (Std) |
11.00x16 |
| Rear Tire Size (Std) |
24.5x32 |
| Front Tire Size (Opt) |
14Lx16 |
| Rear Tire Size (Opt) |
30.5x32 |
| Hydraulic System Type |
Closed center |
| Implement Pump Flow, gpm (Lpm) |
27,0 (102,3) |
| Steering Pump Flow, gpm (Lpm) |
8,0 (30,5) |
| Hydraulic Pressure, Bar (psi) |
155 (2250) |
| Steering Pressure, Bar (psi) |
138 (2000) |
| Hydraulic Oil Capacity, gal (L) |
32,0 (121,2) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category |
3/3N |
| Standard Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
7750 (3515) |
| Wheelbase, in (mm) |
118 (2990) |
| Length, in (mm) |
170 (4320) |
| Height, in (mm) |
117 (2960) |
| Overall Width, in (mm) |
96 (2430) |
| Rear Tread, in (mm) |
60 to 110 (1520 to 2790) |
| Weight (Shipping), lb (kg) |
14270 (6475) |
| Weight (Operating), lb (kg) |
16240 (7370) |
| Weight (Maximum), lb (kg) |
20500 (9300) |
