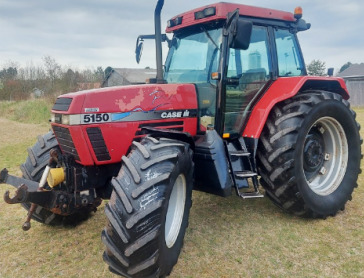

Case IH 5150 Maxxum Specifications
The
Case IH 5150 is a two-wheel drive or four-wheel drive farm tractor from Maxxum
series. This model was manufactured between 1992 and 1997. The Case IH Maxxum
5150 tractor is powered by 359 cu.in (5.9 L) Cummins 6T-590 6-cylinder direct
injection turbocharged diesel engine with a rated power of 132 hp (98.4 kW).
The Case IH Maxxum 5150 is fitted with a two transmission options:
powershift transmission with 16 forward and 12 reverse gears, or creeper
transmission with 24 forward and 20 reverse gears. The maximum travel
speed (forward/reverse): 24.9 mph (40 km/h) and 13.7 mph (22 km/h).
The open center hydraulic system has a gear pump with a rated capacity
of 20.7 gpm (78.3 lpm). The hydraulic system pressure is 190 bar (2755
psi). The 2WD models are equipped with 16.9R24 front tires and 18.4R38
rear tires. The 380/70R28 front tires and 520/70R38 rear tires are used
for 4WD tractors. The wheelbase is 101.8 in (2580 mm).
| Engine Model |
Cummins 6T-590 |
| Engine Type |
4-stroke, direct injection, turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
359 (5,88) |
| Engine Bore, in (mm) |
4,02 (102,0) |
| Engine Stroke, in (mm) |
4,72 (120,0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
132,0 (98,4) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
455 (336) |
| Torque Speed, rpm |
1200 |
| Idle Speed, rpm |
850-2355 |
| Compression |
17.5:1 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
45,0 (170,0) |
| Oil Capacity, qts (L) |
15,9 (15,0) |
| Coolant Capacity, qts (L) |
22,0 (20,8) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
65 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
112,0 (83,5) |
| PTO Clutch |
Hydraulic wet disc |
| PTO Speeds, rpm |
540/1000 |
| PTO / Engine Speeds, rpm |
540/1880 |
| PTO / Engine Speeds, rpm |
1000/2200 |
| Transmission Type |
Power shift |
| Gearbox Type |
16F/12R, 4-Speed power shift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Hydraulic wet disc |
| Maximum Speed (Forward), mph (kph) |
24,9 (40,0) |
| Maximum Speed (Reverse), mph (kph) |
13,7 (22,0) |
| Transmission Type |
Powershift with creeper |
| Gearbox Type |
24F/20R |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
20 |
| Clutch Type |
Hydraulic wet disc |
| Maximum Speed (Forward), mph (kph) |
24,9 (40,0) |
| Maximum Speed (Reverse), mph (kph) |
13,7 (22,0) |
| Maximum Forward Speed (Creeper), mph (kph) |
1,3 (2,1) |
| Maximum Reverse Speed (Creeper), mph (kph) |
1,5 (2,5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet disc |
| Front Tire Size |
16.9R24 |
| Rear Tire Size |
18.4R38 |
| Hydraulic System Type |
Open Center |
| Implement Pump Flow, gpm (Lpm) |
20,7 (78,3) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| Hydraulic Capacity, gal (L) |
20,1 (76,3) |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Electro-hydraulic lower-link draft sensing |
| Standard Lift Capacity 24-in behind pin, lb (kg) |
11700 (5340) |
| Wheelbase, in (mm) |
101,8 (2580) |
| Length, in (mm) |
175,3 (4450) |
| Height, in (mm) |
107,6 (2730) |
| Overall Width, in (mm) |
86,8 (2200) |
| Ground Clearance, in (mm) |
18,3 (460) |
| Front Tread, in (mm) |
60-88 (1520-2230) |
| Rear Tread, in (mm) |
60-100 (1520-2540) |
| Weight (Shipping), lb (kg) |
11400 (5190) |
| Weight (Operating), lb (kg) |
12350 (5600) |
