Case IH 885 Specifications

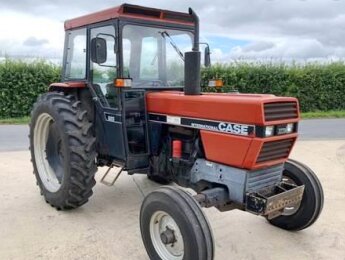

The Case IH 885 utility tractor was manufactured between 1985 and 1990. The Case IH 885 tractor is powered by Case International D268 4-cylinder direct injection diesel engine.

A 268 cubic inches (4.4 L) engine has a cylinder bore of 3.94" (100 mm), piston stroke of 5.5" (139.7 mm), and rated power of 79 hp (58.9 kW). The Case IH 885 is fitted with a 3 transmission options: 8x4 synchronized transmission, 16x8 partial powershift transmission, or 8x4 shuttle transmission. The maximum forward speed - 22.4 mph (36 km/h), maximum reverse speed - 10.8 mph (17.4 km/h).

The open center hydraulic system includes a gear pump with rated fluid flow of 15.8 gal/min (59.8 l/min). The main relief pressure is 173 bar (2500 psi). The tractor is equipped with a hydrostatic power steering, independent hydraulic wet brakes, 7.50-18 (2WD) or 11.2-24 (4WD) front tyres, and 18.4-30 rear tyres. The wheelbase is 88" (2230 mm) for two-wheel drive tractors and 85.2" (2160 mm) for four-wheel drive tractors.

Engine
Engine Model Case International D268
Engine Type 4-stroke, direct injection diesel
Number of Cylinders 4
Displacement, cu in (L) 268 (4,37)
Engine Bore, in (mm) 3,94 (100,0)
Engine Stroke, in (mm) 5,50 (139,7)
Aspiration Natural
Rated Engine Power, hp (kW) 79,0 (58,9)
Rated Engine Speed, rpm 2400
Maximum Torque, Nm (ft-lbs) 296 (219,1)
Torque Speed, rpm 1300
Idle Speed, rpm 650-2650
Compression 15.1:1
Fuel Tank Capacity, gal (L) 20,0 (75,7)
Oil Capacity, qts (L) 9,0 (8,5)
Coolant Capacity, qts (L) 14,5 (13,7)
Electrical System Rating, Volts 12
Charging System Alternator
Alternator Rating, Amps 65

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 72,0 (53,7)
PTO Speeds, rpm 540/1000

Standard Transmission
Transmission Type Synchronized
Gearbox Type 8F/4R
Number of Forward Gears 8
Number of Reverse Gears 4
Maximum Forward Speed, mph (kph) 21,1 (34,0)
Maximum Reverse Speed, mph (kph) 10,8 (17,4)

Optional Transmission
Transmission Type Partial powershift
Gearbox Type 16F/8R
Number of Forward Gears 16
Number of Reverse Gears 8
Maximum Forward Speed, mph (kph) 21,1 (34,0)
Maximum Reverse Speed, mph (kph) 10,8 (17,4)

Optional Transmission
Transmission Type Shuttle
Gearbox Type 8F/4R
Number of Forward Gears 8
Number of Reverse Gears 4
Maximum Forward Speed, mph (kph) 22,4 (36,0)
Maximum Reverse Speed, mph (kph) 10,8 (17,4)

Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Hydrostatic power
Service Brake Independent hydraulic wet disc
Front Tire Size (2WD) 7.50-18 F2
Rear Tire Size (2WD) 18.4-30 R1
Front Tire Size (4WD) 11.2-24 R1
Rear Tire Size (4WD) 18.4-30 R1

Hydraulic System
Hydraulic System Type Open Center
Implement Pump Type Gear
Implement Pump Flow, gpm (Lpm) 15,8 (59,8)
Steering Pump Flow, gpm (Lpm) 2,5 (9,6)
Hydraulic Pressure, Bar (psi) 173,0 (2500)
Hydraulic Capacity, gal (L) 9,7 (36,5)
Number of Standard Remote Valves 1/3
3-Point Hitch Category 2
Standard Lift Capacity at 24-in (610 mm) ahead pin, lb (kg) 3260 (1480)

Dimensions and Weight
Wheel Base (2WD), in (mm) 88 (2230)
Wheel Base (4WD), in (mm) 85,2 (2160)
Length (2WD), in (mm) 142 (3600)
Length (4WD), in (mm) 148 (3750)
Overall Width (2WD), in (mm) 73,2 (1850)
Overall Width (4WD), in (mm) 78 (1980)
Height, in (mm) 97,4 (2470)
Clearance, in (mm) 18,2 (460)
Turning radius (2WD), in (mm) 154 (3900)
Turning radius (4WD), in (mm) 174 (4400)
Weight (Operating, 2WD), lb (kg) 7370 (3340)
Weight (Operating, 4WD), lb (kg) 7850 (3560)
