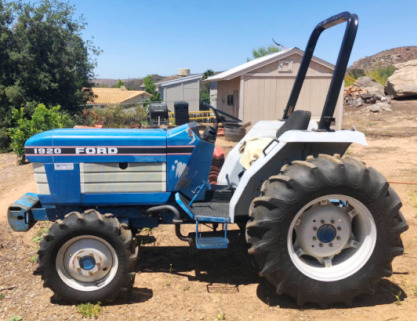

Ford 1920 Tractor
The
Ford 1920 is a 2WD or 4WD compact utility tractor from twenty compact series.
This model was manufactured between 1987 and 2000. The Ford 1920 driveline
includes a 121.7 cu.in (2 L) Shibaura N844 four-cylinder naturally aspirated
water-cooled diesel engine with a rated power of 32 hp (23.9 kW), and 12x4
unsynchronized gear transmission or 12x12 mechanical shuttle transmission.
The maximum travel speed (forward and reverse): 13.4 mph (21.6 km/h) and
9.2 mph (14.8 km/h). The open center hydraulic system used a gear pump
with fluid flow rate of 7.8 gpm (29.5 lpm). The hydraulic pressure is
2130 psi (147 bar).
The 2-wheel drive models are equipped with 5.50x16 front tires and
13.6x24 rear tires. The 4-wheel drive tractors fitted with 7.0x16 or
25x8.5-14 front tires and 13.6x24 or 27x8.5-15 rear tires. The wheelbase
is 69.9" (1770 mm). The 1920 tractor is compatible with the following
attachments: front-mount Ford 715A snow blower,
Ford 7108 front end
loader, and Ford 758B backhoe.
Engine Model |
Shibaura N844 |
Engine Type |
Water-cooled, 4-cycle, four cylinder diesel |
Number of Cylinders |
4 |
Displacement, cu in (L) |
121.7 (2.0) |
Engine Bore, in (mm) |
3.31 (84.0) |
Engine Stroke, in (mm) |
3.54 (90.0) |
Block Design |
Parent bore |
Aspiration |
Naturally aspirated |
Rated Engine Power, hp (kW) |
32.0 (23.9) |
Maximum Engine Power, hp (kW) |
33.3 (24.8) |
Rated Engine Speed, rpm |
2500 |
Compression |
19:1 |
Firing Order |
1-3-4-2 |
Fuel System |
In-Line Pump |
Fuel System Control |
Mechanical |
Fuel Injection to combustion chamber |
Indirect |
Emission Level |
Tier 2 |
Exhaust Pipe |
Horizontal |
Fuel Tank Capacity, gal (L) |
9.8 (37.1) |
Electrical System Rating, Volts |
12 |
Alternator Rating, Amps |
40 |
PTO Operational Type (Std) |
Transmission |
PTO Operational Type (Opt) |
Live (Opt) |
PTO Horsepower, hp (kW) |
28.5 (21.3) |
Rear PTO Speed, rpm |
540 |
Transmission Type |
Unsynchronized gear |
Gearbox Type |
12F/4R |
Number of Forward Gears |
12 |
Number of Reverse Gears |
4 |
Clutch Type |
Dry Disc |
Maximum Forward Speed, mph (kph) |
12.5 (20.1) |
Maximum Reverse Speed, mph (kph) |
8.7 (14.0) |
Transmission Type |
Mechanical shuttle |
Gearbox Type |
12F/12R |
Number of Forward Gears |
12 |
Number of Reverse Gears |
12 |
Oil Capacity, qts (L) |
27.0 (28.0) |
Maximum Forward Speed, mph (kph) |
13.4 (21.6) |
Maximum Reverse Speed, mph (kph) |
9.2 (14.8) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front Steer |
Steering System (2WD/4WD) |
Power |
Service Brake |
Wet disc |
Front Tire Size (2WD) |
5.50-16 |
Front Tire Size (4WD) |
7.00-16 |
Rear Tire Size (2WD/4WD) |
13.6-24 |
Front Tire Size (Turf) |
25x8.5-14 |
Rear Tire Size (Turf) |
27x8.5-15 |
Front Tread (2WD), in (mm) |
43.1-57.0 (1090-1440) |
Front Tread (4WD), in (mm) |
45.5 (1150) |
Rear Tread, in (mm) |
45.7-61.0 (1160-1540) |
Hydraulic System Type |
Open center |
Implement Pump Flow, gpm (Lpm) |
7.8 (29.5) |
Steering Pump Flow, gpm (Lpm) |
2.8 (11.5) |
Total Flow, gpm (Lpm) |
10.6 (40.2) |
Hydraulic Pressure, Bar (psi) |
147 (2130) |
Hydraulic System Capacity, gal (L) |
7.7 (29.2) |
3-Point Hitch Category |
1 |
Draft Sensing or Lift Control |
Draft control (Opt) |
Standard Lift Capacity 24-in behind pin, lb (kg) |
1880 (850) |
Wheelbase, in (mm) |
69.9 (1770) |
Length, in (mm) |
126.4 (3210) |
Overall Width, in (mm) |
58.5 (1480) |
Height (ROPS), in (mm) |
90 (2280) |
Ground Clearance (2WD), in (mm) |
12.6 (320) |
Ground Clearance (4WD), in (mm) |
11.8 (290) |
Weight (2WD), lb (kg) |
2850 (1290) |
Weight (4WD), lb (kg) |
3070 (1395) |
