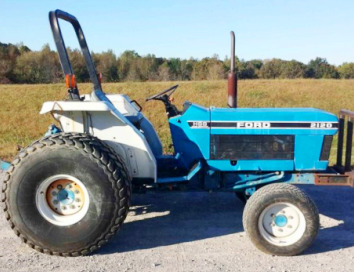

Ford 2120 Tractor Maintenance
The
Ford 2120 compact utility tractor was manufactured by Shibaura built from 1987
to 1991. The Ford 2120 driveline system components: Shibaura T854 four-cylinder
water cooled diesel engine and 12x12 hydraulic shuttle shift transmission (HSS),
or unsynchronized gear transmission with 12 forward and 4 reverse gears.
A 138.4 cubic inches (2.27 L) engine has a cylinder bore of 3.35" (85
mm), piston stroke of 3.94" (100 mm), and rated power of 42.6 hp (31.8
kW). Max. forward speed - 15 mph (24.2 km/h), maximum reverse speed - 14
mph (22.4 km/h).
The open center hydraulic system includes a gear pump with rated fluid
flow of 9.3 (35.2) liters per minute. The main relief pressure is 2130
psi (147 bar). The 2-wheel drive models are equipped with 6.00x16 (AG)
or 25x8.50-14 (Turf) front tires and 13.6x28 (AG) or 14.9x26 (Turf) rear
tires. The 8.00x18 (AG) or 27x8.50-15 (Turf) front tires and 13.6x28
(AG) or 18.4x16.1 (Turf) rear tires are used for tractors with 4-wheel
drive. The wheel base is 74.8 inches (1890 mm). Compatible attachments
for the Ford 2120 tractor: a 84" front-mount blade, Ford 758B backhoe,
and Ford 7109 front end loader with lift capacity to maximum height of
1800 lbs (816 kg).
| Engine oil capacity, qts (L) |
8.5 (8.0) |
| Engine coolant capacity, qts (L) |
8.0 (7.5) |
| Transmission/Hydraulic system capacity, gal (L) |
8.7 (33.0) |
| Front axle oil capacity, qts (L) |
4.4 (4.2) |
| Steering oil capacity, qts (L) |
1.9 (1.8) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 15W-40, 10W-30, SAE 10W |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission/Hydraulic fluid type |
134D, SAE 10W-30 |
| Front axle oil type |
134D, Gearlube 80W-90 |
| Steering oil type |
134D, Gearlube LS |
| Check engine oil level |
Every 10 hours |
| Check the hydraulic/transmission fluid level |
Every 10 hours |
| Check engine air filter |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check front axle oil |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 50 hours |
| Lubricate axle hub bearings |
Every 50 hours |
| Change engine oil |
Every 100 hours |
| Clean engine air filter |
Every 100 hours |
| Clean engine fuel filter |
Every 100 hours |
| Replace engine oil filter |
Every 200 hours |
| Replace engine fuel filter |
Every 200 hours |
| Adjust parking and service brakes |
Every 200 hours |
| Change hydraulic/transmission fluid |
Every 300 hours |
| Change front axle lubricant |
Every 300 hours |
| Replace hydraulic oil filter |
Every 300 hours |
| Change steering oil |
Every 300 hours |
| Replace engine air filter |
Every 500 hours |
| Check and adjust engine idling |
Every 500 hours |
| Check and adjust valve clearance |
Every 500 hours |
| Flush cooling system and add new coolant |
Every 1000 hours |
| Engine oil filter part number |
SBA140516230, 84475542 |
| Engine fuel filter part number |
87300041 |
| Engine air filter part number |
86512889 |
| Hydraulic oil filter part number |
4245130, SBA340500730 |
