Ford 2610 Tractor Maintenance
The

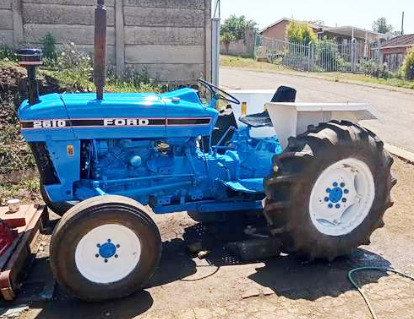

Ford 2610 is a 2WD utility tractor from 10 Utility series. This model was
manufactured between 1982 and 1983. The Ford 2610 tractor is powered by Ford
vertical 3-cylinder water cooled naturally aspirated diesel engine.
A 175 cubic inches (2.9 L) engine has a cylinder bore of 4.2" (107 mm),
piston stroke of 4.2" (107 mm), and maximum power of 42.5 hp (31.7 kW).
The Ford 2610 was fitted with two transmission options: 8x2 Dual-Range
transmission or synchromesh transmission with 8 forward and 4 reverse
gears. The maximum travel speed (forward/reverse): 19.1 mph (30.7 kph)
and 8.8 mph (14.2 kph).
The open center hydraulic system used a gear pump with rated fluid flow
of 8.5 gal/min (32.1 l/min). The hydraulic pressure is 2500 psi (173
bar). The Ford 2610 is equipped with a power assist steering, mechanical
drum brakes, 5.50x16 or 6.50x16 front tires, and 11.4x28 or 16.9x24 rear
tires. The wheel base is 75.8" (1920 mm).
Compatible attachments for the tractor: Ford 730 loader with lift
capacity to max height of 2040 lbs (925 kg), Ford 776A loader with lift
capacity to max height of 2500 lbs (1134 kg), and
Ford 776B loader with
breakout force of 3750 lbs (1701 kg).
| Engine oil capacity, qts (L) |
7.0 (6.6) |
| Engine coolant capacity, qts (L) |
11.0 (10.4) |
| Transmission system capacity (Dual Range), gal (L) |
3.1 (11.7) |
| Transmission system capacity (Synchromesh), gal (L) |
2.5 (9.5) |
| Hydraulic system capacity, gal (L) |
6.2 (23.3) |
| Steering system capacity, qts (L) |
1.9 (1.8) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 15W-40, 10W-30, 15W-30, SAE 10W |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission fluid type |
134D, SAE 10W-30 |
| Hydraulic fluid type |
134D, SAE 10W-30 |
| Steering oil type |
134D, SAE 10W-30 |
| Check engine oil level |
Every 10 hours |
| Check transmission fluid level |
Every 10 hours |
| Check engine air filter |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check hydraulic fluid level |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 100 hours |
| Lubricate axle hub bearings |
Every 100 hours |
| Change engine oil |
Every 300 hours |
| Replace engine oil filter |
Every 300 hours |
| Clean engine air filters |
Every 300 hours |
| Clean engine fuel filter |
Every 300 hours |
| Adjust parking and service brakes |
Every 300 hours |
| Replace engine air filters |
Every 600 hours |
| Replace power steering filter |
Every 600 hours |
| Change steering oil |
Every 600 hours |
| Check and adjust engine idling |
Every 600 hours |
| Check and adjust valve clearance |
Every 600 hours |
| Replace engine fuel filter |
Every 1200 hours |
| Change hydraulic fluid |
Every 1200 hours |
| Change transmission fluid |
Every 1200 hours |
| Replace hydraulic oil filter |
Every 1200 hours |
| Flush cooling system and add new coolant |
Every 1200 hours |
| Engine oil filter part number |
86546614, E8NN6714AA |
| Engine fuel filter part number |
84535312, EDPN9N074AA |
| Engine air filter part number (Primary) |
84493216, 86525008 |
| Engine air filter part number (Secondary) |
E9NN9B618AA, D6NN9601B |
| Hydraulic oil filter part number |
84518613, D6NNB486A |
| Steering oil filter part number |
EDPN3K758A |
