Ford 4600 Tractor Maintenance
The

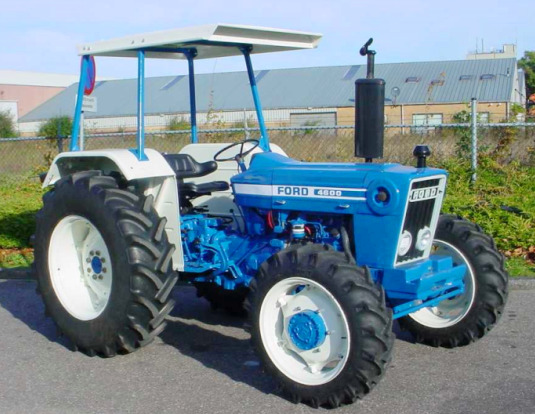

Ford 4600 is a 2WD (4x2) utility tractor. This model was manufactured from 1975
to 1984. The Ford 4600 powertrain system components: Ford vertical three-cylinder
water cooled diesel engine, and 8-speed Dual Range transmission. A 201 cubic inches
engine power is 59.5 Hp (44.5 kW), and max. torque is 213 Nm (157 lb-ft) at 1200
rpm.
Max. travel speed (forward/reverse): 15.0 mph (24.1 km/h) and 7.2 mph
(11.6 km/h). The open center hydraulic system used a gear pump with
fluid flow rate of 8.5 gpm (32.2 liters per minute). The hydraulic pressure
is 2500 psi (173 bar).
The tractor is fitted with 7.5x16 front tires and 16.9x30 rear tires. The
wheelbase is 84.5 inches (2140 mm), and operating weight is 5880 lbs
(2670 kg).
| Engine oil capacity, qts (L) |
7.0 (6.6) |
| Engine coolant capacity, qts (L) |
12.0 (11.3) |
| Transmission system capacity, gal (L) |
3.5 (13.2) |
| Hydraulic system capacity, gal (L) |
8.5 (32.2) |
| Steering system capacity, qts (L) |
2.0 (1.9) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 15W-40, 10W-30, SAE 10W |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission fluid type |
134D, SAE 10W-30 |
| Hydraulic fluid type |
134D, SAE 10W-30 |
| Steering oil type |
134D, Gearlube LS 80W-90 |
| Check engine oil level |
Every 10 hours |
| Check transmission fluid level |
Every 10 hours |
| Check engine air filters |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check hydraulic fluid level |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 100 hours |
| Lubricate axle hub bearings |
Every 100 hours |
| Change engine oil |
Every 300 hours |
| Replace engine oil filter |
Every 300 hours |
| Clean engine air filters |
Every 300 hours |
| Clean engine fuel filter |
Every 300 hours |
| Adjust parking and service brakes |
Every 300 hours |
| Replace engine air filters |
Every 600 hours |
| Replace power steering filter |
Every 600 hours |
| Change steering oil |
Every 600 hours |
| Check and adjust engine idling |
Every 600 hours |
| Check and adjust valve clearance |
Every 600 hours |
| Replace engine fuel filter |
Every 1200 hours |
| Replace cab air filter |
Every 1200 hours |
| Change hydraulic fluid |
Every 1200 hours |
| Change transmission fluid |
Every 1200 hours |
| Replace hydraulic oil filter |
Every 1200 hours |
| Flush cooling system and add new coolant |
Every 1200 hours |
| Engine oil filter part number |
86546614, E8NN6714AA |
| Engine fuel filter part number |
84535312, EDPN9N074AA |
| Engine air filter part number (Primary) |
84493216, 86525008 |
| Engine air filter part number (Secondary) |
E9NN9B618AA, D6NN9601B |
| Hydraulic oil filter part number |
84518613, D6NNB486A |
| Steering oil filter part number |
EDPN3K758A |
| Cab air filter part number |
D8NN94000N20CA |
