Ford 4610 Tractor Maintenance
The

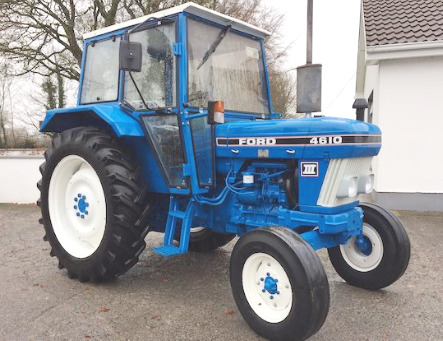

Ford 4610 utility tractor was manufactured from 1981 to 1989. The Ford 4610 is
powered by Ford vertical 3-cylinder water cooled diesel engine with a maximum
output power of 63 hp (47 kW) and 229 Nm (169 lb-ft) of peak torque at 1400 rpm.
A 201 cubic inches (3.3L) engine has a cylinder bore of 4.4" (112 mm),
piston stroke of 4.4" (112 mm), and 15.3:1 compression ratio. The Ford
4610 is fitted with 2 transmission options: 8x2 Dual range gear
transmission, or synchromesh transmission with 8 forward and 4 reverse
gears. The maximum forward speed - 18.8 mph (30.2 kph), maximum reverse
speed - 8.1 (13 kph).
The open center hydraulic system includes a gear pump with a flow rate
of 8.5 gpm (32.2 lpm). The main relief pressure is 185 bar (2600 psi).
The 4-wheel drive models are equipped with 8.30x24 or 9.50x24 front
tyres and 14.9x28 rear tyres. The 7.50x16 or 7.50x18 front tyres and
11.2x24 rear tyres fit 4-wheel drive tractors.
The wheelbase is 84.5" (2140 mm) for models with 2WD (4x2) and 84.1"
(2130 mm) for models with 4WD (4x4). The Ford 4610 tractor is compatible
with a Ford 776B Loader with a maximum lift height of 124 in (3140 mm),
and Ford 7209 loader with a maximum lift height of 110 in (2790 mm).
| Engine oil capacity, qts (L) |
7.0 (6.6) |
| Engine coolant capacity, qts (L) |
11.0 (10.4) |
| Transmission system capacity (8F/2R), gal (L) |
3.2 (11.9) |
| Transmission system capacity (8F/4R), gal (L) |
2.5 (9.5) |
| Hydraulic system capacity, gal (L) |
6.2 (23.3) |
| Front axle oil capacity, qts (L) |
5.8 (5.5) |
| Steering system capacity, qts (L) |
2.3 (2.2) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 15W-40, 10W-30, 15W-30, SAE 10W, 20W-20 |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission fluid type |
134D, SAE 10W-30 |
| Hydraulic fluid type |
134D, SAE 10W-30 |
| Front axle oil type |
134D, Gearlube 80W-90 |
| Steering oil type |
134D, SAE 10W-30 |
| Check engine oil level |
Every 10 hours |
| Check transmission fluid level |
Every 10 hours |
| Check engine air filters |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check hydraulic fluid level |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 100 hours |
| Lubricate axle hub bearings |
Every 100 hours |
| Change engine oil |
Every 300 hours |
| Replace engine oil filter |
Every 300 hours |
| Clean engine air filters |
Every 300 hours |
| Clean engine fuel filter |
Every 300 hours |
| Adjust parking and service brakes |
Every 300 hours |
| Replace engine air filters |
Every 600 hours |
| Replace power steering filter |
Every 600 hours |
| Change steering oil |
Every 600 hours |
| Check and adjust engine idling |
Every 600 hours |
| Check and adjust valve clearance |
Every 600 hours |
| Replace engine fuel filter |
Every 1200 hours |
| Change hydraulic fluid |
Every 1200 hours |
| Change transmission fluid |
Every 1200 hours |
| Change front axle oil |
Every 1200 hours |
| Replace hydraulic oil filter |
Every 1200 hours |
| Flush cooling system and add new coolant |
Every 1200 hours |
| Engine oil filter part number |
86546614, E8NN6714AA |
| Engine fuel filter part number |
84535312, EDPN9N074AA |
| Engine air filter part number (Primary) |
84493216, 86525008 |
| Engine air filter part number (Secondary) |
E9NN9B618AA, D6NN9601B |
| Hydraulic oil filter part number |
84518613, D6NNB486A |
| Steering oil filter part number |
EDPN3K758A |
