John Deere 1530 Troubleshooting
The

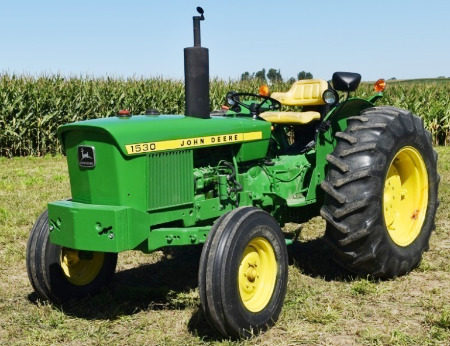

John Deere 1530 is a 2WD utility tractor from Generation 2 series. This model
was manufactured between 1973 and 1975. The John Deere 1530 tractor is powered
by 164.4 cu.in (2.7L) JD 3164D 4-stroke 3-cylinder diesel engine. The engine has
a cylinder bore of 4.02" (102 mm), piston stroke of 4.33" (110 mm), and rated
power of 50 hp (37.1 kW).
The John Deere 1530 is fitted with 2 types of transmission. 1st type:
8x4 Collar Shift unsynchronized transmission. 2nd type: Partial power
shift transmission with 16 forward and 8 reverse gears.
The maximum travel speed (forward/reverse): 17.1 mph (27.4 km/h) and 5
mph (8.1 km/h). The closed center hydraulic system used a pump with a
rated capacity of 11 gal/min (41.6 l/min). The hydraulic pressure is 155
bar (2250 psi). The John Deere 1530 tractor was equipped with 6.00x16
front tires and 13.6x28 rear tires. The wheelbase is 74.1 in (1870 mm).
| Engine Troubleshooting |
| Engine won't start or starts hard |
| Dirty fuel filter element - Change filter element |
| Closed fuel supply valve - Open supply valve to inject fuel |
| There is air in the fuel system - Bleed the system |
| Dirty or faulty injectors - Test fuel injectors and change if necessary |
| Fuel injection pump is not operating properly - Rebuild or change fuel pump |
| Bad compression - Inspect cylinder block and change damaged parts |
| Engine stops unexpectedly while running |
| Engine is not warmed up to the required temperature - Engine is not warmed up to the required temperature |
| Air in fuel lines - Bleed fuel lines |
| Irregular fuel injection - Adjust fuel injection timing |
| Dirty fuel filter element - Filter maintenance required |
| Fuel injectors are defective or dirty - Inspect fuel injectors and replace if necessary |
| Engine starts but immediately shuts off |
| Timing of fuel injection pump is not adjusted - Fuel pump timing settings need to be corrected |
| Fuel filter is dirty - Filter maintenance required |
| Fuel injector nozzles are damaged - Install a new set of well-balanced nozzles |
| Fuel injection pump malfunctioning - Rebuild or install a new injection pump |
| Air cleaner is dirty - Air cleaner maintenance required |
| Too low idle RPM - Need to adjust idle speed |
| Fuel injection pump failure - Repair or install new pump |
| Fuel injector nozzles fault - Service or replace nozzles if required |
| Valve clearance is not correct - Check and adjust |
| Coolant level is low - Fill radiator to proper level. Check and repair damage to the cooling system if required |
| Cooling system parts are defective or system is dirty - Flush cooling system or change faulty components |
| Low engine oil level - Fill up the engine oil |
| Fan belt is defective or belt tension is not adjusted - Replace or adjust belt tension properly |
| Thermostat fault - Thermostat needs to be replaced |
| Dirty or faulty injectors - Test fuel injectors and change if necessary |
| Improper fuel injection pressure - Adjust to correct pressure |
| Clogged air filter element - Service or change air filter |
| Engine oil filter is plugged - Clean or change engine oil filter |
| Diesel engine overloaded - Reduce the load or operate the tractor in lower gears |
| Valve clearance is wrong - Check and adjust as required |
| Incorrectly set low idle speed - Adjust as required |
| Dirty fuel hoses or pipes - Clean fuel system pipes and hoses |
| Engine compression is low: Inlet or outlet valves are defective - Install new valves |
| Abnormal engine noise or knocking |
| Incorrect setting of fuel injection pump timing - Adjust the fuel injection pump timing correctly |
| Fuel injector nozzles are damaged - Change injector nozzles |
| Low engine oil level - Fill up the engine oil |
| Low coolant temperature - Warm up engine as required |
| Crankshaft or main bearings wear - Need to install new components |
| Stuck or worn piston rings - Replace piston rings |
| The flywheel to crankshaft bolts are loose - Tighten bolts as required |
| Engine oil consumption is too high |
| External oil leaks: Seals or gaskets are defective - Replace worn parts to avoid leaks |
| Oil viscosity is wrong - Fill up with the proper oil viscosity |
| Piston rings are stuck or worn - Piston rings need to be replaced |
| Valve guides or stems are damaged - Valves must be replaced |
| Pistons or cylinder liners are damaged - Inspect pistons and liners, change as required |
| Electrical System Troubleshooting |
| Battery will not charge |
| Battery failing - Battery replacement required |
| Bad battery wiring harness - Inspect wiring for malfunctions, replace or repair |
| Loose or corroded battery cables and terminals - Tighten or service terminals and cables |
| Defective belt or improperly adjusted belt tension - Install new belt or adjust belt tension as required |
| Battery capacity is low - Battery is drained, charge it |
| Battery drains quickly - Service battery or change it |
| Battery wiring harness damage - Inspect battery wiring for damage, replace or repair |
| Corroded or loose cables and terminals - Clean or tighten cables and terminals |
| Starter motor is not working |
| Low battery power - Battery needs to be recharged |
| Discharged or defective battery - Need to charge or replace the battery |
| Starter motor failure - Change or repair starter |
| Battery cables are disconnected or incorrectly connected - Check cables and reconnect it correctly |
| Transmission Troubleshooting |
| Difficulty shifting gears |
| Clutch is not adjusted or faulty - Adjust clutch or change if necessary |
| Gear shift linkage is stuck or damaged - Change or repair shift linkage |
| Shift forks are worn or damaged - Replace defective shift forks |
| Faulty parts in the gear shifting mechanism - Change faulty parts |
| Transmission fluid pressure is insufficient |
| Lack of transmission fluid supply - Add transmission fluid as required |
| Plugged transmission fluid filter (if equipped) - Clean or replace the transmission fluid filter |
| Relief valve is faulty - Replace the valve |
| Cracked or worn bearings - Faulty bearings should be replaced |
| Insufficient fluid supply - Fill the transmission housing with fluid |
| Contaminated transmission oil - Change transmission oil |
| Improper backlash or damaged gears - Replace gears or adjust backlash properly |
| Damaged or worn shift forks - Install new shift forks |
| Gaskets or seals are defective Install new components |
| Transmission housing is cracked - Replace housing or transmission assembly |
| Hydraulics Troubleshooting |
| Hydraulic system overheats |
| Incorrect pressure in hydraulic system - Changing the system pressure |
| Faulty or incorrectly adjusted main relief valve - Replace or set up the relief valve |
| Contaminated hydraulic oil - Change hydraulic oil |
| Aeration in hydraulic system - Check the pump seals, suction line, and fittings |
| Hydraulic fluid pressure is low |
| Lack of hydraulic oil - Fill up the hydraulic oil |
| Hydraulic fluid filter is clogged - Clean or change hydraulic filter |
| Hydraulic pump failure - Test the pump performance and change pump if required |
| Defective or not adjusted hydraulic control valve - Set properly or replace |
| Faulty hydraulic cylinder - Inspect cylinder components for wear or damage and change if required |
| Hydraulic piping leaks - Find leaks in the system and fix it |
| 3-point hitch does not raise or raises very slowly |
| Lack of hydraulic fluid - Add fluid to the hydraulic system |
| Hydraulic fluid is too cold - Allow fluid to warm |
| Hydraulic oil filter element is dirty - Clean or replace the hydraulic filter |
| Damaged hydraulic oil pump - Check pump performance and change it if necessary |
| Misadjusted or defective main relief valve - Adjust or replace the relief valve |
| Hydraulic control valve block is defective or set improper - Replace or set properly |
| Faulty hydraulic cylinder - Inspect cylinder components for wear or damage and change if required |
| Loose or damaged suction line - Tighten or replace |
| 3-point hitch fails to drop or drops slowly |
| Hydraulic spool valve is not set properly or defective - Change or adjust properly |
| Faulty hydraulic cylinder - Inspect cylinder parts for wear or damage and replace if required |
| Damaged lift arm shaft - Install a new shaft |
| Mechanical parts of the hitch are damaged - Replace worn or damaged hitch parts |
| 3-point hitch lift or lower is jerky |
| Air trapped in the hydraulic system - Check the pump seals, suction line, and fittings |
| Contaminated hydraulic fluid - Change hydraulic fluid |
| Hydraulic pump is defective - Check the pump capacity and replace pump if required |
| Damaged or incorrect adjusted hydraulic control valve - Change or set correctly |
| Defective hydraulic cylinder - Inspect the cylinder components for damage or wear and change if required |
| Steering System Troubleshooting |
| Difficult steering |
| Steering column is worn or incorrectly mounted - Change the steering column or mount it correctly |
| Air leaks in steering system - Bleed the steering system |
| Improper toe-in - Adjust toe-in wheels properly |
| Tires are not properly inflated - Inflate tires as required |
| Steering pump failure - Repair or replace steering pump |
| Power steering control valve is worn or defective - Check and replace as required |
| Damaged steering box parts - Change defective steering box parts |
| Steering oil level is low - Fill up steering oil to required level |
| Steering system oil leakage - Tighten the steering hose and line joints |
| Excessive play in steering |
| Steering column shaft or coupling is worn out - Change defective component |
| Power steering control valve is worn or defective - Check and replace as required |
| Worn steering box parts - Replace defective components of power steering box |
| Steering pump malfunction - Install a new steering pump |
| Worn or faulty steering tie-rod ends or linkage - Replace damaged component |
| Tractor is pulling to right or left |
| Tire pressure is not correct - Check tire pressure and inflate as required |
| Not adjusted toe-in - Adjust toe-in properly |
| Worn or faulty steering tie-rod ends or linkage - Change failed component |
| Faulty steering box components - Defective parts of power steering box must be replaced |
| Power steering control valve is worn or defective - Repair or change the steering valve |
| Damaged or improperly adjusted or worn front hub bearings - Adjust correctly or replace bearings |
