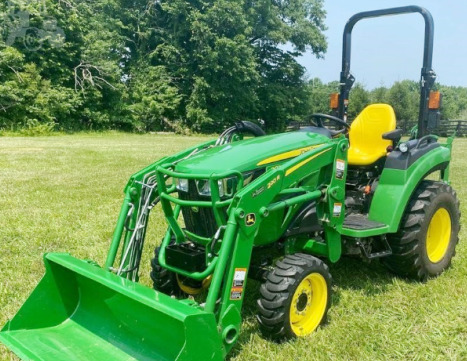

John Deere 2032R Tractor
The
John Deere 2032R compact utility tractor was manufactured from 2013 to 2021. The
John Deere 2032R driveline consists of Yanmar 3TNV88 4-cycle three-cylinder
direct injection liquid-cooled diesel engine and 2-range hydrostatic
transmission with infinite forward and reverse gears.
A 100.2 cu.in (1.65 L) engine has a cylinder bore of 3.47" (88 mm),
piston stroke of 3.54" (90 mm), and maximum power of 32 hp (23.9 kW).
The maximum forward speed - 13.7 mph (21.9 km/h), max reverse speed -
13.2 mph (21.1 km/h). The open center hydraulic system used a gear pump
with a flow rate of 5 gpm (19 lpm). The hydraulic pressure is 172 bar
(2500 psi). The tractor is equipped with a hydrostatic power steering,
wet disc brakes, 7.00x12 (AG) or 24x8.50-14 (Turf) front tires, and
12.4x16 (AG) or 36x14.00-15 (Turf) rear tires. The wheel base is 65.2"
(1655 mm).
The JD 2032R is compatible with the following attachments: 60", 62", 72"
mid-mount 3-blade mower decks with hydraulic lift system, 54"
front-mount two-stage snow blower, 54" front-mount blade, John Deere
H130 front-end loader with lift capacity to full height of 1027 lbs (465
kg), John Deere 220R front-end loader with lift capacity to full height
of 1120 lbs (508 kg), John Deere 46 backhoe with 2-ft flat digging depth
of 78" (1980 mm), and John Deere 270B backhoe with maximum digging depth
of 84" (2130 mm).
| Engine Model |
Yanmar 3TNV88 |
| Engine Type |
4-cycle three-cylinder direct injection liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
100.2 (1.642) |
| Engine Bore, in (mm) |
3.47 (88.0) |
| Engine Stroke, in (mm) |
3.54 (90.0) |
| Aspiration |
Naturally aspirated |
| Maximum Engine Power, hp (kW) |
32.0 (23.9) |
| Rated Engine Speed, rpm |
2500 |
| Low Idle Speed, rpm |
1000 |
| High Idle Speed, rpm |
2650 |
| Maximum Torque, Nm (lb-ft) |
110.5 (81.8) |
| Torque Speed, rpm |
1600 |
| Compression Ratio |
19.1:1 |
| Firing Order |
1-3-2 |
| Fuel System |
Direct injection |
| Lubrication System |
Forced lubrication with trochoid pump |
| Oil Filter Type |
Single element |
| Air Cleaner |
Dual dry element |
| Emission Level |
Tier 4 |
| Fuel Tank Capacity, gal (L) |
7.1 (27.0) |
| Oil Capacity, qts (L) |
3.6 (3.4) |
| Coolant Capacity, qts (L) |
4.2 (4.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
40 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
23.5 (17.5) |
| PTO Clutch |
Wet disc |
| Rear PTO Speed, rpm |
540 |
| Mid PTO Speed, rpm |
2000 |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Cruise Control |
Standard |
| Oil Capacity, qts (L) |
18.6 (17.5) |
| Maximum Forward Speed (Low Range), mph (kph) |
4.7 (7.6) |
| Maximum Forward Speed (High Range), mph (kph) |
13.7 (21.9) |
| Maximum Reverse Speed (Low Range), mph (kph) |
4.7 (7.6) |
| Maximum Reverse Speed (High Range), mph (kph) |
13.2 (21.1) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Power Steering |
| Brakes Type |
Wet disc |
| Front Tire Size (AG) |
7.00x12 |
| Rear Tire Size (AG) |
12.4x16 |
| Front Tire Size (Turf) |
24x8.5-14 |
| Rear Tire Size (Turf) |
36x14.00-15 |
| Front Tire Size (Industrial) |
23x8.50-14 |
| Rear Tire Size (Industrial) |
14-17.5 |
| Front Tread, in (mm) |
32.7 (830) |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
5.0 (19.0) |
| Steering Pump Flow, gpm (Lpm) |
4.0 (15.0) |
| Hydraulic Pressure, Bar (psi) |
172 (2500) |
| Hydraulic Fluid Capacity, gal (L) |
3.9 (14.8) |
| Number of Standard Remote Valves |
0/3 |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position control |
| Standard Lift Capacity at 24" (610mm) behind pin, lb (kg) |
1250 (567) |
| Standard Lift Capacity at pin, lb (kg) |
1435 (650) |
| Wheelbase, in (mm) |
65.2 (1655) |
| Overall Length, in (mm) |
108.9 (2766) |
| Height (Hood), in (mm) |
53.3 (1350) |
| Height (ROPS), in (mm) |
89.7 (2279) |
| Overall Width, in (mm) |
55.6 (1412) |
| Ground Clearance, in (mm) |
13 (330) |
| Weight (ROPS), lb (kg) |
1973 (895) |
| Loader Model |
John Deere H130 |
| Maximum Lift Height at Pin, in (mm) |
78.5 (1990) |
| Reach at Maximum Height, in (mm) |
25.8 (655) |
| Maximum Dump Angle, deg |
38 |
| Maximum Rollback Angle, deg |
25 |
| Lift Capacity to Max Height at Pin, lbs (kg) |
1027 (465) |
| Lift Capacity to Max Height at 19.7" (0.5m) Ahead of Pin, lbs (kg) |
717 (327) |
| Breakout Force at Pivot Pin, lbs (kg) |
2363 (1070) |
| Breakout Force at 19.7" (0.5m) Ahead of Pin, lbs (kg) |
1604 (729) |
| Bucket Widths, in (mm) |
49 (1240) or 53 (1340) |
| Mower Deck Model |
John Deere 72D AutoConnect |
| Mower Deck Type |
Mid-mount |
| Cutting Width, in (mm) |
72 (1820) |
| Weight, lbs (kg) |
448 (203) |
