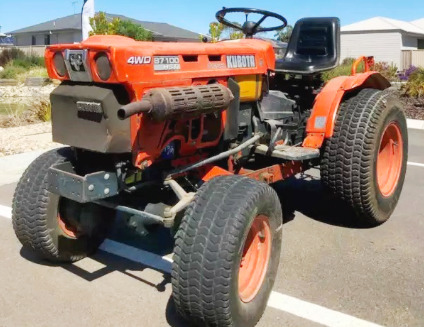

Kubota B7100HST Tractor
The
Kubota B7100HST is a 2WD or 4WD compact utility tractor. This model was
manufactured between 1977 and 1997. The tractor was designed in 2 versions:
B7100HST-E (2WD) and B7100HST-D (4WD).
The Kubota B7100HST powertrain system components: a 46.5 cu.in (0.8L)
Kubota D750 4-cycle vertical 3-cylinder indirect injection naturally
aspirated water-cooled diesel engine with a maximum power of 16 hp (11.9
kW), and two-range hydrostatic transmission with infinite forward and
reverse gears.
Max forward speed: 3.5 mph (5.7 km/h) using low range or 9.1 mph (14.5
km/h) using high range, and max reverse speed: 2.4 mph (3.9 km/h) using
low range or 6.2 mph (10.1 km/h) using high range. The open center
hydraulic system used a gear pump with fluid flow rate of 3 gal/min
(11.4 l/min). The hydraulic pressure is 117 bar (1700 psi).
The two-wheel drive models are equipped with 4.00x9 front tires and
7.00x16 rear tires. The 6.00x12 (AG) or 20.5x8.00-10 (Turf) front tires
and 8.00x16 (AG) or 29x12.00-15 (Turf) rear tires are used for tractors
with four-wheel drive. The wheelbase is 54.6" (1390 mm) for 2WD models
and 55.1" (1400 mm) for 4WD models. The Kubota B7100HST is compatible
with a Kubota B1630C front-end loader with lift capacity to full height
of 510 lbs (230 kg) and breakout force of 780 lbs (353 kg).
| Engine Model |
Kubota D750 |
| Engine Type |
4-cycle vertical 3-cylinder water-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu.in (L) |
46.5 (0.8) |
| Engine Bore, in (mm) |
2.68 (68.0) |
| Engine Stroke, in (mm) |
2.76 (70.0) |
| Aspiration |
Naturally aspirated |
| Maximum Engine Power, hp (kW) |
16.0 (11.9) |
| Rated Engine Power, hp (kW) |
13.0 (9.7) |
| Rated Engine Speed, rpm |
2800 |
| Maximum Torque, Nm (lb-ft) |
50.1 (37.2) |
| Torque Speed, rpm |
1800 |
| Compression Ratio |
22:1 |
| Firing Order |
1-2-3 |
| Fuel System |
Indirect injection |
| Lubricating System |
Forced Lubrication by Trochoid Pump |
| Cooling System |
Pressurized Radiator, Forced Circulation with Water Pump |
| Starting System |
Electric Starting |
| Fuel Tank Capacity, gal (L) |
3.5 (13.0) |
| Oil Capacity, qts (L) |
4.1 (3.9) |
| Coolant Capacity, qts (L) |
5.0 (4.7) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Transmission |
| PTO Horsepower, hp (kW) |
13.5 (9.7) |
| Rear PTO Speed, rpm |
540/850 |
| Rear PTO / Engine Speed, rpm |
540/3000 |
| Rear PTO / Engine Speed, rpm |
850/3000 |
| Front PTO Speed, rpm |
540 |
| Front PTO / Engine Speed, rpm |
540/2800 |
| Transmission Type |
Hydrostatic (high, low gear shift) |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Pump Type |
Variable displacement piston pump |
| Motor Type |
Fixed displacement piston motor |
| Charge pump type |
Trochoid pump |
| Oil Cooler |
Corrugated fin type radiator |
| Oil Capacity, qts (L) |
14.2 (13.4) |
| Maximum Forward Speed (Low), mph (kph) |
3.5 (5.7) |
| Maximum Forward Speed (High), mph (kph) |
9.1 (14.5) |
| Maximum Reverse Speed (Low), mph (kph) |
2.4 (3.9) |
| Maximum Reverse Speed (High), mph (kph) |
6.2 (10.1) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Manual, ball screw type |
| Brakes Type |
Right and left independent with dry drum |
| Front Tires (2WD) |
4.00x9 |
| Rear Tires (2WD) |
7.00x16 |
| Front Tires (4WD, AG) |
6.00x12 |
| Rear Tires (4WD, AG) |
8.00x16 |
| Front Tires (4WD, Turf) |
20.5x8.00-10 |
| Rear Tires (4WD, Turf) |
29x12.00-15 |
| Front Tread (2WD), in (mm) |
26.9-30.3 (685-770) |
| Rear Tread (2WD), in (mm) |
25.9-34.3 (660-870) |
| Front Tread (4WD), in (mm) |
33.8-35.5 (845-895) |
| Rear Tread (4WD), in (mm) |
25.9-34.3 (660-870) |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
3.0 (11.4) |
| Hydraulic Pressure, Bar (psi) |
117 (1700) |
| Hydraulic Fluid Capacity, gal (L) |
3.6 (13.6) |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity at pin, lb (kg) |
880 (400) |
| Wheelbase (2WD), in (mm) |
54.6 (1390) |
| Wheelbase (4WD), in (mm) |
55.1 (1400) |
| Length, in (mm) |
84.1 (2135) |
| Height, in (mm) |
47.1 (1195) |
| Overall Width, in (mm) |
40 (1015) |
| Ground Clearance (2WD), in (mm) |
9.8 (250) |
| Ground Clearance (4WD), in (mm) |
8.8 (225) |
| Weight (2WD), lb (kg) |
1120 (510) |
| Weight (4WD), lb (kg) |
1260 (570) |
| Loader Model |
Kubota B1630C |
| Maximum Lift Height at Pin, in (mm) |
67.7 (1710) |
| Clearance with Bucket Dumped, in (mm) |
51.5 (1300) |
| Reach at Full Height, in (mm) |
20.3 (510) |
| Dump Angle at Full Height, deg |
46 |
| Reach with Bucket on Ground, in (mm) |
48.3 (1220) |
| Maximum Rollback Angle, deg |
28 |
| Bucket Breakout Force, lb (kg) |
780 (353) |
| Lift Capacity to Full Height at Pin, lb (kg) |
510 (231) |
