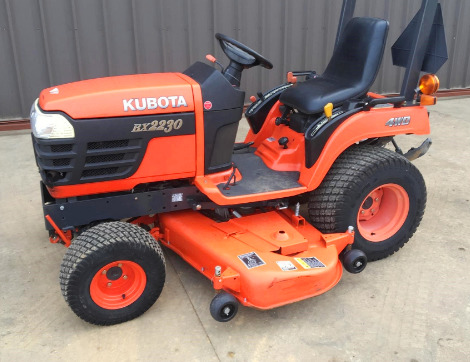

Kubota BX2230 Tractor
The
Kubota BX2230 is a 4WD sub-compact utility tractor from BX30 series. This model
was manufactured between 2004 and 2006. The Kubota BX2230 powerline components:
a 54.8 (0.9L) Kubota D902-E3B 4-cycle 3-cylinder indirect injection water-cooled
diesel engine with a max power of 22 hp (16.4 kW), and two-range hydrostatic
transmission with infinite forward and reverse gears.
The maximum forward speed - 8.5 mph (13.7 km/h), max reverse speed - 6.2
mph (10 km/h). The open center hydraulic system includes a gear pump
with a flow of 5.5 gpm (20.8 lpm). The main relief pressure is 127 bar
(1850 psi). The tractor is equipped with a hydrostatic power steering,
wet disc brakes, 18x8.50-8 front tires, and 26x12.00-12 rear tires. The
wheel base is 55.1" (1390 mm).
The Kubota BX2230 is compatible with the following attachments: 54" or
60" mid-mount 3-blade mower decks with cutting height of 1.0-4.0"
(25-102 mm), 49" front-mount snowblower with clearing height of 10.5"
(260 mm), 54" front-mount blade with lift height of 7.5" (190 mm), and
Kubota LA211 front-end loader with lift capacity to full height of 460
lbs (208 kg).
| Engine Model |
Kubota D902-E3B |
| Engine Type |
4-cycle indirect injection water-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
54.8 (0.898) |
| Engine Bore, in (mm) |
2.83 (72.0) |
| Engine Stroke, in (mm) |
2.90 (73.6) |
| Maximum Engine Power, hp (kW) |
22.0 (16.4) |
| Rated Engine Power, hp (kW) |
20.4 (15.2) |
| Rated Engine Speed, rpm |
3200 |
| Idle Speed, rpm |
900-1000 |
| Compression Ratio |
24:1 |
| Firing Order |
1-2-3 |
| Combustion Chamber |
Spherical type |
| Direction of Rotation |
Counter-clockwise |
| Fuel System |
Indirect injection |
| Governor Type |
Mechanical |
| Lubrication |
Forced lubrication by trochoidal pump |
| Cooling System |
Pressurized radiator forced circulation with water pump |
| Fuel Tank Capacity, gal (L) |
5.5 (20.8) |
| Oil Capacity, qts (L) |
2.9 (2.7) |
| Coolant Capacity, qts (L) |
3.3 (3.1) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
16.7 (12.5) |
| PTO Clutch Type |
Hydraulic |
| Rear PTO Speeds, rpm |
540 |
| Rear PTO / Engine Speeds, rpm |
540/3068 |
| Mid PTO Speeds, rpm |
2500 |
| Mid PTO / Engine Speeds, rpm |
2500/3125 |
| Transmission Type |
Hydrostatic (HST) |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Pump Type |
Variable displacement piston pump |
| Motor Type |
Fixed displacement piston motor |
| Oil Capacity, qts (L) |
10.8 (10.2) |
| Maximum Forward Speed, mph (kph) |
8.5 (13.7) |
| Maximum Reverse Speed, mph (kph) |
6.2 (10.0) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Power steering |
| Brake Type |
Wet disc |
| Front Tire Size |
18x8.50-8 |
| Rear Tire Size |
26x12.00-12 |
| Front Tread, in (mm) |
35.8 (900) |
| Rear Tread, in (mm) |
32.2 (810) |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
5.5 (20.8) |
| Hydraulic Pressure, bar (psi) |
127 (1850) |
| 3-Point Hitch Category |
1 |
| Lift Control Type |
Directional control, auto-return lever system |
| Standard Lift Capacity at pin, lbs (kg) |
680 (310) |
| Wheelbase, in (mm) |
55.1 (1390) |
| Length, in (mm) |
77.8 (1970) |
| Height (ROPS), in (mm) |
70.9 (1800) |
| Overall Width, in (mm) |
45.1 (1140) |
| Ground Clearance, in (mm) |
6.7 (170) |
| Weight, lbs (kg) |
1290 (585) |
| Loader Model |
Kubota LA211 |
| Maximum Lift Height at Pin, in (mm) |
70.8 (1790) |
| Clearance with Bucket Dumped, in (mm) |
51.2 (1300) |
| Reach at Full Height, in (mm) |
29.9 (750) |
| Dump Angle at Full Height, deg |
45 |
| Maximum Rollback Angle, deg |
25 |
| Bucket Breakout Force, lb (kg) |
950 (430) |
| Lift Capacity to Full Height at Pin, lb (kg) |
460 (208) |
| Bucket Width, in (mm) |
48 (1210) |
| Mower Deck Model |
Kubota RCK60B-22BX |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
60 (1520) |
| Overall Width, in (mm) |
72.6 (1840) |
| Cutting Height, in (mm) |
1.0-4.0 (25-102) |
| Weight, lbs (kg) |
265 (120) |
| Blade Model |
Kubota BX2763A |
| Blade Type |
Front-mount |
| Width, in (mm) |
60 (1520) |
| Height, in (mm) |
19.5 (490) |
| Lift Height, in (mm) |
8 (200) |
| Weight, lbs (kg) |
215 (97) |
| Snowblower Model |
Kubota BX2750B |
| Snowblower Type |
Front-mount |
| Clearing Width, in (mm) |
48.75 (1230) |
| Clearing Height, in (mm) |
10.5 (260) |
| Weight, lbs (kg) |
210 (95) |
