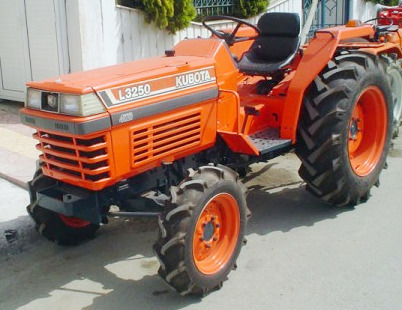

Kubota L3250 Tractor
The
Kubota L3250 is a two-wheel drive or two-wheel drive compact utility tractor.
This model was manufactured from 1989 to 1990. The tractor was designed in 2
versions: L3250F (2WD) and L3250DT (4WD).
The Kubota L3250 is equipped with a 113.6 cubic inches (1.9L) Kubota
V1902-DI 4-cycle vertical 4-cylinder direct injection naturally
aspirated water-cooled diesel engine with a rated power of 40 hp (29.8
kW). The transmission includes a dry clutch and mechanical shuttle
gearbox with 8 forward and 7 reverse gears.
The maximum travel speed (forward and reverse): 13.5 mph (21.7 km/h) /
13.5 mph (21.7 km/h). The open center hydraulic system includes a gear
pump with a flow of 7.8 gal/min (29.5 l/min). The hydraulic pressure is
172 bar (2500 psi). The Kubota L3250 is equipped with a power assist
steering system, mechanical wet disc brakes, 6.00x16 (AG) or 29x12.50-15
(Turf) front tires, and 13.6x26 (AG) or 21.5x16.1 (Turf) rear tires. The
wheelbase is 68.3" (1730 mm). The tractor is compatible with a
Kubota
BF550 front-end loader with lift capacity to full height of 1213 lbs
(550 kg) and breakout force of 2094 lbs (950 kg).
| Engine Model |
Kubota V1902-DI |
| Engine Type |
Vertical, 4-cycle, four-cylinder direct injection diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
113.6 (1.90) |
| Engine Bore, in (mm) |
3.31 (85.0) |
| Engine Stroke, in (mm) |
3.23 (82.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
40.0 (29.8) |
| Rated Engine Speed, rpm |
2600 |
| Compression Ratio |
21.0:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Direct injection |
| Air cleaner |
Dry element |
| Cylinder Compression (Std), bar (psi) |
31 (450) |
| Valve Clearance (Cold), in (mm) |
0.008 (0.20) |
| Piston Ring End Gap, in (mm) |
0.024 (0.61) |
| Crankshaft End Play, in (mm) |
0.012 (0.30) |
| Fuel Tank Capacity, gal (L) |
15.3 (57.9) |
| Oil Capacity, qts (L) |
7.9 (7.5) |
| Coolant Capacity, qts (L) |
7.4 (7.0) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
32.0 (23.9) |
| PTO Clutch |
Dry disc |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/2245 |
| Transmission Type |
Mechanical shuttle |
| Gearbox Type |
8F/7R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
7 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
13.5 (21.7) |
| Maximum Reverse Speed, mph (kph) |
8.2 (13.2) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Power assist |
| Brakes Type |
Mechanical wet disc |
| Front Tire Size (AG) |
6.00x16 |
| Rear Tire Size (AG) |
13.6x26 |
| Front Tire Size (Turf) |
29x12.50-15 |
| Rear Tire Size (Turf) |
21.5x16.1 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
7.8 (29.5) |
| Hydraulic Pressure, Bar (psi) |
172.5 (2500) |
| Number of Standard Remote Valves |
0/2 |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity at lift pin, lb (kg) |
1875 (850) |
| Wheelbase, in (mm) |
68.3 (1730) |
| Length, in (mm) |
114.2 (2900) |
| Height, in (mm) |
80.7 (2040) |
| Overall Width, in (mm) |
56.1 (1420) |
| Ground Clearance, in (mm) |
11.0 (270) |
| Weight, lb (kg) |
2750 (1245) |
