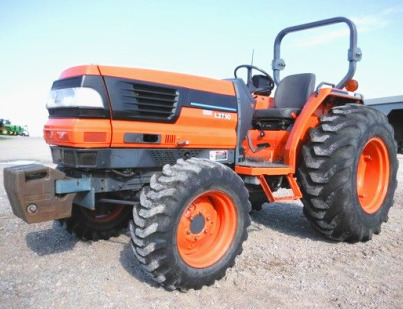

Kubota L3710 Tractor
The
Kubota L3710 is a Grand L10 series compact utility tractor. This model was
manufactured from 1998 to 2002. The Kubota L3710 is powered by Kubota V1903-A
four-cycle vertical 4-cylinder indirect injection diesel engine with a rated
power of 36.6 Hp (27.3 kW) at 2600 rpm.
The Kubota L3710 was fitted with 3 transmission options: 8x8 Sync
Shuttle fully synchronized transmission (FST), 8x8 (16x16 with creeper)
Glide Shift transmission (GST), or 3-range hydrostatic transmission
(HST). The maximum travel speed (forward/reverse): 14.4 mph (23.1 km/h)
and 13.1 mph (21.1 km/h).
The open center hydraulic system includes a gear pump with a rated
capacity of 7.8 gpm (29.5 lpm). The tractor is equipped with 8.3x16
front tyres and 13.6x24 rear tyres. The wheelbase is 71.1" (1805 mm).
Compatible attachments for the Kubota L3710 tractor: a 72" mid-mount
Kubota RC72-36A 3-blade mower deck with hydraulic lifting, 60" or 72"
front-mount blades, 62" front-mount Kubota L62HD snow blower with
hydraulic lift, Kubota LA681 front end loader with lift capacity to full
height of 1500 lbs (680 kg), and Kubota BL4690 with a digging depth of
90.2" (2290 mm).
| Engine Model |
Kubota V1903-A |
| Engine Type |
4-cycle, vertical, 4-cylinder indirect injection diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
113.3 (1.857) |
| Engine Bore, in (mm) |
3.10 (80.0) |
| Engine Stroke, in (mm) |
3.60 (92.4) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
36.6 (27.3) |
| Rated Engine Speed, rpm |
2600 |
| Compression Ratio |
23:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Indirect injection |
| Lubricating system |
Forced lubrication by trochoidal pump |
| Cooling system |
Forced circulation with water pump |
| Fuel Tank Capacity, gal (L) |
9.2 (35.0) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
7.9 (7.5) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40/55 |
| Starting System |
Electric Starter |
| Battery Rating, CCA |
447 |
| PTO Operational Type |
Independent |
| PTO Horsepower (FST/GST Transmission), hp (kW) |
31.5 (23.5) |
| PTO Horsepower (HST Transmission), hp (kW) |
30.0 (22.4) |
| Rear PTO Speed, rpm |
540 |
| Mid PTO Speed, rpm |
2000 |
| Rear PTO / Engine Speed (FST/GST Transmission), rpm |
540/2475 |
| Rear PTO/Engine Speed (HST Transmission), rpm |
540/2436 |
| Mid PTO/Engine Speed (Manual/GST Transmission), rpm |
2000/2432 |
| Mid PTO/Engine Speed (HST Transmission), rpm |
2000/2493 |
| Transmission Type |
FST Sync Shuttle |
| Gearbox Type |
8F/8R, fully synchronized |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry type single stage |
| Oil Capacity, qts (L) |
41.3 (39.0) |
| Maximum Forward Speed, mph (kph) |
14.3 (23.0) |
| Maximum Reverse Speed, mph (kph) |
13.1 (21.1) |
| Transmission Type |
GST (Glide Shift) |
| Gearbox Type |
8F/8R, with creeper 16F/16R |
| Number of Forward Gears |
8 (16) |
| Number of Reverse Gears |
8 (16) |
| Clutch Type |
Dry type single stage |
| Oil Capacity, qts (L) |
41.3 (39.0) |
| Maximum Forward Speed, mph (kph) |
14.3 (23.0) |
| Maximum Reverse Speed, mph (kph) |
13.1 (21.1) |
| Transmission Type |
Hydrostatic (HST) |
| Number of Forward Gears |
3 Range |
| Number of Reverse Gears |
3 Range |
| Oil Capacity, qts (L) |
41.3 (39.0) |
| Maximum Forward Speed, mph (kph) |
14.4 (23.1) |
| Maximum Reverse Speed, mph (kph) |
11.5 (18.5) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size |
8.3x16 |
| Rear Tire Size |
13.6x24 |
| Front Tread, in (mm) |
45.5 (1155) |
| Rear Tread, in (mm) |
46.5-60.8 (1180-1545) |
| Hydraulic System Type |
Open Center |
| Implement Pump Flow, gpm (Lpm) |
7.8 (29.5) |
| Steering Pump Flow, gpm (Lpm) |
4.0 (15.3) |
| Hydraulic Capacity, gal (L) |
10.3 (39.0) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position control |
| Standard Lift Capacity 24-in (600 mm) behind pin, lb (kg) |
2310 (1050) |
| Upper Link Pin Diameter, in (mm) |
0.75 (19.0) |
| Lower Link Pin Diameter, in (mm) |
0.88 (22.4) |
| Lower Hitch Spacing, in (mm) |
28 (718) |
| Wheelbase, in (mm) |
71.1 (1805) |
| Overall Length, in (mm) |
118.1 (3000) |
| Height (ROPS), in (mm) |
83.5 (2120) |
| Height (Steering Wheel), in (mm) |
60 (1525) |
| Overall Width, in (mm) |
62.4 (1580) |
| Ground Clearance, in (mm) |
13.2 (335) |
| Turning Radius (FST/GST), in (mm) |
99 (2500) |
| Turning Radius (HST), in (mm) |
102.8 (2600) |
| Weight (FST), lb (kg) |
2955 (1340) |
| Weight (GST), lb (kg) |
2965 (1345) |
| Weight (HST), lb (kg) |
2990 (1355) |
