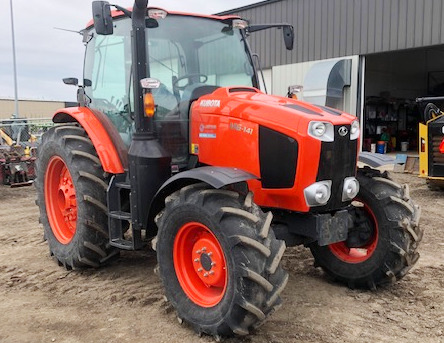

Kubota M6-141 Tractor
The
Kubota M6-141 is a 4-wheel drive utility tractor from M6 series. This model was
manufactured between 2015 and 2021. The components of Kubota M6-141 driveline
system: a 374 cubic inches (6.1 L) Kubota V6108-TI-CRS 4-stroke 4-cylinder
direct injection turbocharged intercooled diesel engine and Intelli-Shift
partial powershift transmission with 24 forward and 24 reverse gears.
The engine has a cylinder bore of 4.65" (118 mm), piston stroke of 5.51"
(140 mm), and maximum power of 133 hp (99.2 kW). Max forward speed -
22.7 mph (36.6 kph), maximum reverse speed - 22.9 mph (36.9 kph).
The closed center hydraulic system used a piston pump with a flow of
20.4 gpm (77.2 lpm). The hydraulic system pressure is 200 bar (2900
psi). The Kubota M6141 is equipped with a hydrostatic power steering,
hydraulic wet disc brakes, 14.9R24 front tires, and 18.4R38 rear tires.
The wheelbase is 105.5" (2670 mm). The tractor is compatible with a
Kubota LA2255 front-end loader with lift capacity to full height of 4877
lbs (2212 kg) and breakout force of 7639 lbs (3465 kg).
| Engine Model |
Kubota V6108-TI-CRS |
| Engine Type |
4-Stroke, 4-cylinder turbocharged intercooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
374 (6.10) |
| Engine Bore, in (mm) |
4.65 (118.0) |
| Engine Stroke, in (mm) |
5.51 (140.0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
133.0 (99.2) |
| Rated Engine Speed, rpm |
2200 |
| Firing Order |
1-3-4-2 |
| Emissions Level |
Tier 4 |
| Fuel System |
Common rail direct injection |
| Air Cleaner |
Dual dry element |
| Fuel Tank Capacity, gal (L) |
50.2 (190.0) |
| Oil Capacity, qts (L) |
15.4 (14.6) |
| Coolant Capacity, qts (L) |
15.4 (14.6) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
130 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
114.0 (85.0) |
| PTO Clutch |
Hydraulic wet disc |
| PTO Speed, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/1994 |
| PTO / Engine Speed, rpm |
1000/2050 |
| Transmission Type |
Intelli-Shift |
| Gearbox Type |
24F/24R, partial power shift |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
24 |
| Creeper Type |
Standard |
| Number of Forward Gears (with Creeper) |
32 |
| Number of Reverse Gears (with Creeper) |
32 |
| Clutch Type |
Electro-hydraulic wet disc |
| Maximum Forward Speed, mph (kph) |
22.7 (36.6) |
| Maximum Reverse Speed, mph (kph) |
22.9 (36.9) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size |
14.9R24 |
| Rear Tire Size |
18.4R38 |
| Front Tread, in (mm) |
70-73.8 (1770-1870) |
| Rear Tread, in (mm) |
62.6-82.3 (1590-2090) |
| Hydraulic System Type |
Closed center |
| Implement Pump Flow, gpm (Lpm) |
20.4 (77.2) |
| Steering Pump Flow, gpm (Lpm) |
14.5 (54.9) |
| Hydraulic Pressure, Bar (psi) |
200 (2900) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Electronic lower-link draft sensing |
| Standard Lift Capacity at lift pin, lb (kg) |
8600 (3900) |
| Standard Lift Capacity 24-in (610mm) behind pin, lb (kg) |
6835 (3100) |
| Wheelbase, in (mm) |
105.5 (2670) |
| Length, in (mm) |
171.3 (4350) |
| Height (Cab), in (mm) |
113.2 (2870) |
| Overall Width, in (mm) |
85.8 (2170) |
| Ground Clearance, in (mm) |
22.2 (560) |
| Weight, lb (kg) |
11320 (5135) |
