Kubota M7060 Troubleshooting
The

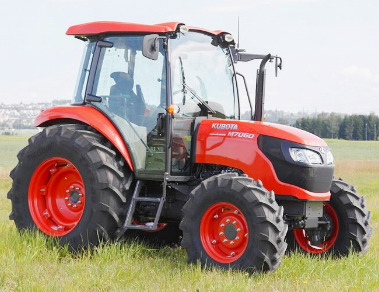

Kubota M7060 utility tractor was manufactured from 2013 to 2020. This model has
the following versions: M7060HF (ROPS, 2WD, 8-speed), M7060HFC (Cab, 2WD,
8-speed), M7060HD (ROPS, 4WD, 8-speed), M7060HDC (Cab, 4WD, 8-speed), M7060HD12
(ROPS, 4WD, 12-speed), M7060HDC12 (Cab, 4WD, 12-speed).
The Kubota M7060 tractor is powered by Kubota V3307-CR-TE4 4-stroke
4-cylinder direct injection turbocharged diesel engine with a maximum
power of 71 hp (52.9 kW).
The Kubota M7060 is fitted with two transmission options: 8x8 power
shuttle transmission, or 12x12 power shuttle transmission. The maximum
travel speed (forward/reverse): 22.5 mph (36 km/h). The closed center
hydraulic system used a piston pump with rated fluid flow of 11 gpm
(41.5 lpm). The main relief pressure is 2830 psi (195 bar).
The 2WD models are equipped with 7.50-16 front tires and 16.9-30 rear
tires. The 9.50-24 front tires and 16.9-30 rear tires are used for 4WD
tractors. The wheel base is 84.4" (2140 mm) for models with 2-wheel
drive and 83.1" (2110 mm) for models with 4-wheel drive. The Kubota
M7060 is compatible with Kubota LA1154 front end loader with lift
capacity to maximum height of 2928 lbs (1328 kg).
| Engine Troubleshooting |
| Engine will not start or starts up hard |
| Fuel filter is clogged - Replace the filter element |
| Fuel supply valve is closed - Open fuel supply valve |
| Air trapped in fuel system - Bleed air |
| Clogged fuel injectors - Change fuel injectors |
| Fuel injection pump is faulty - Repair or change injection pump |
| Low engine compression - Inspect cylinder block and change defective components |
| Engine stops running unexpectedly |
| Engine is not warmed up to required temperature - Warm up the engine |
| Fuel lines leaking air - Tighten clamps, change faulty pipes |
| Irregular fuel injection - Adjust fuel injection timing |
| Plugged fuel filter - Service or replace the filter |
| Dirty or faulty injectors - Clean or replace fuel injectors |
| Engine stops after starting |
| Fuel injection pump out of timing - Adjust injection timing |
| Plugged fuel filter - Clean or replace the filter |
| Fuel injector nozzles are dirty - Change injector nozzles |
| Fuel injection pump is faulty - Replace or rebuild injection pump |
| Air cleaner is clogged - Clean or replace the air cleaner element |
| Incorrectly set low idle speed - Adjust as required |
| Faulty fuel injection pump - Install a new fuel pump or repair |
| Fuel injector nozzles are damaged or dirty - Inspect injector nozzles and change if required |
| The valve clearance is not adjusted - Adjust valve clearance |
| Insufficient coolant fluid - Top up coolant. Check for coolant leaks |
| Cooling system is clogged or cooling parts are worn - Service the cooling system or change faulty parts |
| Insufficient engine oil - Need to add engine oil |
| Fan belt is defective or belt tension is not adjusted - Adjust correctly or change the belt |
| Thermostat malfunction - Check thermostat, replace if necessary |
| Fuel injectors are clogged or faulty - Test fuel injectors and change if necessary |
| Improper fuel injection pressure - Repair or replace injection pump |
| Clogged air filter - Service or replace the air filter |
| Oil filter element clogging - Clean or replace engine oil filter element |
| Engine overloaded - Change to lower gear or reduce load |
| Valve clearance is wrong - Adjust valve clearance |
| Incorrect low idle setting - Adjust the low idle speed |
| Fuel hoses or pipes are clogged - Clean fuel hoses and pipes |
| Loss of compression: Leaking or broken valves - Change the valves |
| Abnormal engine knocking or noise |
| Timing of fuel injection pump is not adjusted - Check and correct settings |
| Fuel injector nozzles fault - Service or replace nozzles if required |
| Not enough engine oil - Need to add engine oil |
| Engine is not warmed up to required temperature - Normalize the engine temperature |
| Main bearings or crankshaft are worn out - Install new parts |
| Piston rings failure - Have piston rings replaced |
| The flywheel to crankshaft bolts are loose - Tighten bolts as required |
| Oil leakage: Worn gaskets or seals - Worn parts need to be replaced |
| Crankcase oil too light - Use oil of correct viscosity |
| Damaged or seized piston rings - Change piston rings |
| Valve stems and guides are worn - Valves must be replaced |
| Scored cylinder liners or pistons - Check pistons and liners, change as required |
| Electrical System Troubleshooting |
| Battery is not charging |
| Faulty cell in battery - Battery replacement required |
| Battery cable harness damage - Check battery cables for damage, change or repair |
| Corroded or loose battery cables and terminals - Tighten or service terminals and cables |
| Belt wear or improper belt tension adjustment - Replace belt or properly adjust belt tension |
| Low battery capacity - Battery needs to be recharged |
| Battery will not hold charge - Service or change the battery |
| Battery cable harness failure - Check battery electrical cable for defects, replace or repair |
| Battery terminals and cables are corroded or loose - Tighten or clean terminals and cables |
| Low battery power - Battery is drained, charge it |
| Discharged or defective battery - Replace or charge as required |
| Starter motor failing - Starter should be replaced |
| Improperly connected or disconnected wiring harness - Inspect wiring harness and connect properly |
| Transmission Troubleshooting |
| Difficulty shifting gears |
| Clutch is unadjusted or worn - Clutch needs to be adjusted or changed |
| Damaged or loose gear shift linkage - Repair or change shift linkage |
| Shift forks are damaged or worn - Change the shift forks |
| Faulty parts in the gear shifting mechanism - Change faulty parts |
| Transmission fluid pressure is insufficient |
| Insufficient oil supply - Fill the transmission housing to proper oil level |
| Transmission oil filter clogging (if fitted) - Replace or service transmission oil filter |
| Relief valve is faulty - Replace the valve |
| Damaged or worn bearings - Change the bearings |
| Low transmission fluid level - Fill system with correct transmission fluid level |
| Dirty transmission oil - Change transmission oil |
| Incorrect backlash or gears are defective - Change the gears or adjust backlash correctly |
| Shift forks are damaged or worn - Change defective shift forks |
| Broken gaskets or seals - Install new components |
| Cracked transmission case - Install a new transmission case |
| Hydraulics Troubleshooting |
| Excessive hydraulic system heat |
| System pressure has not been adjusted correctly - Pressure needs to be adjust correctly |
| Main relief valve is faulty or misadjusted - Adjust the valve or replace if necessary |
| Dirty hydraulic oil - The oil must be changed |
| Air in hydraulic system - Check the suction pipe, fittings, and pump seals |
| Hydraulic oil pressure too low |
| Hydraulic fluid level is insufficient - Fill the hydraulic system with oil |
| Hydraulic fluid filter is dirty - Clean or change hydraulic filter |
| Defective hydraulic pump - Test pump performance and replace pump if necessary |
| Faulty or incorrect setting hydraulic control valve - Replace or set properly |
| Hydraulic cylinder is broken - Check cylinder components for wear or damage and change if necessary |
| Leakage in hydraulic pipes - Identify leaks in the system and repair it |
| 3-point hitch raises slowly or won't raise |
| Hydraulic fluid level is insufficient - Fill the hydraulic system with oil |
| Cold oil in hydraulic system - Wait for oil to warm up |
| Hydraulic oil filter element clogging - Clean the hydraulic filter or install new filter element |
| Hydraulic pump is defective - Test pump flow rate and replace pump if required |
| Main relief valve is damaged or adjusted improperly - Adjust the valve or replace if necessary |
| Hydraulic control valve is defective or set improper - Adjust correctly or replace |
| Hydraulic cylinder is not working - Inspect cylinder components for wear or damage and change if required |
| Broken or loose suction line - Retighten or change |
| Hitch not dropping or hitch drops slowly |
| Faulty or incorrect setting hydraulic control valve - Adjust properly or replace |
| Hydraulic cylinder is faulty - Check cylinder components for damage or wear and change if necessary |
| Damaged hitch cross shaft - Replace the shaft |
| The hitch has any internal mechanical damage - Replace worn or faulty hitch parts |
| Hitch raises or lowers not smoothly |
| Hydraulic system sucks air - Inspect the suction line, pump seals, and fittings |
| Hydraulic oil is contaminated - Fill up with fresh hydraulic oil |
| Hydraulic pump is defective - Check pump capacity and change if necessary |
| Hydraulic control valve is faulty or out of adjustment - Replace or set correctly |
| Hydraulic cylinder is not working - Inspect cylinder components for damage or wear and change if required |
| Steering System Troubleshooting |
| Stiff steering |
| Steering column is worn or improperly fitted - Refit properly or change the steering column |
| Air enters in steering system - Bleed the system of air |
| Incorrect toe-in adjustment - Adjust toe-in properly |
| Improper tire pressure - Check the pressure and inflate tires as required |
| Hydraulic steering pump is defective - Repair or change steering pump |
| Damaged or worn hydrostatic steering unit - Check and replace as required |
| Stuck or faulty relief valve - Clean or change the relief valve |
| Insufficient steering fluid - Fill up the steering fluid |
| Steering system oil leakage - Tighten the steering line and hose joints |
| Excessive steering wheel play |
| Steering column coupling or shaft is worn - Replace faulty component |
| Worn or defective hydrostatic steering unit - Repair or replace the steering unit |
| Defective hydraulic steering pump - Check the steering pump and replace if necessary |
| Faulty or worn steering linkage or tie-rod ends - Change damaged part |
| Tractor pulls to left or right |
| Tires are not correctly inflated - Inflate tires as necessary |
| Toe-in adjustment is incorrect - Adjust toe-in properly |
| Steering linkage or tie-rod ends are defective - Change damaged part |
| Hydrostatic steering unit is defective or worn - Repair or change the steering unit |
| Steering cylinder is faulty - Repair or change hydraulic steering cylinder |
| Incorrectly adjusted or damaged front hub bearings - Adjust correctly or install new bearings |
