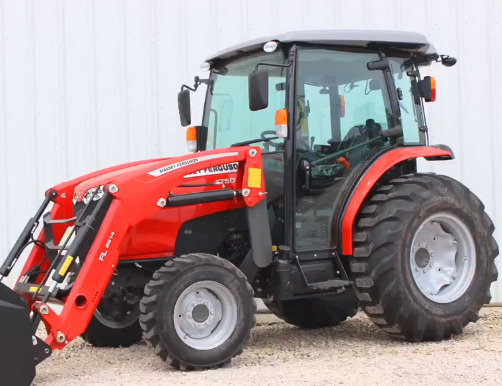

Massey Ferguson 1750M Tractor
The
Massey Ferguson 1750M compact utility tractor was manufactured between 2018 and
2021. The Massey Ferguson 1750M tractor is powered by 135.2 cu.in (2.2L)
Shibaura N4LDI-T 4 stroke 4-cylinder direct injection liquid-cooled diesel
engine with a rated power of 48.8 hp (36.4 kW).
The MF 1750M is fitted with two transmission options: Power shuttle
transmission with 12 forward and 12 reverse gears, or 3-range
hydrostatic transmission with infinite forward and reverse gears. The
maximum forward speed - 20.9 mph (33.5 km/h), maximum reverse speed -
20.3 mph (32.5 km/h).
The open center hydraulic system includes a gear pump with a flow of
12.1 gpm (45.6 lpm). The main relief pressure is 160 bar (2320 psi). The
Massey Ferguson 1750M is equipped with a power steering system, internal
wet disc brakes, 9.50x16 (AG) or 27x10.50-15 (Turf) front tires, and
13.6x28 (AG) or 41x18.00-20 (Turf) rear tires. The wheel base is 77.9"
(1980 mm). The tractor is compatible with the following attachments: MF
CB85 backhoe with digging depth of 101.6" (2580 mm), and
MF DL135 loader
with maximum lift height of 110.2" (2790 mm).
| Engine Model |
Shibaura N4LDI-T |
| Engine Type |
4 stroke, direct injection, four cylinder diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
135.2 (2.2) |
| Engine Bore, in (mm) |
3.31 (84.0) |
| Engine Stroke, in (mm) |
3.94 (100.0) |
| Rated Engine Power, hp (kW) |
48.8 (36.4) |
| Rated Engine Speed, rpm |
2600 |
| Aspiration |
Turbocharged |
| Fuel System |
Common rail direct injection |
| Fuel Tank Capacity, gal (L) |
10.6 (40) |
| Cooling System |
Liquid |
| Air Cleaner |
Dry Type |
| Emissions |
Tier 4 Final |
| Emission control |
Diesel Oxidation Catalyst (DOC) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Electric Starter |
| PTO Operational Type |
Independent |
| PTO Horsepower (Gear Transmission), hp (kW) |
38.1 (28.4) |
| PTO Horsepower (Hydro Transmission), hp (kW) |
36.2 (27.0) |
| Rear PTO Clutch |
Electro-hydraulic |
| Rear PTO Shaft |
6-Spline, 13/8 inch |
| Rear PTO Speeds, rpm |
540 |
| Mid PTO |
Optional |
| Mid PTO Speeds, rpm |
2000 |
| Transmission Type |
Power shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
12 |
| Clutch Type |
Single stage dry type |
| Shuttle Lever |
Electronic lever, left side of steering wheel |
| Maximum Forward Speed, mph (kph) |
17.8 (28.5) |
| Maximum Reverse Speed, mph (kph) |
17.5 (28.1) |
| Transmission Type |
Hydrostatic (Servo-HST) |
| Number of Forward Speeds |
Infinite (3-range) |
| Number of Reverse Speeds |
Infinite (3-range) |
| Maximum Forward Speed, mph (kph) |
20.9 (33.5) |
| Maximum Reverse Speed, mph (kph) |
20.3 (32.5) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Service Brake |
Internal wet disc |
| Front Tire Size (Std) |
9.50x16 |
| Rear Tire Size (Std) |
13.6x28 |
| Front Tire Size (Opt) |
9.50x16 |
| Rear Tire Size (Opt) |
16.9x24 |
| Front Tire Size (Lawn/Turf) |
27x10.50-15 |
| Rear Tire Size (Lawn/Turf) |
41x18.00-20 |
| Front Tire Size (Industrial) |
10-16.5 |
| Rear Tire Size (Industrial) |
17.5L-24 |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.1 (45.6) |
| Hydraulic Pressure, Bar (psi) |
160 (2320) |
| Hydraulic Capacity, gpm (Lpm) |
12.6 (47.8) |
| Number of Standard Remote Valves (Rear) |
3 |
| 3-Point Hitch Category |
1 with extendable ball ends |
| Draft Sensing or Lift Control |
Position and draft control |
| Loader joystick |
Standard equipment, integrated into right hand console |
| Rear Arms |
Telescopic draft link ends |
| Standard Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
3086 (1400) |
| Wheelbase, in (mm) |
77.9 (1980) |
| Length, in (mm) |
132.3 (3360) |
| Height (ROPS), in (mm) |
102.4 (2600) |
| Height (Cab), in (mm) |
92.9 (2360) |
| Overall Width, in (mm) |
65.4 (1660) |
| Ground Clearance, in (mm) |
14.8 (375) |
| Weight (ROPS, Gear transmission), lb (kg) |
3946 (1790) |
| Weight (ROPS, Hydro transmission), lb (kg) |
4045 (1835) |
| Weight (Cab, Gear transmission), lb (kg) |
4299 (1950) |
| Weight (Cab, Hydro transmission), lb (kg) |
4431 (2010) |
| Loader Model |
Massey Ferguson DL135 |
| Tool Carrier |
SS Quick Attach |
| Leveling Type |
Non self leveling (NSL) |
| Lift Cylinder Diameter, in (mm) |
2 x 2,75 (70) |
| Bucket Cylinder Diameter, in (mm) |
2 x 2,75 (70) |
| Maximum Lift Height-Pivot Pin, in (mm) |
111 (2800) |
| Maximum Dump Angle, deg |
48 |
| Maximum Rollback Angle, deg |
46 |
| Digging Depth, in (mm) |
3,0 (75) |
| Lift Capacity to Maximum Height-Pivot Pin, lb (kg) |
2610 (1180) |
| Breakout Force-Pivot Pin, lb (kg) |
4000 (1810) |
| Breakout force (at 800 mm), lb (kg) |
2860 lbs [1297) |
| Breakout force (bucket), lb (kg) |
4140 lbs (1877) |
| Lift to full height (at pin), lb (kg) |
2420 lbs (1097) |
| Lift to full height (at 800 mm), lb (kg) |
1760 lbs (798) |
| Raising Time (Ground Level to Full Height), sec |
3,7 |
| Lowering Time (Full Height to Ground Level), sec |
2,5 |
| Bucket Dumping Time (Full Rollback to Full Dump), sec |
3,3 |
| Bucket Rollback Time (Full Dump to Full Rollback), sec |
2,2 |
| Backhoe Model |
Massey Ferguson CB85 |
| Digging Depth, in (mm) |
101,6 (2600) |
| Maximum Reach, in (mm) |
130 (3300) |
| Boom Float |
Yes |
| Loading Height, in (mm) |
74,1 (1900) |
| Stabilizer Spread, in (mm) |
119,7 (3000) |
| Transport Height, in (mm) |
85,4 (2200) |
| Transport Width, in (mm) |
56 (1400) |
| Swing Arc, deg |
180 |
| Bucket Rotation, deg |
180 |
| Bucket Digging Force, lb (kg) |
3893 (1766) |
| Boom Digging Force, lb (kg) |
2507 (1137) |
