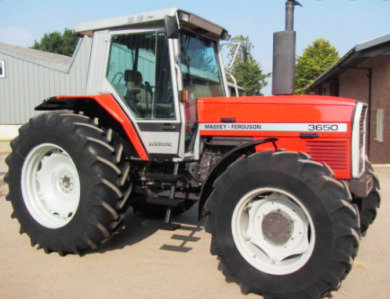

Massey Ferguson 3650 Tractor
The
Massey Ferguson 3650 row crop tractor was manufactured from 1987 to 1990. The
Massey Ferguson 3650 tractor is equipped with a 354 cu.in (5.8L) Perkins
AT6.3544CC 4 stroke 6-cylinder direct injection turbocharged intercooled diesel
engine with a rated power of 144 hp (106.7 kW) and 530 Nm (391 lb-ft) of peak
torque at 1600 rpm.
The transmission includes a hydraulic dry clutch with 13.8" (352 mm)
cerametallic disc, and two-speed powershift gearbox with 16 forward and
reverse gears. The maximum travel speed (forward and reverse): 18.2 mph
(29.3 km/h) / 18 mph (28.9 km/h). The open center hydraulic system used
a gear pump with a flow rate of 14.4 gpm (54.5 lpm). The main relief
pressure is 190 bar (2755 psi).
The 2-wheel drive models are equipped with 14Lx16 or 11.00x16 front
tires and 16.9x38 rear tires. The 13.6x28 or 14.9x28 front tires and
18.4x38 or 20.8x38 rear tires are used for tractors with 4-wheel drive.
The wheelbase is 109.3" (2770 mm) for models with 2WD and 108.8" (2760
mm) for models with 4WD. The tractor is compatible with the following
attachments: a Massey Ferguson 246 loader with lift capacity to maximum
height of 4500 lbs (2041 kg), or Massey Ferguson 856 loader with lift
capacity to maximum height of 4100 lbs (1860 kg).
| Engine Model |
Perkins AT6.354.4CC |
| Engine Type |
4 stroke direct injection turbocharged intercooled diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
354 (5.8) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
144.0 (106.7) |
| Rated Engine Speed, rpm |
2400 |
| Maximum Torque, Nm (lb-ft) |
530 (391) |
| Torque Speed, rpm |
1600 |
| Fuel System |
Direct injection |
| Fuel Injection System |
Mechanical |
| Cooling System |
Viscostatic fan |
| Intercooled |
Air cooled |
| Air cleaner |
Dual, dry element |
| Fuel Tank Capacity, gal (L) |
69.0 (261.0) |
| Oil Capacity, qts (L) |
20.0 (19.0) |
| Coolant Capacity, qts (L) |
28.5 (27.0) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Control |
Mechanical speed change |
| PTO Horsepower, hp (kW) |
130.0 (97.0) |
| PTO Clutch |
Electro-hydraulic |
| PTO Speeds, rpm |
540/1000 |
| PTO / Engine Speeds, rpm |
540/1992 |
| PTO / Engine Speeds, rpm |
1000/2090 |
| Transmission Type |
2-Speed power shift |
| Gearbox Type |
16F/16R |
| Number of Forward Speeds |
16 |
| Number of Reverse Speeds |
16 |
| Clutch Type |
Hydraulic dry disc |
| Clutch Disc Diameter, in (mm) |
13.8 (352) |
| Maximum Forward Speed, mph (kph) |
18.2 (29.3) |
| Maximum Reverse Speed, mph (kph) |
18.0 (28.9) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Steering Column |
Telescopic |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (2WD) |
14Lx16 |
| Front Tire Size (2WD) |
11.00x16 |
| Front Tire Size (4WD) |
13.6x28 |
| Front Tire Size (4WD) |
14.9x28 |
| Rear Tire Size (2WD) |
16.9x38 |
| Rear Tire Size (4WD) |
18.4x38 |
| Rear Tire Size (4WD) |
20.8x38 |
| Front Track Width (2WD), in (mm) |
60.7-91.9 (1540-2330) |
| Front Track Width (4WD), in (mm) |
66.4-85.6 (1680-2170) |
| Rear Track Width (Row-Crop), in (mm) |
60-131.6 (1520-3340) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
14.4 (54.5) |
| Steering Pump Flow, gpm (Lpm) |
15.4 (58.3) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| Hydraulic Capacity, gal (L) |
22.5 (85.3) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position control and electronic draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
9400 (4265) |
| Wheelbase (2WD), in (mm) |
109.3 (2770) |
| Wheelbase (4WD), in (mm) |
108.8 (2760) |
| Length (2WD), in (mm) |
182.8 (4640) |
| Length (4WD), in (mm) |
183.5 (4660) |
| Height (Cab), in (mm) |
113.7 (2880) |
| Overall Width, in (mm) |
94 (2380) |
| Ground Clearance, in (mm) |
17.3 (430) |
| Weight (2WD), lb (kg) |
12035 (5460) |
| Weight (4WD), lb (kg) |
13140 (5960) |
