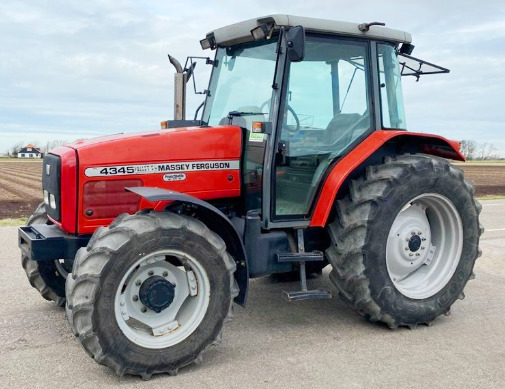

Massey Ferguson 4345 Tractor
The
Massey Ferguson 4345 is a 2-wheel drive or 4-wheel drive utility tractor from
4300 series. This model was manufactured between 2001 and 2003. The Massey
Ferguson 4345 tractor is powered by 244 cu.in (4L) Perkins 1004.40T 4-stroke
4-cylinder direct injection wastegate turbo diesel engine. The engine has a
cylinder bore of 3.94" (100 mm), piston stroke of 5.00" (127 mm), rated power of
85 hp (62.5 kW), and 363 Nm (268 lb-ft) of maximum torque at 1200 rev/min.
The Massey Ferguson 4345 is fitted with 4 types of transmission. Type 1:
8x2 non-synchronized gear transmission. Type 2: 12x4 partially
synchronized transmission. Type 3: 12x12 synchronized shuttle
transmission. Type 4: 24x24 synchronized shuttle transmission. Max.
travel speed (forward/reverse): 24.7 mph (39.8 km/h) and 23.9 mph (38.5
km/h). The open center hydraulic system includes a gear pump with fluid
flow rate of 7.4 gpm (28 lpm) or 5.8 gpm (22 lpm).
The hydraulic pressure is 210 bar (3045 psi). The Massey Ferguson 4345
was equipped with a hydrostatic power steering, independent hydraulic
wet disc brakes, 10.00-16 (2WD) or 13.6R24 (4WD) front tires, and
16.9R34 rear tires. The wheel base is 93" (2360 mm). The tractor is
compatible with a Massey Ferguson 1070 front end loader with 84" (2130
mm) bucket and max lift height of 154" (3910 mm).
| Engine Model |
Perkins 1004.40T |
| Engine Type |
4 Stroke water cooled direct injection diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
244 (4.0) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Wastegate Turbo |
| Rated Engine Power, hp (kW) |
85.0 (62.5) |
| Maximum Engine Power, hp (kW) |
90.0 (67.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
363 (268) |
| Torque Speed, rpm |
1200 |
| Compression |
17.3:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
34.3 (129.4) |
| Coolant Capacity, qts (L) |
18.4 (17.5) |
| Oil capacity, qts (L) |
6.8 (6.4) |
| Air cleaner |
Three stage dry element |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
45/80 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
75.8 (55.7) |
| PTO Clutch |
Hydraulic wet disc |
| PTO Shaft Diameter, in (mm) |
1.38 (35) |
| PTO Speeds, rpm |
540/540E, 540/1000 |
| Engine Speeds, rpm |
1979/1421, 1902/2000 |
| Transmission Type |
Non-Synchronized gear |
| Gearbox Type |
8F/2R |
| Number of Forward Speeds |
8 |
| Number of Reverse Speeds |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
21.5 (34.4) |
| Maximum Reverse Speed, mph (kph) |
11.0 (17.6) |
| Transmission Type |
Partially synchronized |
| Gearbox Type |
12F/4R |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
| Maximum Reverse Speed, mph (kph) |
13.5 (21.6) |
| Transmission Type |
Synchronized shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
12 |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
23.5 (37.9) |
| Maximum Reverse Speed, mph (kph) |
23.9 (38.5) |
| Transmission Type |
Synchronized shuttle |
| Gearbox Type |
24F/24R |
| Number of Forward Speeds |
24 |
| Number of Reverse Speeds |
24 |
| Clutch Type |
Wet disc |
| Clutch Plate Diameter, in (mm) |
13 (330) |
| Maximum Forward Speed, mph (kph) |
23.5 (37.9) |
| Maximum Reverse Speed, mph (kph) |
23.9 (38.5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Steering Column |
Telescopic |
| Service Brake |
Independent hydraulic wet disc |
| Front Tire Size (2WD) |
10.00-16 |
| Front Tire Size (4WD) |
13.6R24 |
| Rear Tire Size |
16.9R34 |
| Front Track (2WD), in (mm) |
52.2-71.9 (1320-1820) |
| Front Track (4WD), in (mm) |
55.7-75.5 (1410-1910) |
| Rear Track, in (mm) |
60.5-88.5 (1530-2240) |
| Hydraulic System Type |
Open center |
| Linkage Pump Flow (Std), gpm (Lpm) |
7.4 (28.0) |
| Linkage Pump Flow (Opt), gpm (Lpm) |
5.8 (22.0) |
| Auxiliary Pump Type |
Externally mounted dual element gear pump |
| Auxiliary Pump Flow, gpm (Lpm) |
10.0 (38.0) |
| Combined Flow, gpm (Lpm) |
17.4 (66.0) |
| Hydraulic Pressure, Bar (psi) |
210 (3045) |
| Hydraulic System Capacity, gal (L) |
13.2 (50.0) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category (Std) |
1/2, interchangeable ball end |
| 3-Point Hitch Category (Opt) |
2, fixed ball end |
| Draft Sensing or Lift Control |
Mechanical Draft, Position and Response control |
| Rear Arms |
Telescopic lower links |
| Standard Lift Capacity at lift pin, lb (kg) |
6600 (3000) |
| Optional Lift Capacity at lift pin, lb (kg) |
8800 (4000) |
| Standard Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
3665 (1660) |
| Optional Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
4500 (2040) |
| Wheelbase, in (mm) |
93 (2360) |
| Length, in (mm) |
163 (4140) |
| Height (ROPS), in (mm) |
104 (2640) |
| Height (Cab), in (mm) |
101 (2560) |
| Overall Width, in (mm) |
81 (2050) |
| Ground Clearance, in (mm) |
15.4 (390) |
| Maximum Turning Angle, deg |
55 |
| Turning Radius, in (mm) |
158.1 (4000) |
| Weight (2WD, ROPS), lb (kg) |
6215 (2820) |
| Weight (4WD, ROPS), lb (kg) |
6555 (2970) |
| Weight (2WD, Cab), lb (kg) |
7622 (3455) |
| Weight (4WD, Cab), lb (kg) |
8173 (3710) |
