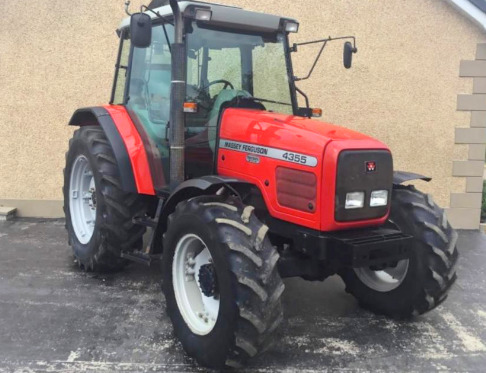

Massey Ferguson 4355 Tractor
The
Massey Ferguson 4355 is a 4300 series utility tractor. This model was
manufactured from 2001 to 2003. The Massey Ferguson 4355 tractor is powered by
244 cubic inches (4L) Perkins 1004.40T 4-cylinder direct injection water cooled
wastegate turbo diesel engine with a rated power of 95 hp (70 kW) and 403 Nm
(299 lb-ft) of max torque at 1200 rev/min.
The Massey Ferguson 4355 is equipped with 4 types of transmission. Type
1: 12x4 synchronized transmission. Type 2: 12x12 mechanical shuttle
transmission. Type 3: 12x12 power shuttle transmission. Type 4: 24x24
synchronized power shuttle transmission. The maximum travel speed
(forward/reverse): 24.7 mph (39.8 km/h) and 24.8 mph (39.9 km/h). The
open center hydraulic system includes a gear pump with a flow rate of 10
gpm (37.9 lpm).
The hydraulic pressure is 210 bar (3050 psi). The 2WD models are
equipped with 10.00x16 front tyres and 16.9R34 rear tyres. The 13.6R24
front tyres and 16.9R34 rear tyres fit 4WD tractors. The wheelbase is
93" (2360 mm). The Massey Ferguson 4355 tractor is compatible with a
MF
1070 front-end loader with lift capacity to maximum height of 4875 lbs
(2210 kg) and bucket width of 84" (2130 mm).
| Engine Model |
Perkins 1004.40T |
| Engine Type |
4 Stroke, water cooled, direct injection diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
244 (4.0) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Wastegate Turbo |
| Rated Engine Power, hp (kW) |
95.0 (70.0) |
| Maximum Engine Power, hp (kW) |
100.0 (74.5) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
403 (299) |
| Torque Speed, rpm |
1200 |
| Compression |
17.3:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
33.6 (127.4) |
| Coolant Capacity, qts (L) |
18.4 (17.5) |
| Oil capacity, qts (L) |
6.8 (6.4) |
| Air cleaner |
Three stage dry element |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
45/80 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
86.8 (63.8) |
| PTO Clutch |
Hydraulic wet disc |
| PTO Shaft Diameter, in (mm) |
1.38 (35) |
| PTO Speeds, rpm |
540/540E, 540/1000 |
| Engine Speeds, rpm |
1979/1421, 1902/2000 |
| Transmission Type |
Synchro gearbox |
| Gearbox Type |
12F/4R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
| Maximum Reverse Speed, mph (kph) |
10.0 (16.0) |
| Transmission Type |
Mechanical shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
| Maximum Reverse Speed, mph (kph) |
24.8 (39.9) |
| Transmission Type |
Power shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
| Maximum Reverse Speed, mph (kph) |
24.8 (39.9) |
| Transmission Type |
Synchro gearbox, with PowerShuttle |
| Gearbox Type |
24F/24R |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
24 |
| Clutch Type |
Wet disc |
| Clutch Plate Diameter, in (mm) |
13.1 (330) |
| Control |
Electronic Control Unit |
| Gearbox Reduction |
4.7:1 |
| Maximum Forward Speed, mph (kph) |
24.7 (39.8) |
| Maximum Reverse Speed, mph (kph) |
24.8 (39.9) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Steering Column |
Telescopic |
| Service Brake |
Independent hydraulic wet disc |
| Parking Brake |
Hand lever operated |
| Front Tire Size (2WD) |
10.00-16 |
| Front Tire Size (4WD) |
13.6R24 |
| Rear Tire Size |
16.9R34 |
| Front Track (2WD), in (mm) |
52.2-71.9 (1320-1820) |
| Front Track (4WD), in (mm) |
55.7-75.5 (1410-1910) |
| Rear Track, in (mm) |
60.5-88.5 (1530-2240) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
10.0 (37.9) |
| Combined Pump Flow (Std), gpm (Lpm) |
17.2 (65.1) |
| Combined Pump Flow (Opt), gpm (Lpm) |
17.4 (65.9) |
| Hydraulic Pressure, Bar (psi) |
210 (3045) |
| Hydraulic System Capacity, gal (L) |
13.2 (50.0) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category |
2, fixed ball end |
| Draft Sensing or Lift Control |
Position and draft control |
| Rear Arms |
Telescopic lower links |
| Standard Lift Capacity at lift pin, lb (kg) |
8800 (4000) |
| Optional Lift Capacity at lift pin, lb (kg) |
11000 (5000) |
| Standard Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
3662 (1660) |
| Optional Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
4495 (2035) |
| Wheelbase, in (mm) |
93 (2360) |
| Length, in (mm) |
163 (4140) |
| Height (ROPS), in (mm) |
103 (2610) |
| Height (Cab), in (mm) |
100 (2540) |
| Overall Width, in (mm) |
81 (2050) |
| Ground Clearance, in (mm) |
15.4 (390) |
| Maximum Turning Angle, deg |
55 |
| Turning Radius, in (mm) |
158.1 (4000) |
| Weight (2WD, ROPS), lb (kg) |
6215 (2820) |
| Weight (4WD, ROPS), lb (kg) |
6555 (2970) |
| Weight (2WD, Cab), lb (kg) |
7622 (3455) |
| Weight (4WD, Cab), lb (kg) |
8173 (3710) |
