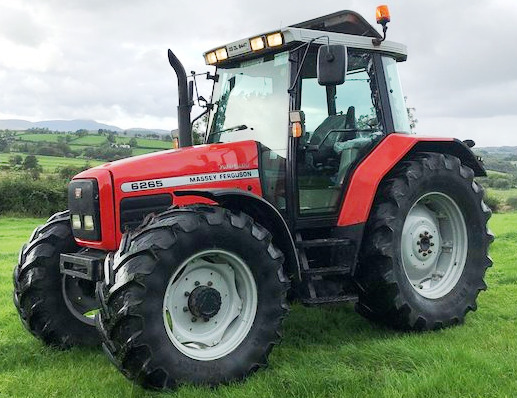

Massey Ferguson 6265 Tractor
The
Massey Ferguson 6265 is a 2WD or 4WD row-crop tractor. This model was
manufactured between 1999 and 2003. The Massey Ferguson 6265 tractor is powered
by 244.1 cu.in (4L) Perkins 1004-40T 4-stroke vertical inline 4-cylinder direct
injection turbocharged diesel engine with a rated power of 103.3 Hp (77 kW) and
417 Nm (309 lb-ft) of max torque at 1400 rpm.
The Massey Ferguson 6265 is fitted with two transmission options:
Dynashift Plus transmission with 32 forward and 32 reverse gears, or
Dynashift Plus AutoDrive transmission with 16 forward and 16 reverse
gears. Max travel speed (forward/reverse): 25 mph (40 km/h). The
hydraulics can be of two types. The open center hydraulic system has a
pump with fluid flow rate of 15 gal/min (57 l/min). The closed center
pressure flow compensated hydraulic system has a pump with fluid flow
rate of 29.2 gal/min (110 l/min).
The hydraulic pressure is 200 bar (2900 psi). The Massey Ferguson 6265
is equipped with a hydrostatic steering system, telescopic steering
column, independent hydraulic wet disc brakes, 14.9x28 front tires, and
18.4x38 rear tires. The wheel base is 101" (2555 mm). The tractor is
compatible with Massey Ferguson 1070 loader with lift capacity to
maximum height of 4875 lbs (2211 kg).
| Engine Model |
Perkins 1004-40T |
| Engine Type |
4 Stroke, 4-cylinder turbocharged diesel |
| Number of Cylinders |
4, Vertical inline |
| Displacement, cu in (L) |
244.1 (4.00) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
103.3 (77.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
417 (309) |
| Torque Speed, rpm |
1400 |
| Compression |
17.3:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Direct injection |
| Lubrication System |
Gear type pump |
| Oil Filter |
External canister type |
| Cooling System |
Centrifugal pump pressurised radiator |
| Air Cleaner |
Two-Stage, dry element |
| Valves |
Overhead, push-rod operated |
| Fuel Tank Capacity, gal (L) |
42.3 (160.0) |
| Oil Capacity, qts (L) |
8.0 (7.5) |
| Coolant Capacity, qts (L) |
17.6 (16.5) |
| Electrical System Rating, Volts |
12 |
| PTO Horsepower, hp (kW) |
95.0 (70.8) |
| PTO Clutch |
Hydraulic |
| Rear PTO Operational Type |
Independent |
| Rear PTO Speed, rpm |
540/1000 |
| Rear PTO / Engine Speed, rpm |
540/1980, 1000/2000 |
| Front PTO Operational Type |
Independent |
| Front PTO Speed, rpm |
1000 |
| Front PTO / Engine Speed, rpm |
1000/2040 |
| Transmission Type |
Dynashift Plus |
| Gearbox Type |
32F/32R, 4-speed powershift |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
32 |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
23.3 (37.4) |
| Maximum Reverse Speed, mph (kph) |
23.3 (37.4) |
| Transmission Type |
DynaShift Plus AutoDrive |
| Gearbox Type |
16F/16R, Fully synchronized |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
16 |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
25.0 (40.0) |
| Maximum Reverse Speed, mph (kph) |
25.0 (40.0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Column |
Telescopic |
| Steering Cylinder |
One, double acting |
| Service Brake |
Independent hydraulic wet discs |
| Front Tire Size |
14.9x28 |
| Rear Tire Size |
18.4x38 |
| Hydraulic System Type (Std) |
Open center |
| Hydraulic System Type (Opt) |
Closed center pressure flow compensated |
| Implement Pump Flow (Open Center), gpm (Lpm) |
15.0 (57.0) |
| Implement Pump Flow (Closed Center), gpm (Lpm) |
29.2 (110.0) |
| Hydraulic Pressure, Bar (psi) |
200 (2900) |
| Steering Pump Flow, gpm (Lpm) |
8.6 (32.7) |
| Hydraulic Fluid Capacity, gal (L) |
16.4 (62.0) |
| 3-Point Hitch Category |
2 |
| Standard Front Lift Capacity, lb (kg) |
4850 (2200) |
| Standard Rear Lift Capacity, lb (kg) |
14300 (6500) |
| Wheelbase, in (mm) |
101 (2555) |
| Overall Length, in (mm) |
165 (4180) |
| Height (Cab), in (mm) |
112 (2850) |
| Width, in (mm) |
87 (2200) |
| Ground Clearance, in (mm) |
17 (430) |
| Turning Radius, in (mm) |
176 (4450) |
| Weight (2WD), lb (kg) |
9900 (4500) |
| Weight (4WD), lb (kg) |
10540 (4780) |
