New Holland Powerstar 100 Tractor
The
New Holland Powerstar 100 utility tractor was manufactured from 2018 to 2021.
The New Holland Powerstar 100 tractor is powered by 207 cu.in (3.4L) FPT F5G
4-cylinder 16-valve direct injection turbocharged aftercooled diesel engine with
a rated power of 99 hp (73.8 kW) at 2300 rev/min.
The New Holland Powerstar 100 is fitted with two transmission options:
Power Shuttle transmission with 12 forward and 12 reverse gears, or
Power Shuttle Creeper transmission with 20 forward and 20 reverse gears.
Max. travel speed (forward/reverse): 19 mph (30 km/h).
The open center hydraulic system includes a dual gear pump with rated
fluid flow of 16.9 gallons per minute (64 liters per minute). The
2-wheel drive models are equipped with 10.0x16 front tires and 18.4x30
rear tires. The 12.4x24 front tires and 18.4x30 rear tires are used for
tractors with 4-wheel drive. The wheelbase is 92.2" (2345 mm) for models
with 2WD and 89.9" (2285 mm) for models with 4WD.

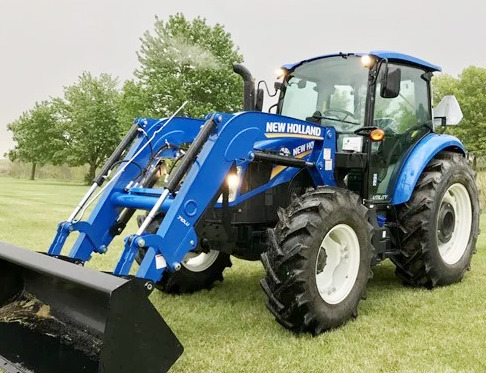

The Powerstar 100 tractor is compatible with the following attachments:
New Holland 655TL NSL front end loader with lift capacity to full height
(at 0.8m) of 2478 lbs (1124 kg), or New Holland 655TL MSL front end
loader with lift capacity to full height (at 0.8m) of 3179 lbs (1441
kg).
| Engine Model |
FPT F5G |
| Engine Type |
Four-cylinder 16 valve turbocharged aftercooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu.in (L) |
207 (3.40) |
| Engine Bore, in (mm) |
3.90 (99.0) |
| Engine Stroke, in (mm) |
4.33 (110.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
99.0 (73.8) |
| Rated Engine Speed, rpm |
2300 |
| Fuel System |
Common rail direct injection |
| Fuel Injection Pump |
Bosch |
| Air Cleaner |
Dual element |
| Emission Level |
Tier 4B |
| Emission Control |
DOC and EGR |
| Fuel Tank Capacity, gal (L) |
30.3 (115.0) |
| Oil Capacity, qts (L) |
9.5 (9.0) |
| Coolant Capacity, qts (L) |
15.9 (15.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
120 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
85.0 (63.4) |
| PTO Clutch |
Electro-hydraulic wet disc |
| PTO Speed, rpm |
540/1000 |
| Transmission Type |
Power Shuttle |
| Gearbox Type |
12F/12R, hydraulic shuttle shift |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Synchronized Gears |
4 |
| Non-synchronized Ranges |
3 |
| Maximum Speed, mph (kph) |
19.0 (30.0) |
| Minimum Speed, mph (kph) |
1.13 (1.81) |
| Transmission Type |
Power Shuttle with Creeper |
| Gearbox Type |
20F/20R, hydraulic shuttle shift |
| Number of Forward Gears |
20 |
| Number of Reverse Gears |
20 |
| Synchronized Gears |
4 |
| Non-synchronized Ranges |
3 |
| Maximum Speed, mph (kph) |
19.0 (30.0) |
| Minimum Speed (Creeper), mph (kph) |
0.16 (0.25) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (2WD) |
10.0x16 |
| Rear Tire Size (2WD) |
18.4x30 |
| Front Tire Size (4WD) |
12.4x24 |
| Rear Tire Size (4WD) |
18.4x30 |
| Front Tread, in (mm) |
56.6-76.6 (1430-1940) |
| Rear Tread, in (mm) |
55.5-76.2 (1400-1930) |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Dual gear |
| Implement Pump Flow, gpm (Lpm) |
16.9 (64.0) |
| Steering Pump Flow, gpm (Lpm) |
9.7 (37.0) |
| Number of Standard Remote Valves |
2/3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Mechanical draft control |
| Lift Capacity at 24" (610mm) behind pin (Std), lb (kg) |
5620 (2550) |
| Lift Capacity at 24" (610mm) behind pin (Opt), lb (kg) |
9700 (4400) |
| Wheelbase (2WD), in (mm) |
92.2 (2345) |
| Wheelbase (4WD), in (mm) |
89.9 (2285) |
| Length (2WD), in (mm) |
163.1 (4145) |
| Length (4WD), in (mm) |
160.9 (4085) |
| Height (ROPS), in (mm) |
106.5 (2705) |
| Height (Cab), in (mm) |
102.1 (2595) |
| Overall Width, in (mm) |
75.7 (1925) |
| Ground Clearance, in (mm) |
10.3 (265) |
| Weight (2WD, ROPS), lb (kg) |
6990 (3170) |
| Weight (4WD, ROPS), lb (kg) |
7670 (3480) |
| Weight (2WD, Cab), lb (kg) |
7475 (3390) |
| Weight (4WD, Cab), lb (kg) |
8155 (3700) |
