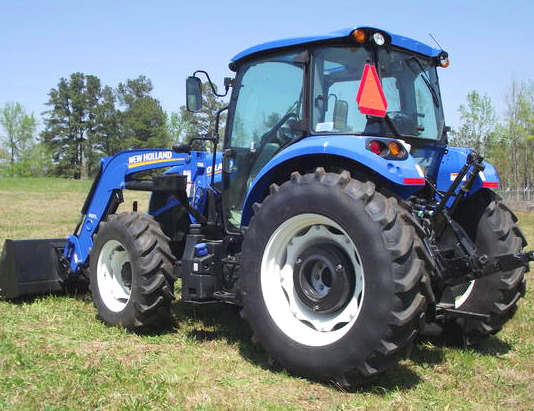

New Holland Powerstar 120 Tractor
The
New Holland Powerstar 120 is a 2WD or 4WD utility tractor. This model was
manufactured from 2018 to 2021. The New Holland Powerstar 120 tractor is powered
by FPT F5G 4-cylinder 16-valve turbocharged aftercooled diesel diesel engine. A
207 cubic inches (3.4L) engine has a cylinder bore of 3.9" (99 mm), piston
stroke of 4.33" (110 mm), and rated power of 117 hp (87.2 kW).
The New Holland Powerstar 120 is fitted with 2 transmission options:
Power Shuttle transmission with 12 forward and 12 reverse gears, or
Power Shuttle Creeper transmission with 20 forward and 20 reverse gears.
The maximum travel speed (forward/reverse): 19 mph (30 km/h). The open
center hydraulic system used a dual gear pump with a flow rate of 16.9
gal/min (64 l/min).
The New Holland Powerstar 120 is equipped with a hydrostatic power
steering, wet disc brakes, 10.0x16 (2WD) or 14.9x24 (4WD) front tires,
and 18.4x30 (2WD) or 18.4x34 (4WD) rear tires. The wheel base is 92.2"
(2345 mm) for 2-wheel drive models and 89.9" (2285 mm) for 4-wheel drive
models. Compatible attachments for the tractor: a
New Holland 655TL NSL
front end loader with lift capacity to full height (at 0.8m) of 2478 lbs
(1124 kg), or New Holland 655TL MSL front end loader with lift capacity
to full height (at 0.8m) of 3179 lbs (1441 kg).
Engine Model |
FPT F5G |
Engine Type |
Four-cylinder 16 valve turbocharged aftercooled diesel |
Number of Cylinders |
4 |
Displacement, cu.in (L) |
207 (3.40) |
Engine Bore, in (mm) |
3.90 (99.0) |
Engine Stroke, in (mm) |
4.33 (110.0) |
Aspiration |
Turbocharged |
Rated Engine Power, hp (kW) |
117.0 (87.2) |
Rated Engine Speed, rpm |
2300 |
Fuel System |
Common rail direct injection |
Fuel Injection Pump |
Bosch |
Air Cleaner |
Dual element |
Emission Level |
Tier 4B |
Emission Control |
DOC and EGR |
Fuel Tank Capacity, gal (L) |
30.3 (115.0) |
Oil Capacity, qts (L) |
9.5 (9.0) |
Coolant Capacity, qts (L) |
15.9 (15.0) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
Alternator Rating, Amps |
120 |
PTO Operational Type |
Independent |
PTO Horsepower, hp (kW) |
100.0 (74.5) |
PTO Clutch |
Electro-hydraulic wet disc |
PTO Speed, rpm |
540/1000 |
Transmission Type |
Power Shuttle |
Gearbox Type |
12F/12R, hydraulic shuttle shift |
Number of Forward Gears |
12 |
Number of Reverse Gears |
12 |
Synchronized Gears |
4 |
Non-synchronized Ranges |
3 |
Maximum Speed, mph (kph) |
19.0 (30.0) |
Minimum Speed, mph (kph) |
1.13 (1.81) |
Transmission Type |
Power Shuttle with Creeper |
Gearbox Type |
20F/20R, hydraulic shuttle shift |
Number of Forward Gears |
20 |
Number of Reverse Gears |
20 |
Synchronized Gears |
4 |
Non-synchronized Ranges |
3 |
Maximum Speed, mph (kph) |
19.0 (30.0) |
Minimum Speed (Creeper), mph (kph) |
0.16 (0.25) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front steer |
Steering System |
Hydrostatic power |
Brakes Type |
Wet disc |
Front Tire Size (2WD) |
10.0x16 |
Rear Tire Size (2WD) |
18.4x30 |
Front Tire Size (4WD) |
14.9x24 |
Rear Tire Size (4WD) |
18.4x34 |
Front Tread, in (mm) |
56.6-76.6 (1430-1940) |
Rear Tread, in (mm) |
55.5-76.2 (1400-1930) |
Hydraulic System Type |
Open center |
Implement Pump Type |
Dual gear |
Implement Pump Flow, gpm (Lpm) |
16.9 (64.0) |
Steering Pump Flow, gpm (Lpm) |
9.7 (37.0) |
Number of Standard Remote Valves |
2/3 |
3-Point Hitch Category |
2 |
Draft Sensing or Lift Control |
Mechanical draft control |
Lift Capacity at 24" (610mm) behind pin (Std), lb (kg) |
5620 (2550) |
Lift Capacity at 24" (610mm) behind pin (Opt), lb (kg) |
9700 (4400) |
Wheelbase (2WD), in (mm) |
92.2 (2345) |
Wheelbase (4WD), in (mm) |
89.9 (2285) |
Length (2WD), in (mm) |
163.1 (4145) |
Length (4WD), in (mm) |
160.9 (4085) |
Height (ROPS), in (mm) |
106.5 (2705) |
Height (Cab), in (mm) |
102.1 (2595) |
Overall Width, in (mm) |
75.7 (1925) |
Ground Clearance, in (mm) |
10.3 (265) |
Weight (2WD, ROPS), lb (kg) |
6990 (3170) |
Weight (4WD, ROPS), lb (kg) |
7670 (3480) |
Weight (2WD, Cab), lb (kg) |
7475 (3390) |
Weight (4WD, Cab), lb (kg) |
8155 (3700) |
