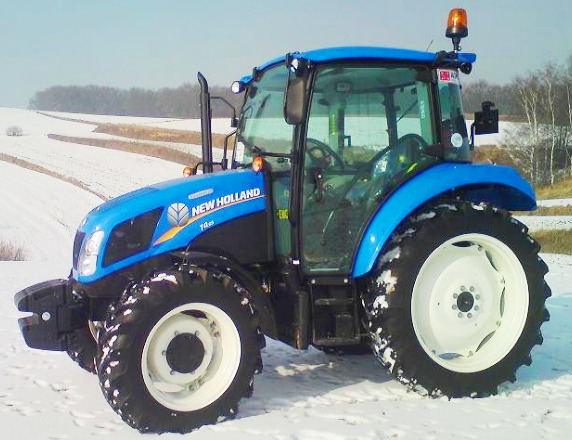

New Holland T4.55 Tractor
The
New Holland T4.55 is a PowerStar T4 series utility tractor. This model was
manufactured from 2012 to 2018. The New Holland T4.55 tractor is powered by 207
cu.in (3.4L) FPT F5C 4-cylinder 8-valve direct injection turbocharged diesel
engine. The engine has a cylinder bore of 3.9" (99 mm), piston stroke of 4.33"
(110 mm), rated power of 55 hp (41 kW), and 240 Nm (177 lb-ft) of max torque at
1500 rev/min.
The New Holland T4.55 PowerStar is fitted with two transmission options:
12x12 Synchro Shuttle transmission with mechanical shuttle shift, and
12x12 Power Shuttle transmission with hydraulic shuttle shift. The
maximum forward speed - 18.8 mph (30 km/h), minimum creeper speed - 0.06
mph (0.1 km/h). The open center hydraulic system used a dual gear pump
with fluid flow rate of 12.5 gpm (47.5 lpm).
The 2-wheel drive models are equipped with 7.50x16 front tyres and
14.9x28 rear tyres. The 11.2x24 front tyres and 16.9x30 rear tyres fit
4-wheel drive tractors. The wheelbase is 85.8" (2180 mm) for models with
2WD and 83.8" (2130 mm) for models with 4WD. The New Holland T4.55 is
compatible with a NH 655TL front end loader with lift capacity to full
height (at 0.8m) of 2478 lbs (1124 kg) for NSL models and 3179 lbs (1441
kg) for MSL models.
| Engine Model |
FPT F5C |
| Engine Type |
4-cylinder 8-valve turbocharged diesel |
| Number of Cylinders |
Four |
| Displacement, cu.in (L) |
207 (3.40) |
| Engine Bore, in (mm) |
3.90 (99.0) |
| Engine Stroke, in (mm) |
4.33 (110.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
55.0 (41.0) |
| Rated Engine Speed, rpm |
2300 |
| Maximum Torque, Nm (lb-ft) |
240 (177) |
| Torque Speed, rpm |
1500 |
| Fuel System |
Common rail direct injection |
| Emission Level |
Tier 4B |
| Fuel Tank Capacity, gal (L) |
23.8 (90.0) |
| Oil Capacity, qts (L) |
10.1 (9.5) |
| Coolant Capacity, qts (L) |
14.8 (14.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
120 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
46.0 (34.1) |
| PTO Speed, rpm |
540/540E |
| PTO / Engine Speed, rpm |
540/1958 |
| PTO / Engine Speed, rpm |
540E/1592 |
| Transmission Type |
Synchro Shuttle |
| Gearbox Type |
12F/12R (20F/20R w/creeper), mechanical shuttle shift |
| Number of Forward Gears |
12 (20) |
| Number of Reverse Gears |
12 (20) |
| Synchronized Gears |
4 |
| Non-synchronized Ranges |
3 |
| Maximum Speed, mph (kph) |
18.8 (30.0) |
| Minimum Speed (Creeper), mph (kph) |
0.06 (0.1) |
| Transmission Type |
Power Shuttle |
| Gearbox Type |
12F/12R (20F/20R w/creeper), hydraulic shuttle shift |
| Number of Forward Gears |
12 (20) |
| Number of Reverse Gears |
12 (20) |
| Synchronized Gears |
4 |
| Non-synchronized Ranges |
3 |
| Maximum Speed, mph (kph) |
18.8 (30.0) |
| Minimum Speed (Creeper), mph (kph) |
0.06 (0.1) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (2WD) |
7.50x16 |
| Rear Tire Size (2WD) |
14.9x28 |
| Front Tire Size (4WD) |
11.2x24 |
| Rear Tire Size (4WD) |
16.9x30 |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Dual gear |
| Implement Pump Flow, gpm (Lpm) |
12.5 (47.5) |
| Steering Pump Flow, gpm (Lpm) |
7.3 (27.5) |
| Number of Standard Remote Valves |
2/3 |
| 3-Point Hitch Category |
2/1 |
| Draft Sensing or Lift Control |
Mechanical draft control |
| Standard Lift Capacity at 24" (610mm) behind pin, lb (kg) |
3665 (1660) |
| Standard Lift Capacity at pin, lb (kg) |
4885 (2215) |
| Wheelbase (2WD), in (mm) |
85.8 (2180) |
| Wheelbase (4WD), in (mm) |
83.8 (2130) |
| Length, in (mm) |
152.7 (3880) |
| Height (ROPS), in (mm) |
101.3 (2575) |
| Height (Cab), in (mm) |
94.9 (2410) |
| Overall Width, in (mm) |
69.3 (1760) |
| Ground Clearance, in (mm) |
13 (330) |
| Turning Radius (2WD), in (mm) |
145.6 (3700) |
| Turning Radius (4WD), in (mm) |
149.6 (3800) |
| Weight (2WD, ROPS), lb (kg) |
5015 (2280) |
| Weight (4WD, ROPS), lb (kg) |
5940 (2700) |
| Weight (2WD, Cab), lb (kg) |
5610 (2550) |
| Weight (4WD, Cab), lb (kg) |
6225 (2830) |
