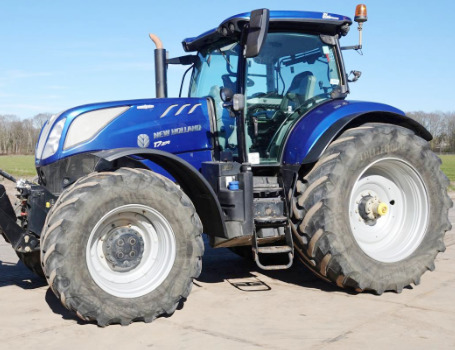

New Holland T7.270 Tractor
The
New Holland T7.270 is a 4x4 (4WD) row-crop tractor from T7-series. This model
was manufactured between 2011 and 2021. The New Holland T7.270 driveline
includes a 410 cu.in (6.7L) FPT NEF 6-cylinder 4-valve direct injection
turbocharged diesel engine and Auto Command continuously variable transmission
(CVT) with infinite forward and reverse gears.
The engine has a cylinder bore of 4.09" (104 mm), piston stroke of 5.20"
(132 mm), maximum power of 270 hp (198 kW), and 1100 Nm (815 lb-ft) of
peak torque at 1500 rpm. The travel speed (maximum/minimum): 31.3 mph
(50 km/h) and 0.18 mph (0.30 km/h). The closed centre load sensing
hydraulic system has a pump with a rated capacity of 39.5 gpm (150 lpm)
or 44.7 gpm (170 lpm) using MegaFlow.
The rear lift capacity is 23010 lbs (10460 kg). The New Holland T7.270
is equipped with a hydrostatic power steering, hydraulic wet disc
brakes, 380/85R34 front tires, and 710/70R38 rear tires. The wheelbase
is 113.6 (2885) for models with 4WD and 117.1 (2975) for models with
Supersteer front axle. The tractor is compatible with a
New Holland
860TL front-end loader with a max lifting height of 176" (4470 mm).
| Engine Model |
FPT NEF |
| Engine Type |
Six-cylinder 4 valve direct injection turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu.in (L) |
410 (6.73) |
| Cylinder Bore, in (mm) |
4.09 (104.0) |
| Piston Stroke, in (mm) |
5.20 (132.0) |
| Aspiration |
Turbocharged |
| Maximum Power, hp (kW) |
270.0 (198.0) |
| Rated Power, hp (kW) |
240.0 (177.0) |
| Rated Speed, rpm |
2200 |
| Maximum Torque, Nm (lb-ft) |
1100 (815) |
| Torque Speed, rpm |
1500 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
High pressure common rail |
| Fuel System Control |
Electronic |
| Emission Level |
Tier 4B |
| Emission Control |
Selective catalytic reduction (SCR) |
| Fuel Tank Capacity, gal (L) |
104.0 (395.0) |
| Oil Capacity, qts (L) |
16.0 (15.0) |
| Coolant Capacity, qts (L) |
23.9 (22.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
150 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
210.0 (156.5) |
| PTO Clutch |
Electro-hydraulic |
| PTO Speed, rpm |
540/1000 |
| PTO Speed, rpm |
540E/1000 |
| PTO Speed, rpm |
1000/1000E |
| PTO Speed, rpm |
540/540E/1000/1000E |
| PTO / Engine Speed, rpm |
540/1893 |
| PTO / Engine Speed, rpm |
540E/1569 |
| PTO / Engine Speed, rpm |
1000/1950 |
| PTO / Engine Speed, rpm |
1000E/1700 |
| Transmission Model |
Auto Command |
| Transmission Type |
Continuously variable transmission (CVT) |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Driving Modes |
Auto, Cruise, Manual, PTO |
| Maximum Speed, mph (kph) |
31.3 (50.0) |
| Minimum Speed, mph (kph) |
0.18 (0.30) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Column |
Tilting and telescopic |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size |
380/85R34 |
| Rear Tire Size |
710/70R38 |
| Hydraulic System Type |
Closed Centre Load Sensing (CCLS) |
| Implement Pump Flow (Standard), gpm (Lpm) |
39.5 (150.0) |
| Implement Pump Flow (MegaFlow), gpm (Lpm) |
44.7 (170.0) |
| Number of Standard Remote Valves |
5 |
| 3-Point Hitch Category |
3/2 |
| Draft Sensing or Lift Control |
Electronic draft control |
| Lift Capacity at Pin, lb (kg) |
23010 (10460) |
| Lift Capacity at 24" (610mm) behind Pin, lb (kg) |
20380 (9265) |
| Wheelbase (4WD), in (mm) |
113.6 (2885) |
| Wheelbase (Supersteer), in (mm) |
117.1 (2975) |
| Length, in (mm) |
227.2 (5770) |
| Height (Cab), in (mm) |
124.6 (3165) |
| Overall Width, in (mm) |
97.2 (2470) |
| Ground Clearance, in (mm) |
20.6 (523) |
| Turning Radius (4WD), in (mm) |
240.2 (6100) |
| Turning Radius (Supersteer), in (mm) |
224.6 (5705) |
| Shipping Weight, lb (kg) |
17910 (8140) |
| Maximum Weight, lb (kg) |
30800 (14000) |
