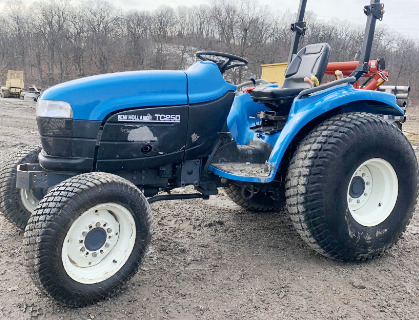

New Holland TC25D Tractor
The
New Holland TC25D is a 4WD (4x4) compact utility tractor. This model was
manufactured from 1999 to 2003. The New Holland TC25D driveline system
components: 91.3 cu.in (1.5L) Shibaura N843 3-cylinder in-line overhead valve
naturally aspirated water-cooled diesel engine and hydrostatic transmission with
infinite forward and reverse gears.
The engine has a cylinder bore of 3.32" (84 mm), piston stroke of 3.56"
(90 mm), and rated power of 25 Hp (18.6 kW). Max travel speed (forward
and reverse): 9.4 mph (15.1 km/h) / 9 mph (14.5 km/h). The open center
hydraulic system includes a gear pump with a rated capacity of 7.1 gpm
(26.8 lpm). The rear lift capacity is 1635 lbs (742 kg) at 24" (600mm)
behind pin.
The New Holland TC25D is equipped with a hydrostatic power steering, wet
disc brakes, 23x8.50-14 or 25x8.50-14 front tires, and 13.6x16 or
15x19.5 rear tires. The wheelbase is 63.5" (1620 mm) for models with 4WD
and 72" (1820 mm) for models with Supersteer front axle. The tractor is
compatible with a New Holland 7308 loader with lift capacity to maximum
height of 875 lbs (396 kg).
| Engine Model |
Shibaura N843 |
| Engine Type |
Diesel, four cycle, water-cooled, in-line overhead valve |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
91,3 (1,49) |
| Engine Bore, in (mm) |
3,32 (84,0) |
| Engine Stroke, in (mm) |
3,56 (90,0) |
| Rated Engine Power, hp (kW) |
25,0 (18,6) |
| Maximum Engine Power, hp (kW) |
30,0 (22,4) |
| Rated Engine Speed, rpm |
2800 |
| Aspiration |
Naturally aspirated |
| Compression Ratio |
22.5:1 |
| Firing Order |
1-2-3 |
| Fuel Pump Type |
In-Line |
| Combustion Type |
Swirl chamber |
| Fuel Tank Capacity, gal (L) |
7,3 (27,6) |
| Oil Capacity, qts (L) |
5,2 (4,9) |
| Coolant Capacity, qts (L) |
2,9 (2,7) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Battery Rating, (V-A) |
12-55 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
20,3 (15,1) |
| Rear PTO Speed, rpm |
540 |
| Mid-PTO Speed, rpm |
2000 |
| Transmission Type |
Hydrostatic (HST) |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
9,4 (15,1) |
| Maximum Reverse Speed, mph (kph) |
9,0 (14,5) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet Disc |
| Front Tire Size (Std) |
23x8.50-14 |
| Rear Tire Size (Std) |
13.6x16 |
| Front Tire Size (Opt) |
25x8.50-14 |
| Rear Tire Size (Opt) |
15x19.5 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
7,1 (26,8) |
| Steering Pump Flow, gpm (Lpm) |
5,1 (19,3) |
| Total Flow, gpm (Lpm) |
12,4 (47,0) |
| Number of Standard Remote Valves |
2 |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity 24" (600mm) behind pin, lb (kg) |
1635 (742) |
| Wheelbase (4WD), in (mm) |
63,5 (1620) |
| Wheelbase (SuperSteer), in (mm) |
72,0 (1820) |
| Length (SuperSteer), in (mm) |
115,3 (2920) |
| Length (Std), in (mm) |
106,2 (2690) |
| Height, in (mm) |
87,8 (2230) |
| Overall Width, in (mm) |
54,3 (1370) |
| Ground Clearance, in (mm) |
14 (350) |
| Front Tread, in (mm) |
43,4 (1100) |
| Rear Tread, in (mm) |
42,8 (1080) |
| Weight (SuperSteer), lb (kg) |
2590 (1175) |
| Weight (Std), lb (kg) |
2475 (1120) |
