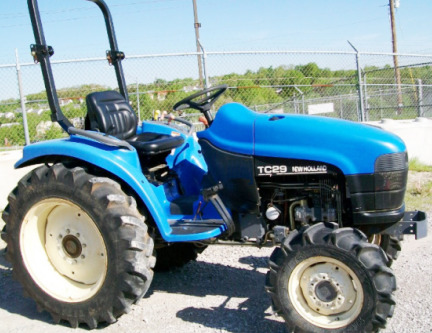

New Holland TC29 Tractor
The
New Holland TC29 is a 2-wheel drive or 4-wheel drive compact utility tractor
from Boomer TC-series. This model was manufactured between 1999 and 2003. The
New Holland TC29 tractor is equipped with a 91.3 cubic inches (1.5 L) Shibaura
N843 4-cycle 3-cylinder water-cooled diesel engine with a rated power of 30 hp
(22.4 kW).
The mechanical transmission includes a single plate dry clutch and
sliding mesh gearbox with 9 forward and 3 reverse gears. Max forward
speed - 12.8 mph (20.5 kph), max reverse speed - 7.8 mph (12.5 kph). The
open center hydraulic system includes a gear pump with a flow of 6.1
gallons per minute (23.1 liters per minute). The main relief pressure is
147 bar (2135 psi).
The 2WD models are equipped with 5.50x16 front tires and 11.2x24 rear
tires. The 23x8.50-14 front tires and 13.6x16 rear tires are used for
4WD tractors. The wheelbase is 63" (1600 mm). The New Holland TC29 is
compatible with the following attachments: 60" or 72" mid-mount mower
decks, 60" front-mount snowblower, 78" front blade, and
New Holland 7308
loader with a max lift height of 100.5" (2550 mm).
| Engine Model |
Shibaura N843 |
| Engine Type |
Diesel, four cycle, water-cooled, in-line overhead valve |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
91,3 (1,49) |
| Engine Bore, in (mm) |
3,32 (84,0) |
| Engine Stroke, in (mm) |
3,56 (90,0) |
| Rated Engine Power, hp (kW) |
30,0 (22,4) |
| Maximum Engine Power, hp (kW) |
34,5 (25,8) |
| Rated Engine Speed, rpm |
2800 |
| Compression Ratio |
22.5:1 |
| Firing Order |
1-2-3 |
| Fuel Pump Type |
In-Line |
| Combustion Type |
Swirl chamber |
| Fuel Tank Capacity, gal (L) |
7,3 (27,6) |
| Oil Capacity, qts (L) |
5,2 (4,9) |
| Coolant Capacity, qts (L) |
2,9 (2,7) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Battery Rating, (V-A) |
12-55 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
25,3 (18,6) |
| Rear PTO Speed, rpm |
540 |
| Mid-PTO Speed, rpm |
2000 |
| Transmission Type |
Gear |
| Gearbox Type |
9F/3R |
| Number of Forward Gears |
9 |
| Number of Reverse Gears |
3 |
| Maximum Forward Speed, mph (kph) |
12,8 (20,5) |
| Maximum Reverse Speed, mph (kph) |
9,1 (14,5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet Disc |
| Front Tire Size (2WD) |
5.50x16 |
| Rear Tire Size (2WD) |
11.2x24 |
| Front Tire Size (4WD) |
23x8.50-14 |
| Rear Tire Size (4WD) |
13.6x16 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
6,1 (23,1) |
| Steering Pump Flow, gpm (Lpm) |
3,5 (13,2) |
| Total Flow, gpm (Lpm) |
9,7 (37,0) |
| Hydraulic Pressure, Bar (psi) |
147 (2135) |
| Number of Standard Remote Valves |
2 |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity 24-in (600mm) behind pin, lb (kg) |
1635 (742) |
| Wheelbase, in (mm) |
63 (1600) |
| Length (2WD), in (mm) |
106,6 (2700) |
| Length (4WD), in (mm) |
106,2 (2690) |
| Height, in (mm) |
87,8 (2230) |
| Overall Width, in (mm) |
54,3 (1370) |
| Ground Clearance, in (mm) |
14 (350) |
| Front Tread, in (mm) |
43,4 (1100) |
| Rear Tread, in (mm) |
42,8 (1080) |
| Weight, lb (kg) |
2475 (1120) |
