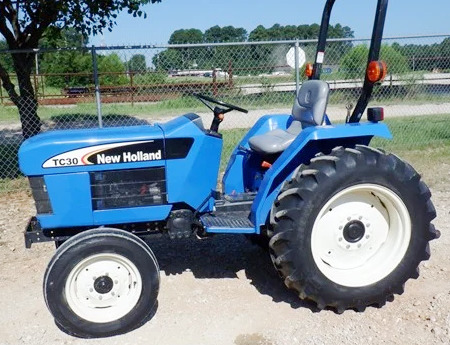

New Holland TC30 Tractor
The
New Holland TC30 is a two-wheel drive or four wheel drive compact utility
tractor. This model was manufactured between 2001 and 2008. The New Holland TC30
tractor is powered by Shibaura N843 4-cycle 3-cylinder naturally aspirated
water-cooled diesel engine with a max power of 30 hp (22.4 kW) and 220 Nm of
peak torque at 1830 rpm.
The New Holland TC30 is fitted with two transmission options: manual
transmission with 9 forward and 3 reverse gears, or hydrostatic
transmission with infinite forward and reverse gears. The maximum
forward speed - 13.6 mph (21.9 km/h), max. reverse speed - 12 mph (19.2
km/h). The open center hydraulic system used a gear pump with a flow
rate of 6.2 gal/min (23.1 l/min). The main relief pressure is 147 bar
(2135 psi).
The 2WD models are equipped with 7.4x14 front tyres and 11.2x24 rear
tyres. The 24x8.50-14 front tyres and 13.6-16 rear tyres fit 4WD
tractors. The wheelbase is 63" (1600 mm). The tractor is compatible with
a New Holland 7308 loader with a lift capacity to full height of 875 lbs
(396 kg) and breakout force of 1602 lbs (726 kg).
| Engine Model |
Shibaura N843 |
| Engine Type |
Water-Cooled 4-Cycle Vertical Diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
91,3 (1,5) |
| Engine Bore, in (mm) |
3,31 (84,0) |
| Engine Stroke, in (mm) |
3,54 (90,0) |
| Aspiration |
Natural |
| Maximum Engine Power, hp (kW) |
30.0 (22.4) |
| Rated Engine Speed, rpm |
2600 |
| Compression |
22.2:1 |
| Combustion Chamber Type |
Swirl-chamber type |
| Injection Pump Type |
Bosch |
| Injection Nozzle |
Throttle type |
| Lubricating System |
Trochoid pump forced pressure feeding |
| Oil Filter |
Cartridge full-flow type |
| Cooling System |
Forced circulation water cooling type |
| Fuel Tank Capacity, gal (L) |
7.1 (27) |
| Oil Capacity, qts (L) |
5.2 (5.0) |
| Coolant Capacity, qts (L) |
5.2 (5.0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Starting motor, kW |
1,7 |
| Rear PTO Operational Type (2WD) |
Transmission-driven |
| Rear PTO Operational Type (FWD) |
Live |
| Rear PTO Operational Type (Hydro) |
Live |
| Rear PTO Horsepower (2WD/FWD), hp (kW) |
25,5 (19,0) |
| Rear PTO Horsepower (Hydro), hp (kW) |
24,0 (17,9) |
| Rear PTO Speeds, rpm |
540 |
| Mid PTO (Optional) |
Transmission-driven |
| Mid PTO Speeds, rpm |
2000 |
| Transmission Type |
Gear |
| Gearbox Type |
9F/3R |
| Number of Forward Gears |
9 |
| Number of Reverse Gears |
3 |
| Maximum Forward Speed, mph (kph) |
12,8 (20,5) |
| Maximum Reverse Speed, mph (kph) |
9,1 (14,5) |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite (3 range) |
| Number of Reverse Gears |
Infinite (3 range) |
| Maximum Speed (Forward), mph (kph) |
13,6 (21,9) |
| Maximum Speed (Reverse), mph (kph) |
12,0 (19,2) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Service Brake |
Wet Disc |
| Front Tire Size (2WD) |
7.4x14 |
| Rear Tire Size (2WD) |
11.2x24 |
| Front Tire Size (4WD) |
24x8.50-14 |
| Rear Tire Size (4WD) |
13.6-16 |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
6,2 (23,1) |
| Steering Pump Flow, gpm (Lpm) |
3,5 (13,2) |
| Total Flow, gpm (Lpm) |
9,8 (36,3) |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity 24 Inches behind pin, lb (kg) |
1635 (741) |
| Wheelbase, in (mm) |
63,0 (1600) |
| Length, in (mm) |
111,4 (2830) |
| Height, in (mm) |
82,3 (2090) |
| Overall Width, in (mm) |
62,0 (1575) |
| Weight, lb (kg) |
2385 (1082) |
