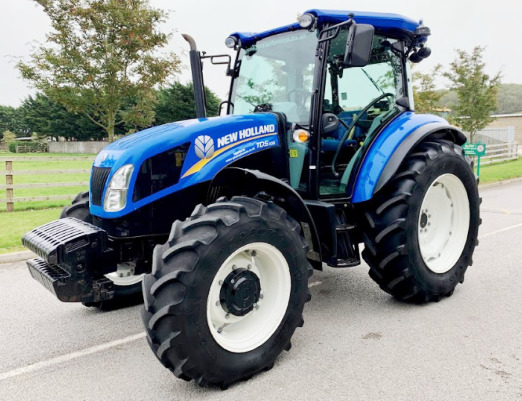

New Holland TD5.105 Tractor
The
New Holland TD5.105 is a 4-wheel drive farm tractor from TD5 series. This model
was manufactured between 2012 to 2019. The New Holland TD5.105 powertrain system
components: NEF FPT 4-cylinder direct injection turbocharged air-cooled diesel
engine and hydraulic powershuttle transmission with 12 forward and 12 reverse
gears.
A 275 cubic inches (4.5L) engine has a cylinder bore of 4.1" (104 mm),
piston stroke of 5.2" (132 mm), max power of 104.6 hp (78 kW), and
maximum torque of 425 Nm (314.5 lb-ft) at 1300 rpm. Max. forward speed -
24.9 mph (40 kph), max. reverse speed - 24.7 mph (39.7 kph). The
hydraulic system used a fixed displacement pump with rated fluid flow of
13.2 gpm (50 lpm).
The New Holland TD5.105 is equipped with a electro-hydraulic steering
system, hydraulic disc brakes, 13.6 R28 front tires, and 16.9 R38 rear
tires. The wheel base is 95.4" (2422 mm). The tractor is compatible with
a New Holland 530TL front-end loader with lift capacity to maximum
height of 4173 lbs (1897 kg), or New Holland 730TL front-end loader with
lift capacity to maximum height of 4530 lbs (2055 kg).
| Engine Model |
NEF FPT |
| Engine Type |
4 stroke direct injection diesel |
| Number of Cylinders |
Four |
| Displacement, cu in (L) |
275,0 (4,5) |
| Engine Bore, in (mm) |
4,1 (104,0) |
| Engine Stroke, in (mm) |
5,2 (132,0) |
| Aspiration |
Turbocharged |
| Intercooled |
Air cooled |
| Maximum Engine Power, hp (kW) |
104,6 (78,0) |
| Rated Engine Speed, rpm |
2300 |
| Maximum Torque, Nm (ft-lbs) |
425 (314,5) |
| Torque Speed, rpm |
1300 |
| Fuel Injection to combustion chamber |
Direct injection |
| Fuel Tank Capacity, gal (L) |
29,1 (110,0) |
| Electrical System Rating, Volts |
14 |
| Alternator Rating, Amps |
120 |
| Batteries Power, Ah |
120 |
| PTO Speeds, rpm |
540 |
| PTO / Engine Speeds, rpm |
540/2200 |
| PTO Speeds, rpm |
540E |
| PTO / Engine Speeds, rpm |
540/1535 |
| PTO Speeds, rpm |
1000 |
| PTO / Engine Speeds, rpm |
1000/2261 |
| Transmission Type |
Hydraulic Powershuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Maximum Speed (Forward), mph (kph) |
24.9 (40.0) |
| Maximum Speed (Reverse), mph (kph) |
24.7 (39.7) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Electro-hydraulic |
| Service Brake |
Hydraulic disc |
| Front Tire Size |
13.6 R28 |
| Rear Tire Size |
16.9 R38 |
| Implement Pump Type |
Fixed displacement pump |
| Implement Pump Flow, gpm (Lpm) |
13,2 (50,0) |
| Steering Pump Flow, gpm (Lpm) |
7,7 (29,0) |
| Number of Standard Remote Valves |
3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Mechanical Draft Control |
| Standard Lift Capacity 610mm behind pin, lb (kg) |
5940 (2700) |
| Standard Lift Capacity at lift pin, lb (kg) |
7840 (3565) |
| Wheelbase, in (mm) |
95,4 (2422) |
| Length, in (mm) |
169 (4290) |
| Height, in (mm) |
106 (2690) |
| Overall Width, in (mm) |
76 (1920) |
| Ground Clearance, in (mm) |
19 (492) |
| Turning Radius, in (mm) |
220 (5580) |
| Steering Angle, degrees |
40 |
| Operating Weight, lb (kg) |
8580 (3900) |
| Total Weight, lb (kg) |
14300 (6500) |
