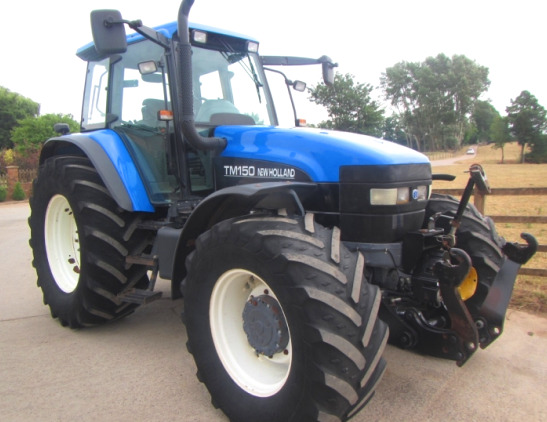

New Holland TM150 Tractor
The
New Holland TM150 row crop tractor was manufactured from 2000 to 2002. The New
Holland TM150 tractor is powered by 456 cu.in (7.5L) Ford 675-WV 3-cylinder
direct injection turbocharged diesel engine with max output power of 149.1 Hp
(111 kW) and 649 Nm (480.3 lb-ft) of peak torque at 1400 rev/min.
The New Holland TM150 is fitted with 2 types of transmission. 1st type:
Range Command powershift transmission with 18 forward and 6 reverse
gears. 2nd type: Dual Command two-speed powershift transmission with 24
forward and 12 reverse gears.
The maximum forward speed - 25.3 mph (40.7 km/h), max reverse speed -
18.1 mph (29.1 km/h). The closed center load sensing hydraulic system
used a piston pump with rated capacity of 28 gpm (106 lpm). The
hydraulic system pressure is 190 bar (2750 psi). The New Holland TM150
was equipped with a power steering system, hydraulic wet disc brakes,
16.9R28 front tires, and 20.8R38 rear tires.
The wheel base is 108.1" (2740 mm) for models with 2WD, 107.2" (2720 mm)
for models with 4WD, 113.4" (2880 mm) for models with SuperSteer axle,
and 109.6" (2780 mm) for models with Terraglide axle. Compatible
attachments for the tractor: a New Holland 72LA front-end loader with
lift capacity to full height of 4900 lbs (2220 kg), and
New Holland
850TL NSL/MSL front-end loader with lift capacity to maximum height of
6050 lbs (2744 kg) or 5350 lbs (2427 kg).
| Engine Model |
Ford 675-WV |
| Engine Type |
4 stroke direct injection turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
456 (7,486) |
| Engine Bore, in (mm) |
4,4 (111,8) |
| Engine Stroke, in (mm) |
5,0 (127,0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
149,1 (111,0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
649 (480,3) |
| Torque Speed, rpm |
1400 |
| Compression |
17.5:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel Injection to combustion chamber |
Direct injection |
| Fuel Tank Capacity, gal (L) |
85,2 (321,0) |
| Oil Capacity, qts (L) |
20,0 (18,9) |
| Coolant Capacity, qts (L) |
26,9 (25,5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
120 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
120,0 (89,5) |
| PTO Speeds (Std), rpm |
540/1000 |
| PTO Speeds (Opt), rpm |
540/540E/1000 |
| PTO / Engine Speeds, rpm |
540/1970 |
| PTO / Engine Speeds, rpm |
540E/1546 |
| PTO / Engine Speeds, rpm |
1000/2120 |
| Transmission Type |
Range Command |
| Gearbox Type |
18F/6R, Power shift |
| Number of Forward Gears |
18 |
| Number of Reverse Gears |
6 |
| Clutch Type |
Electro-hydraulic wet disc |
| Maximum Forward Speed, mph (kph) |
25,3 (40,7) |
| Maximum Reverse Speed, mph (kph) |
7,5 (12,1) |
| Transmission Type |
Dual Command |
| Gearbox Type |
24F/12R, Two-speed power shift |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
12 |
| Maximum Forward Speed, mph (kph) |
23,7 (38,1) |
| Maximum Reverse Speed, mph (kph) |
18,1 (29,1) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power |
| Service Brake |
Hydraulic wet disc |
| Front Tire Size |
16.9 R28 |
| Rear Tire Size |
20.8 R38 |
| Hydraulic System Type |
Closed center load sensing |
| Implement Pump Flow, gpm (Lpm) |
28,0 (106,0) |
| Steering Pump Flow, gpm (Lpm) |
16,4 (62,1) |
| Hydraulic Pressure, Bar (psi) |
190 (2750) |
| Hydraulic Capacity, gal (L) |
26,5 (100,3) |
| Number of Standard Remote Valves |
4 Rear / 4 Mid |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Electronic lower-link draft sensing |
| Standard Lift Capacity 24" (0,6m) behind pin, lb (kg) |
7208 (3269) |
| Standard Lift Capacity at lift pin, lb (kg) |
11700 (5300) |
| Wheelbase (2WD), in (mm) |
108,1 (2740) |
| Wheelbase (4WD), in (mm) |
107,2 (2720) |
| Wheelbase (SuperSteer), in (mm) |
113,4 (2880) |
| Wheelbase (Terraglide), in (mm) |
109,6 (2780) |
| Length (2WD), in (mm) |
180,5 (4580) |
| Length (4WD), in (mm) |
185,7 (4710) |
| Length (SuperSteer), in (mm) |
188,1 (4770) |
| Length (Terraglide), in (mm) |
191,9 (4870) |
| Height, in (mm) |
117.8 (2990) |
| Overall Width, in (mm) |
79,2 (2010) |
| Ground Clearance, in (mm) |
16,2 (410) |
| Front Tread (2WD), in (mm) |
60,8 to 86,1 (1540 to 2180) |
| Front Tread (4WD), in (mm) |
61,1 to 89,3 (1550 to 2260) |
| Rear Tread, in (mm) |
60,9 to 100,5 (1540 to 2550) |
| Weight (2WD), lb (kg) |
10480 (4755) |
| Weight (4WD), lb (kg) |
11575 (5250) |
